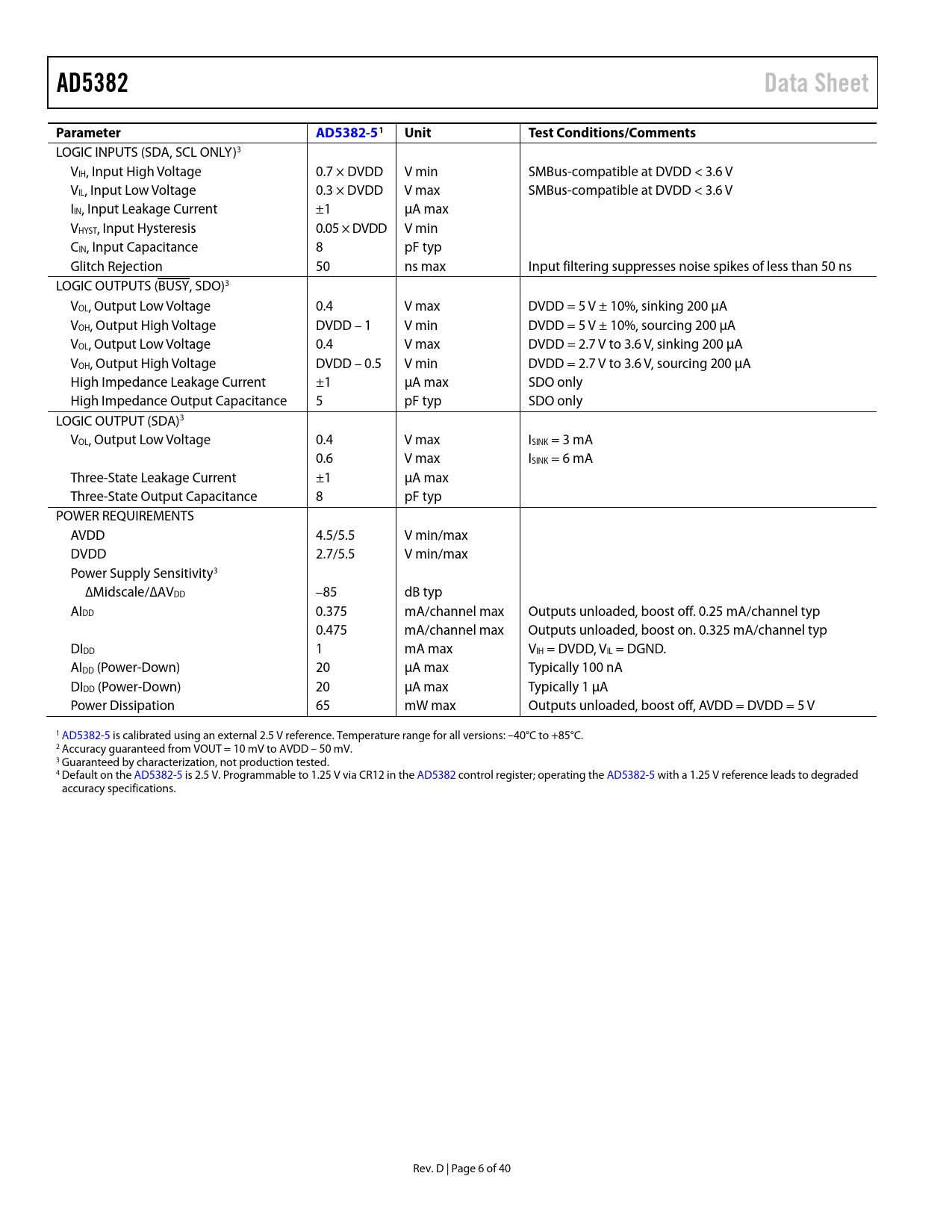

AD5382 Data Sheet Parameter AD5382-51 Unit Test Conditions/Comments
LOGIC INPUTS (SDA, SCL ONLY)3 VIH, Input High Voltage 0.7 × DVDD V min SMBus-compatible at DVDD < 3.6 V VIL, Input Low Voltage 0.3 × DVDD V max SMBus-compatible at DVDD < 3.6 V IIN, Input Leakage Current ±1 µA max VHYST, Input Hysteresis 0.05 × DVDD V min CIN, Input Capacitance 8 pF typ Glitch Rejection 50 ns max Input filtering suppresses noise spikes of less than 50 ns LOGIC OUTPUTS (BUSY, SDO)3 VOL, Output Low Voltage 0.4 V max DVDD = 5 V ± 10%, sinking 200 µA VOH, Output High Voltage DVDD – 1 V min DVDD = 5 V ± 10%, sourcing 200 µA VOL, Output Low Voltage 0.4 V max DVDD = 2.7 V to 3.6 V, sinking 200 µA VOH, Output High Voltage DVDD – 0.5 V min DVDD = 2.7 V to 3.6 V, sourcing 200 µA High Impedance Leakage Current ±1 µA max SDO only High Impedance Output Capacitance 5 pF typ SDO only LOGIC OUTPUT (SDA)3 VOL, Output Low Voltage 0.4 V max ISINK = 3 mA 0.6 V max ISINK = 6 mA Three-State Leakage Current ±1 µA max Three-State Output Capacitance 8 pF typ POWER REQUIREMENTS AVDD 4.5/5.5 V min/max DVDD 2.7/5.5 V min/max Power Supply Sensitivity3 ∆Midscale/∆ΑVDD –85 dB typ AIDD 0.375 mA/channel max Outputs unloaded, boost off. 0.25 mA/channel typ 0.475 mA/channel max Outputs unloaded, boost on. 0.325 mA/channel typ DIDD 1 mA max VIH = DVDD, VIL = DGND. AIDD (Power-Down) 20 µA max Typically 100 nA DIDD (Power-Down) 20 µA max Typically 1 µA Power Dissipation 65 mW max Outputs unloaded, boost off, AVDD = DVDD = 5 V 1 AD5382-5 is calibrated using an external 2.5 V reference. Temperature range for all versions: –40°C to +85°C. 2 Accuracy guaranteed from VOUT = 10 mV to AVDD – 50 mV. 3 Guaranteed by characterization, not production tested. 4 Default on the AD5382-5 is 2.5 V. Programmable to 1.25 V via CR12 in the AD5382 control register; operating the AD5382-5 with a 1.25 V reference leads to degraded accuracy specifications. Rev. D | Page 6 of 40 Document Outline Features Integrated Functions Applications Functional Block Diagram Table of Contents Revision History General Description Specifications AD5382-5 Specifications AD5382-3 Specifications AC Characteristics Timing Characteristics SPI-, QSPI-, MICROWIRE-, or DSP-Compatible Serial Interface I2C Serial Interface Parallel Interface Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Typical Performance Characteristics Functional Description DAC Architecture—General Data Decoding On-Chip Special Function Registers (SFR) SFR Commands NOP (No Operation) Write Clear Code Soft Clear Soft Power-Down Soft Power-Up Soft RESET Control Register Write/Read Control Register Contents Channel Monitor Function Hardware Functions Reset Function Asynchronous Clear Function BUSY\ and LDAC\ Functions FIFO Operation in Parallel Mode Power-On Reset Power-Down AD5382 Interfaces DSP-, SPI-, MICROWIRE-Compatible Serial Interfaces Standalone Mode Daisy-Chain Mode Readback Mode I2C Serial Interface I2C Data Transfer Start and Stop Conditions Repeated Start Conditions Acknowledge Bit (ACK) AD5382 Slave Addresses Write Operation 4-Byte Mode 3-Byte Mode 2-Byte Mode Parallel Interface CS\ Pin WR\ Pin REG0, REG1 Pins Pins A4 to A0 Pins DB13 to DB0 Microprocessor Interfacing Parallel Interface AD5382 to MC68HC11 AD5382 to PIC16C6x/7x AD5382 to 8051 AD5382 to ADSP-BF527 Applications Information Power Supply Decoupling Power Supply Sequencing Typical Configuration Circuit Monitor Function Toggle Mode Function Thermal Monitor Function AD5382 in a MEMS-Based Optical Switch Optical Attenuators Outline Dimensions Ordering Guide
