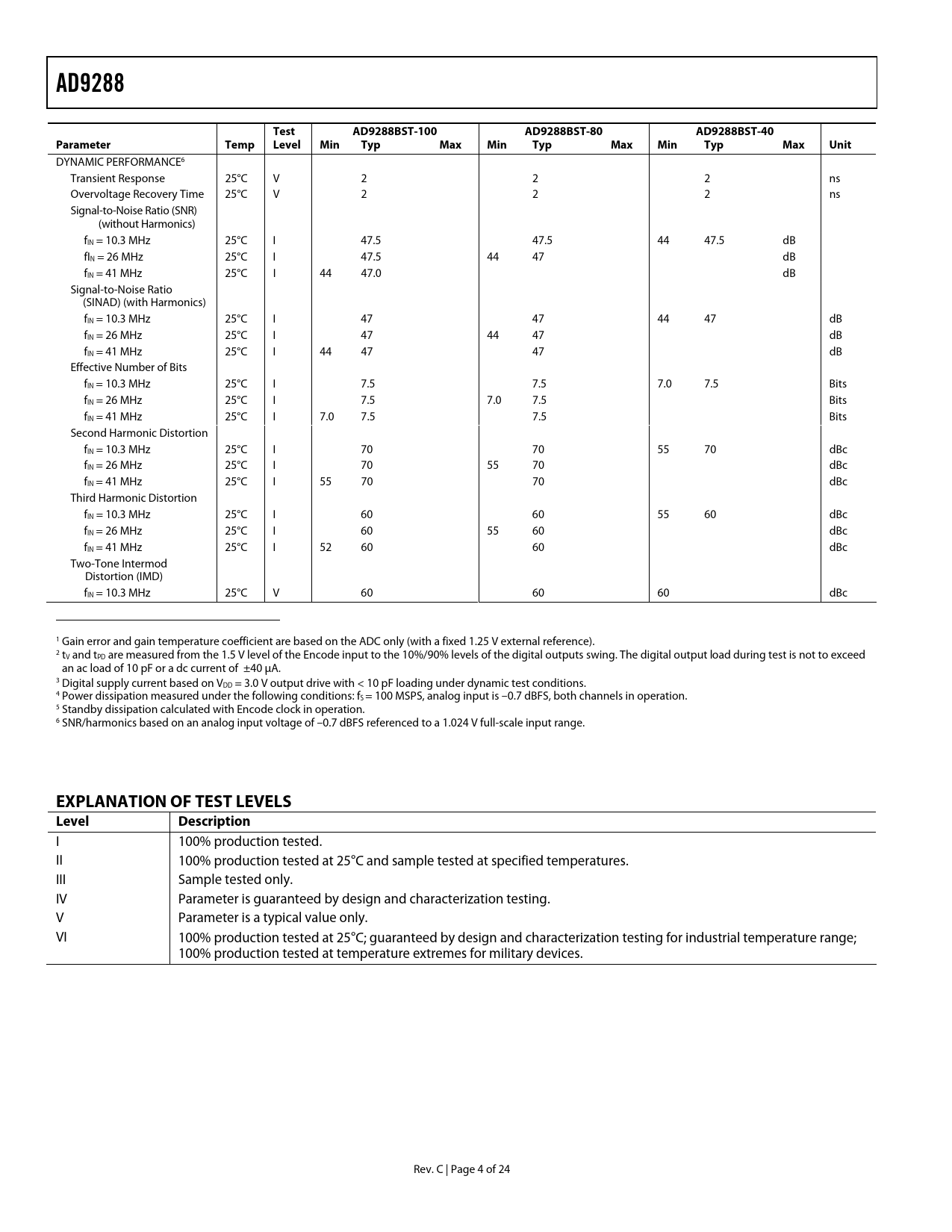

AD9288 Test AD9288BST-100 AD9288BST-80 AD9288BST-40 Parameter Temp Level Min Typ Max Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE6 Transient Response 25°C V 2 2 2 ns Overvoltage Recovery Time 25°C V 2 2 2 ns Signal-to-Noise Ratio (SNR) (without Harmonics) fIN = 10.3 MHz 25°C I 47.5 47.5 44 47.5 dB fIN = 26 MHz 25°C I 47.5 44 47 dB fIN = 41 MHz 25°C I 44 47.0 dB Signal-to-Noise Ratio (SINAD) (with Harmonics) fIN = 10.3 MHz 25°C I 47 47 44 47 dB fIN = 26 MHz 25°C I 47 44 47 dB fIN = 41 MHz 25°C I 44 47 47 dB Effective Number of Bits fIN = 10.3 MHz 25°C I 7.5 7.5 7.0 7.5 Bits fIN = 26 MHz 25°C I 7.5 7.0 7.5 Bits fIN = 41 MHz 25°C I 7.0 7.5 7.5 Bits Second Harmonic Distortion fIN = 10.3 MHz 25°C I 70 70 55 70 dBc fIN = 26 MHz 25°C I 70 55 70 dBc fIN = 41 MHz 25°C I 55 70 70 dBc Third Harmonic Distortion fIN = 10.3 MHz 25°C I 60 60 55 60 dBc fIN = 26 MHz 25°C I 60 55 60 dBc fIN = 41 MHz 25°C I 52 60 60 dBc Two-Tone Intermod Distortion (IMD) fIN = 10.3 MHz 25°C V 60 60 60 dBc 1 Gain error and gain temperature coefficient are based on the ADC only (with a fixed 1.25 V external reference). 2 tV and tPD are measured from the 1.5 V level of the Encode input to the 10%/90% levels of the digital outputs swing. The digital output load during test is not to exceed an ac load of 10 pF or a dc current of ±40 µA. 3 Digital supply current based on VDD = 3.0 V output drive with < 10 pF loading under dynamic test conditions. 4 Power dissipation measured under the following conditions: fS = 100 MSPS, analog input is –0.7 dBFS, both channels in operation. 5 Standby dissipation calculated with Encode clock in operation. 6 SNR/harmonics based on an analog input voltage of –0.7 dBFS referenced to a 1.024 V full-scale input range.
EXPLANATION OF TEST LEVELS Level Description
I 100% production tested. II 100% production tested at 25°C and sample tested at specified temperatures. III Sample tested only. IV Parameter is guaranteed by design and characterization testing. V Parameter is a typical value only. VI 100% production tested at 25°C; guaranteed by design and characterization testing for industrial temperature range; 100% production tested at temperature extremes for military devices. Rev. C | Page 4 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS EXPLANATION OF TEST LEVELS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION USING THE AD9288 ENCODE INPUT DIGITAL OUTPUTS ANALOG INPUT VOLTAGE REFERENCE TIMING USER-SELECTABLE OPTIONS AD9218/AD9288 CUSTOMER PCB BOM EVALUATION BOARD POWER CONNECTOR ANALOG INPUTS VOLTAGE REFERENCE CLOCKING DATA OUTPUTS DATA FORMAT/GAIN TIMING TROUBLESHOOTING OUTLINE DIMENSIONS ORDERING GUIDE
