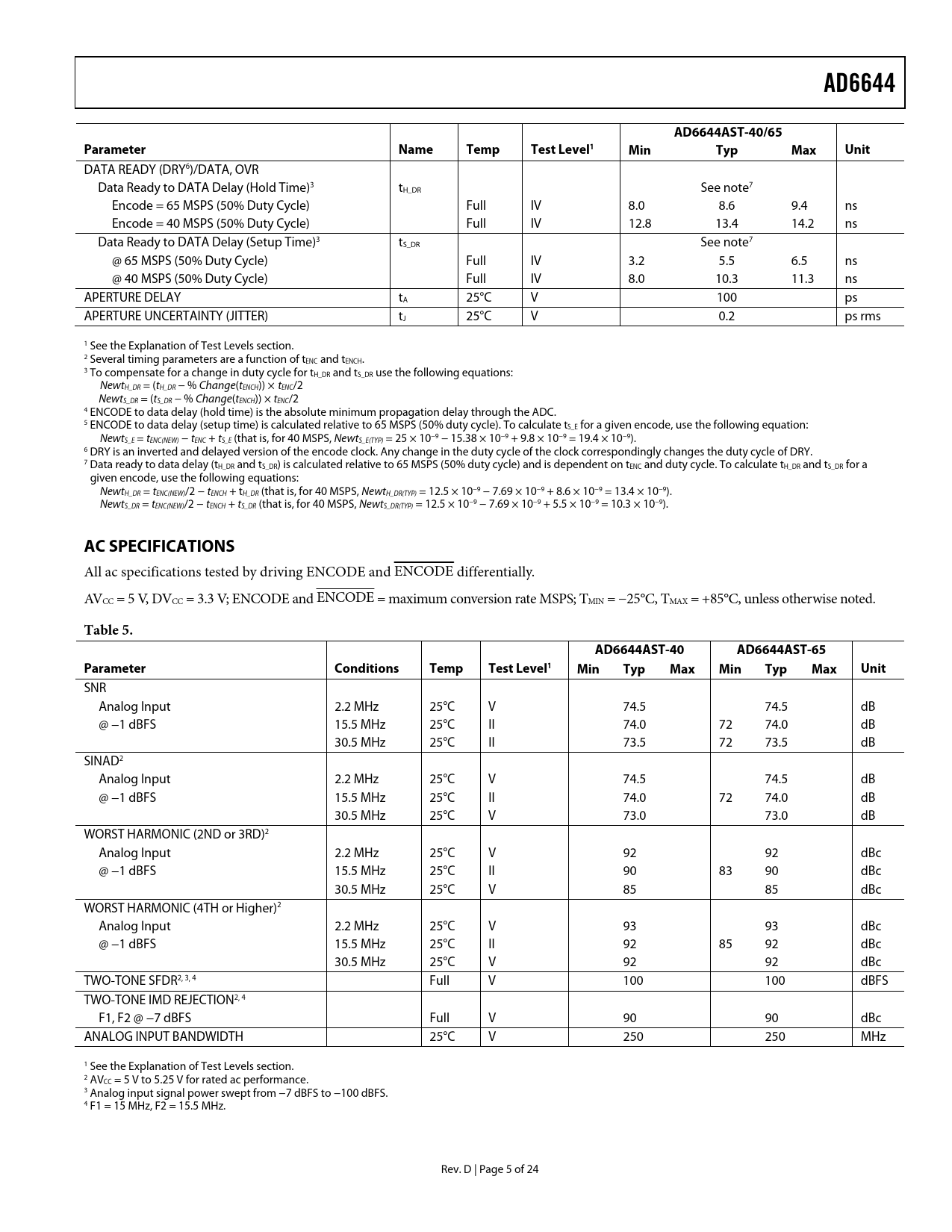

AD6644 AD6644AST-40/65 Parameter Name Temp Test Level1 Min Typ Max Unit
DATA READY (DRY6)/DATA, OVR Data Ready to DATA Delay (Hold Time)3 tH_DR See note7 Encode = 65 MSPS (50% Duty Cycle) Full IV 8.0 8.6 9.4 ns Encode = 40 MSPS (50% Duty Cycle) Full IV 12.8 13.4 14.2 ns Data Ready to DATA Delay (Setup Time)3 tS_DR See note7 @ 65 MSPS (50% Duty Cycle) Full IV 3.2 5.5 6.5 ns @ 40 MSPS (50% Duty Cycle) Full IV 8.0 10.3 11.3 ns APERTURE DELAY tA 25°C V 100 ps APERTURE UNCERTAINTY (JITTER) tJ 25°C V 0.2 ps rms 1 See the Explanation of Test Levels section. 2 Several timing parameters are a function of tENC and tENCH. 3 To compensate for a change in duty cycle for tH_DR and tS_DR use the following equations: NewtH_DR = (tH_DR − % Change(tENCH)) × tENC/2 NewtS_DR = (tS_DR − % Change(tENCH)) × tENC/2 4 ENCODE to data delay (hold time) is the absolute minimum propagation delay through the ADC. 5 ENCODE to data delay (setup time) is calculated relative to 65 MSPS (50% duty cycle). To calculate tS_E for a given encode, use the following equation: NewtS_E = tENC(NEW) − tENC + tS_E (that is, for 40 MSPS, NewtS_E(TYP) = 25 × 10−9 − 15.38 × 10−9 + 9.8 × 10−9 = 19.4 × 10−9). 6 DRY is an inverted and delayed version of the encode clock. Any change in the duty cycle of the clock correspondingly changes the duty cycle of DRY. 7 Data ready to data delay (tH_DR and tS_DR) is calculated relative to 65 MSPS (50% duty cycle) and is dependent on tENC and duty cycle. To calculate tH_DR and tS_DR for a given encode, use the following equations: NewtH_DR = tENC(NEW)/2 − tENCH + tH_DR (that is, for 40 MSPS, NewtH_DR(TYP) = 12.5 × 10−9 − 7.69 × 10−9 + 8.6 × 10−9 = 13.4 × 10−9). NewtS_DR = tENC(NEW)/2 − tENCH + tS_DR (that is, for 40 MSPS, NewtS_DR(TYP) = 12.5 × 10−9 − 7.69 × 10−9 + 5.5 × 10−9 = 10.3 × 10−9).
AC SPECIFICATIONS
All ac specifications tested by driving ENCODE and ENCODE differentially. AVCC = 5 V, DVCC = 3.3 V; ENCODE and ENCODE = maximum conversion rate MSPS; TMIN = −25°C, TMAX = +85°C, unless otherwise noted.
Table 5. AD6644AST-40 AD6644AST-65 Parameter Conditions Temp Test Level1 Min Typ Max Min Typ Max Unit
SNR Analog Input 2.2 MHz 25°C V 74.5 74.5 dB @ −1 dBFS 15.5 MHz 25°C II 74.0 72 74.0 dB 30.5 MHz 25°C II 73.5 72 73.5 dB SINAD2 Analog Input 2.2 MHz 25°C V 74.5 74.5 dB @ −1 dBFS 15.5 MHz 25°C II 74.0 72 74.0 dB 30.5 MHz 25°C V 73.0 73.0 dB WORST HARMONIC (2ND or 3RD)2 Analog Input 2.2 MHz 25°C V 92 92 dBc @ −1 dBFS 15.5 MHz 25°C II 90 83 90 dBc 30.5 MHz 25°C V 85 85 dBc WORST HARMONIC (4TH or Higher)2 Analog Input 2.2 MHz 25°C V 93 93 dBc @ −1 dBFS 15.5 MHz 25°C II 92 85 92 dBc 30.5 MHz 25°C V 92 92 dBc TWO-TONE SFDR2, 3, 4 Full V 100 100 dBFS TWO-TONE IMD REJECTION2, 4 F1, F2 @ −7 dBFS Full V 90 90 dBc ANALOG INPUT BANDWIDTH 25°C V 250 250 MHz 1 See the Explanation of Test Levels section. 2 AVCC = 5 V to 5.25 V for rated ac performance. 3 Analog input signal power swept from −7 dBFS to −100 dBFS. 4 F1 = 15 MHz, F2 = 15.5 MHz. Rev. D | Page 5 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS AC SPECIFICATIONS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS EXPLANATION OF TEST LEVELS Test Level THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EQUIVALENT CIRCUITS TERMINOLOGY THEORY OF OPERATION APPLYING THE AD6644 Encoding the AD6644 Analog Input Power Supplies Digital Outputs Layout Information Jitter Considerations EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
