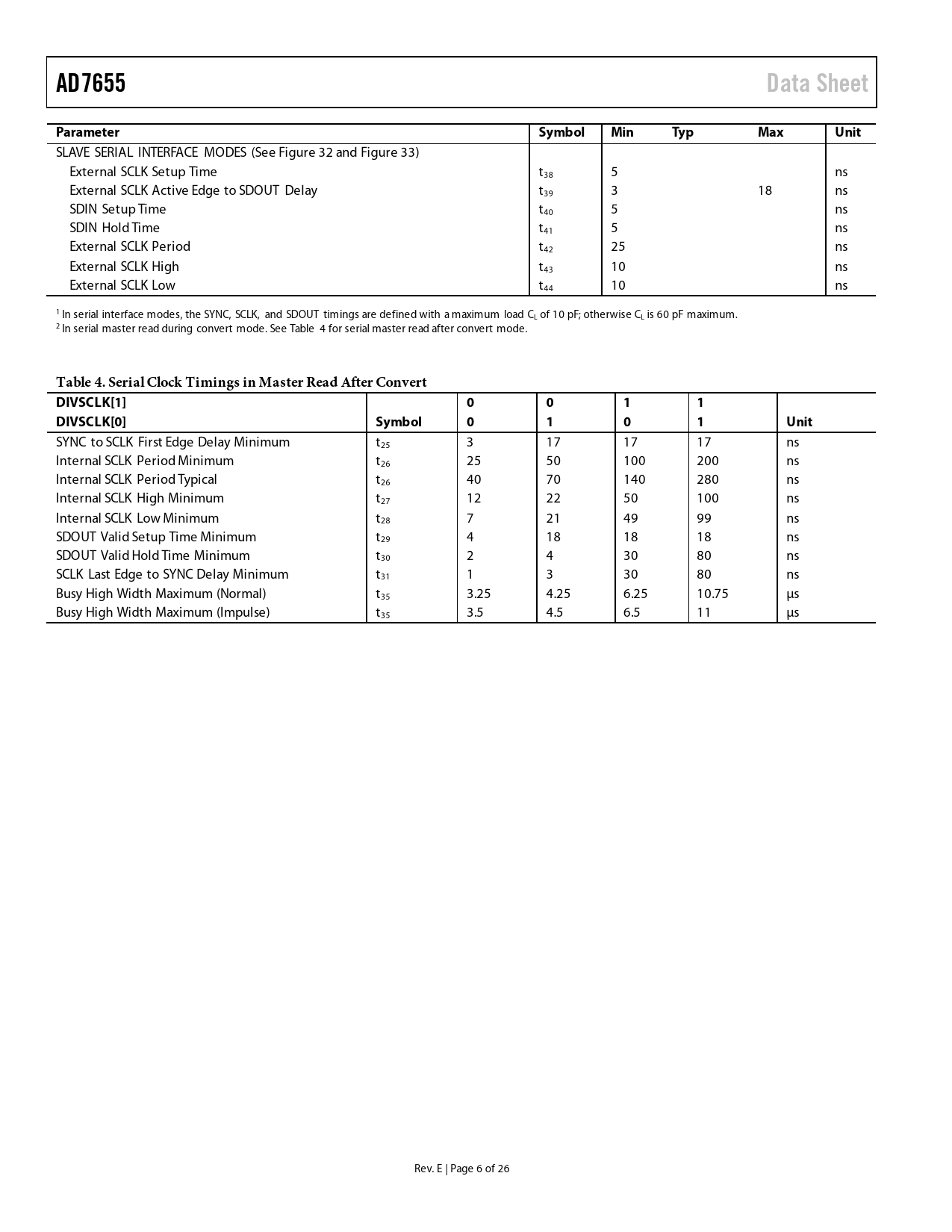

AD7655 Data Sheet Parameter Symbol Min Typ Max Unit
SLAVE SERIAL INTERFACE MODES (See Figure 32 and Figure 33) External SCLK Setup Time t38 5 ns External SCLK Active Edge to SDOUT Delay t39 3 18 ns SDIN Setup Time t40 5 ns SDIN Hold Time t41 5 ns External SCLK Period t42 25 ns External SCLK High t43 10 ns External SCLK Low t44 10 ns 1 In serial interface modes, the SYNC, SCLK, and SDOUT timings are defined with a maximum load CL of 10 pF; otherwise CL is 60 pF maximum. 2 In serial master read during convert mode. See Table 4 for serial master read after convert mode.
Table 4. Serial Clock Timings in Master Read After Convert DIVSCLK[1] 0 0 1 1 DIVSCLK[0] Symbol 0 1 0 1 Unit
SYNC to SCLK First Edge Delay Minimum t25 3 17 17 17 ns Internal SCLK Period Minimum t26 25 50 100 200 ns Internal SCLK Period Typical t26 40 70 140 280 ns Internal SCLK High Minimum t27 12 22 50 100 ns Internal SCLK Low Minimum t28 7 21 49 99 ns SDOUT Valid Setup Time Minimum t29 4 18 18 18 ns SDOUT Valid Hold Time Minimum t30 2 4 30 80 ns SCLK Last Edge to SYNC Delay Minimum t31 1 3 30 80 ns Busy High Width Maximum (Normal) t35 3.25 4.25 6.25 10.75 µs Busy High Width Maximum (Impulse) t35 3.5 4.5 6.5 11 µs Rev. E | Page 6 of 26 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION CIRCUIT INFORMATION MODES OF OPERATION TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAM ANALOG INPUTS INPUT CHANNEL MULTIPLEXER DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE INPUT POWER SUPPLY POWER DISSIPATION CONVERSION CONTROL DIGITAL INTERFACE PARALLEL INTERFACE Master Parallel Interface Slave Parallel Interface 8-Bit Interface (Master or Slave) Channel A/ Output SERIAL INTERFACE MASTER SERIAL INTERFACE Internal Clock SLAVE SERIAL INTERFACE External Clock External Discontinuous Clock Data Read After Convert External Clock Data Read (Previous) During Convert MICROPROCESSOR INTERFACING SPI INTERFACE (ADSP-2191M) APPLICATION HINTS LAYOUT EVALUATING THE AD7655 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
