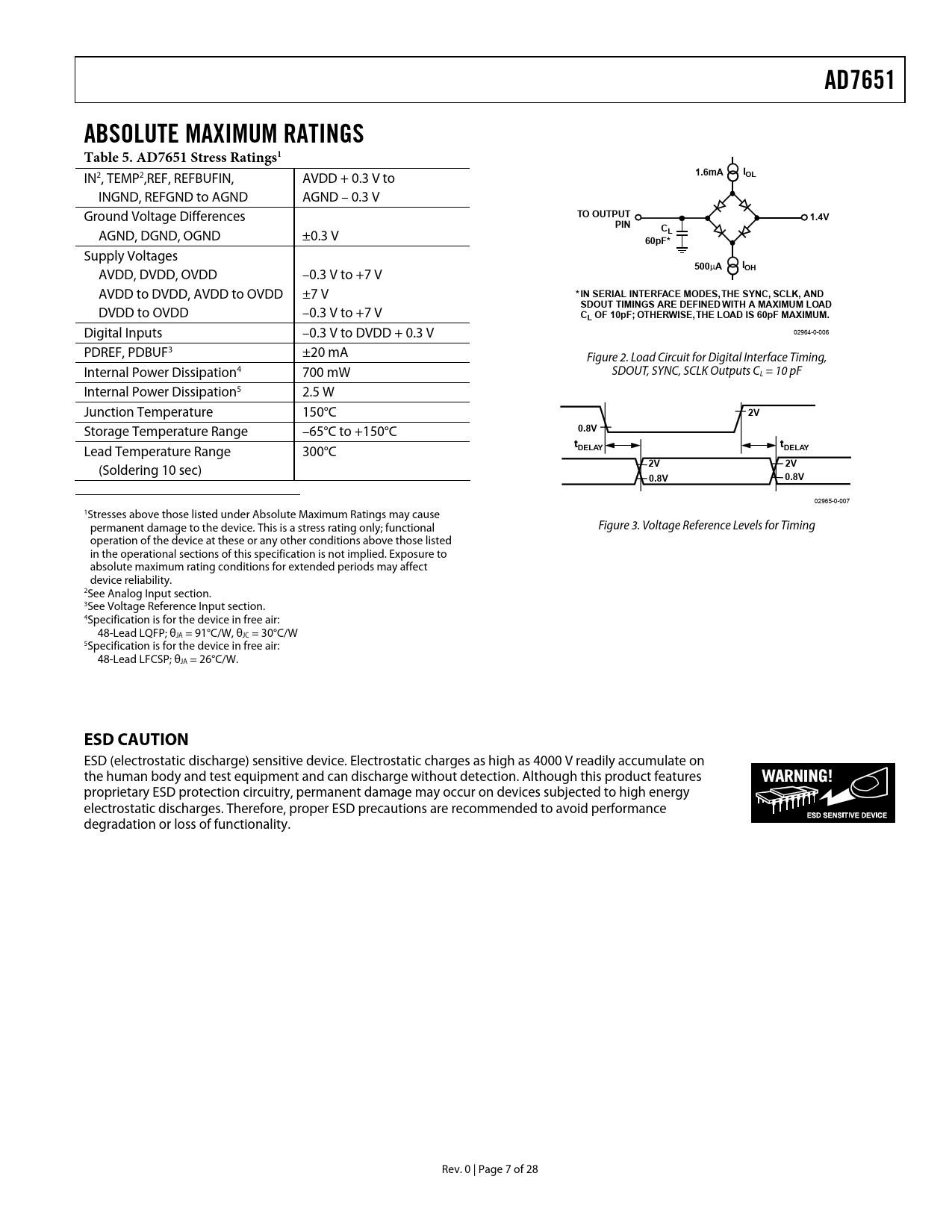

link to page 18 link to page 19 AD7651 ABSOLUTE MAXIMUM RATINGS
Table 5. AD7651 Stress Ratings1 1.6mA I
IN2, TEMP2,REF, REFBUFIN, AVDD + 0.3 V to
OL
INGND, REFGND to AGND AGND – 0.3 V Ground Voltage Differences
TO OUTPUT 1.4V PIN C
AGND, DGND, OGND ±0.3 V
L 60pF*
Supply Voltages
500
µ
A IOH
AVDD, DVDD, OVDD –0.3 V to +7 V AVDD to DVDD, AVDD to OVDD ±7 V
* IN SERIAL INTERFACE MODES,THE SYNC, SCLK, AND SDOUT TIMINGS ARE DEFINED WITH A MAXIMUM LOAD
DVDD to OVDD –0.3 V to +7 V
CL OF 10pF; OTHERWISE,THE LOAD IS 60pF MAXIMUM.
Digital Inputs –0.3 V to DVDD + 0.3 V 02964-0-006 PDREF, PDBUF3 ±20 mA Figure 2. Load Circuit for Digital Interface Timing, Internal Power Dissipation4 700 mW SDOUT, SYNC, SCLK Outputs CL = 10 pF Internal Power Dissipation5 2.5 W Junction Temperature 150°C
2V
Storage Temperature Range –65°C to +150°C
0.8V t t
Lead Temperature Range 300°C
DELAY DELAY 2V 2V
(Soldering 10 sec)
0.8V 0.8V
02965-0-007 1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional Figure 3. Voltage Reference Levels for Timing operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2See Analog In sect put ion. 3See Voltage Reference In sect put ion. 4Specification is for the device in free air: 48-Lead LQFP; θJA = 91°C/W, θJC = 30°C/W 5Specification is for the device in free air: 48-Lead LFCSP; θJA = 26°C/W.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. 0 | Page 7 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION AND FUNCTION DESCRIPTIONS DEFINITIONS OF SPECIFICATIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT INFORMATION CONVERTER OPERATION TYPICAL CONNECTION DIAGRAM POWER DISSIPATION VERSUS THROUGHPUT CONVERSION CONTROL DIGITAL INTERFACE PARALLEL INTERFACE SERIAL INTERFACE MASTER SERIAL INTERFACE SLAVE SERIAL INTERFACE MICROPROCESSOR INTERFACING APPLICATION HINTS BIPOLAR AND WIDER INPUT RANGES LAYOUT EVALUATING THE AD7651’S PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
