AD7934-6. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7

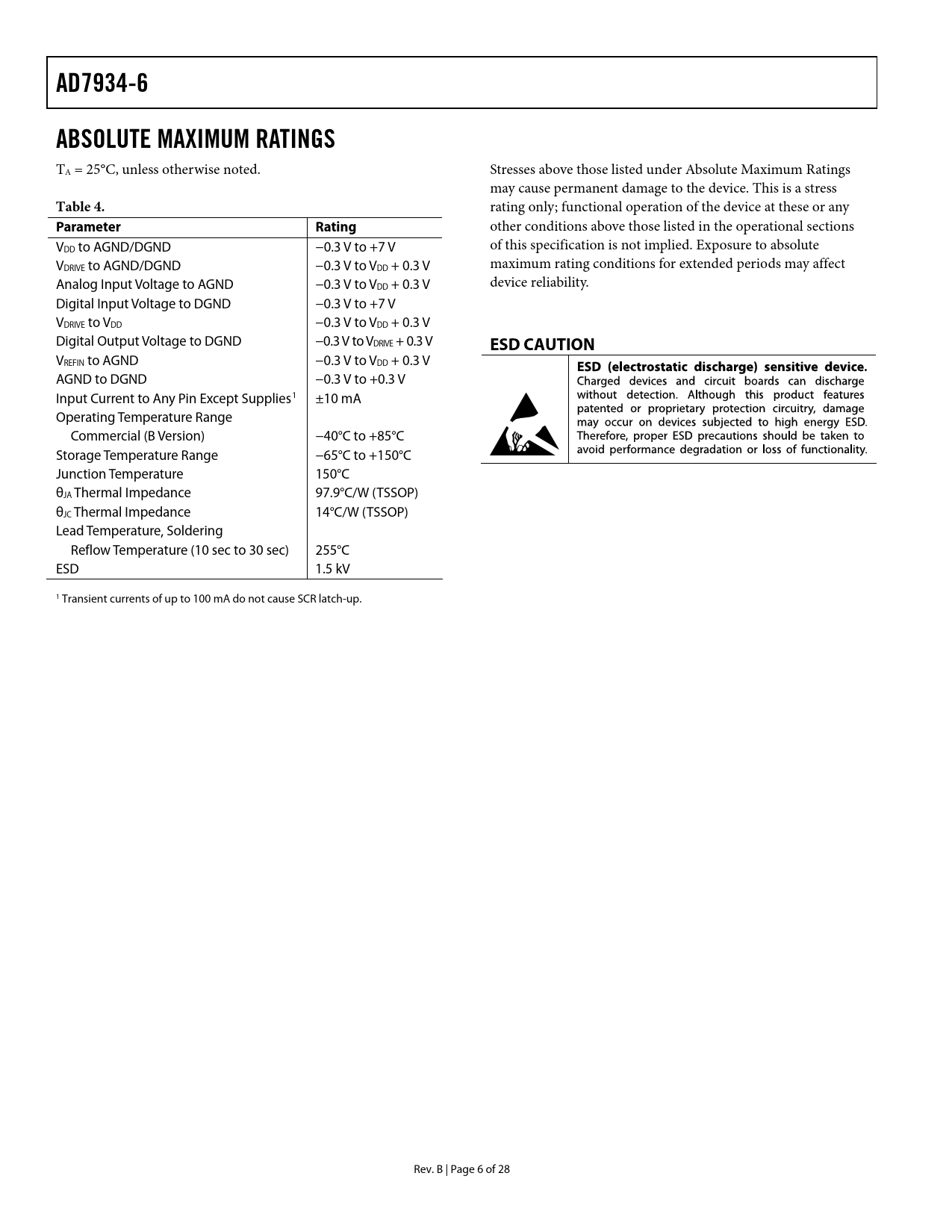

AD7934-6 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 4.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those listed in the operational sections VDD to AGND/DGND −0.3 V to +7 V of this specification is not implied. Exposure to absolute VDRIVE to AGND/DGND −0.3 V to VDD + 0.3 V maximum rating conditions for extended periods may affect Analog Input Voltage to AGND −0.3 V to V device reliability. DD + 0.3 V Digital Input Voltage to DGND −0.3 V to +7 V VDRIVE to VDD −0.3 V to VDD + 0.3 V Digital Output Voltage to DGND −0.3 V to VDRIVE + 0.3 V
