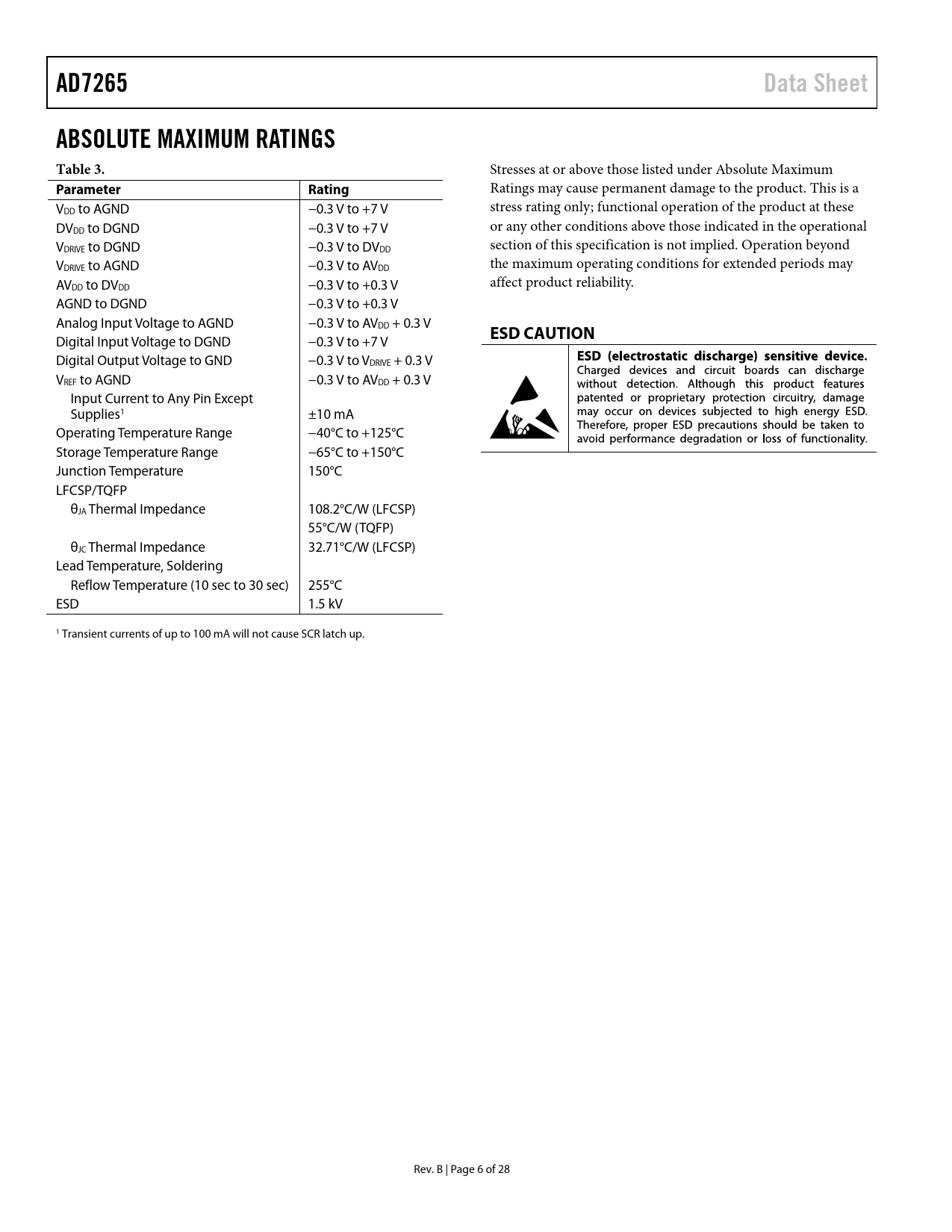

AD7265. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD7265 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a V stress rating only; functional operation of the product at these DD to AGND −0.3 V to +7 V DV or any other conditions above those indicated in the operational DD to DGND −0.3 V to +7 V V section of this specification is not implied. Operation beyond DRIVE to DGND −0.3 V to DVDD V the maximum operating conditions for extended periods may DRIVE to AGND −0.3 V to AVDD AV affect product reliability. DD to DVDD −0.3 V to +0.3 V AGND to DGND −0.3 V to +0.3 V Analog Input Voltage to AGND −0.3 V to AVDD + 0.3 V
ESD CAUTION
Digital Input Voltage to DGND −0.3 V to +7 V Digital Output Voltage to GND −0.3 V to VDRIVE + 0.3 V VREF to AGND −0.3 V to AVDD + 0.3 V Input Current to Any Pin Except Supplies1 ±10 mA Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C LFCSP/TQFP θJA Thermal Impedance 108.2°C/W (LFCSP) 55°C/W (TQFP) θJC Thermal Impedance 32.71°C/W (LFCSP) Lead Temperature, Soldering Reflow Temperature (10 sec to 30 sec) 255°C ESD 1.5 kV 1 Transient currents of up to 100 mA will not cause SCR latch up. Rev. B | Page 6 of 28 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION ANALOG INPUT STRUCTURE ANALOG INPUTS Single-Ended Mode Differential Mode Driving Differential Inputs Using an Op Amp Pair Pseudo Differential Mode ANALOG INPUT SELECTION OUTPUT CODING TRANSFER FUNCTIONS DIGITAL INPUTS VDRIVE MODES OF OPERATION NORMAL MODE PARTIAL POWER-DOWN MODE FULL POWER-DOWN MODE POWER-UP TIMES POWER vs. THROUGHPUT RATE SERIAL INTERFACE MICROPROCESSOR INTERFACING AD7265 TO ADSP-218x AD7265 to ADSP-BF53x AD7265 TO TMS320C541 AD7265 TO DSP563xx APPLICATION HINTS GROUNDING AND LAYOUT PCB DESIGN GUIDELINES FOR LFCSP EVALUATING THE AD7265 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
