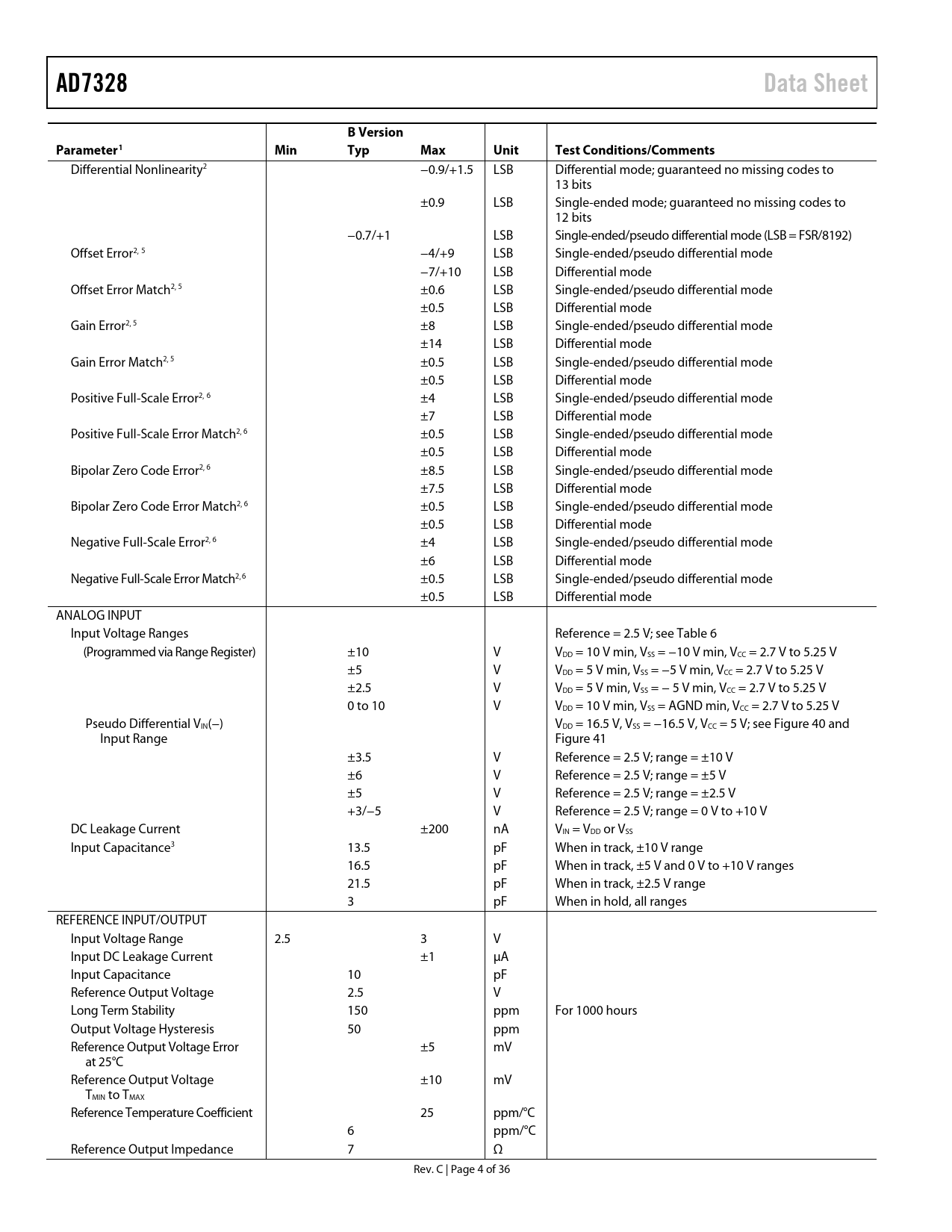

AD7328 Data Sheet B Version Parameter1 Min Typ Max Unit Test Conditions/Comments
Differential Nonlinearity2 −0.9/+1.5 LSB Differential mode; guaranteed no missing codes to 13 bits ±0.9 LSB Single-ended mode; guaranteed no missing codes to 12 bits −0.7/+1 LSB Single-ended/pseudo differential mode (LSB = FSR/8192) Offset Error2, 5 −4/+9 LSB Single-ended/pseudo differential mode −7/+10 LSB Differential mode Offset Error Match2, 5 ±0.6 LSB Single-ended/pseudo differential mode ±0.5 LSB Differential mode Gain Error2, 5 ±8 LSB Single-ended/pseudo differential mode ±14 LSB Differential mode Gain Error Match2, 5 ±0.5 LSB Single-ended/pseudo differential mode ±0.5 LSB Differential mode Positive Full-Scale Error2, 6 ±4 LSB Single-ended/pseudo differential mode ±7 LSB Differential mode Positive Full-Scale Error Match2, 6 ±0.5 LSB Single-ended/pseudo differential mode ±0.5 LSB Differential mode Bipolar Zero Code Error2, 6 ±8.5 LSB Single-ended/pseudo differential mode ±7.5 LSB Differential mode Bipolar Zero Code Error Match2, 6 ±0.5 LSB Single-ended/pseudo differential mode ±0.5 LSB Differential mode Negative Full-Scale Error2, 6 ±4 LSB Single-ended/pseudo differential mode ±6 LSB Differential mode Negative Ful -Scale Error Match2, 6 ±0.5 LSB Single-ended/pseudo differential mode ±0.5 LSB Differential mode ANALOG INPUT Input Voltage Ranges Reference = 2.5 V; see Table 6 (Programmed via Range Register) ±10 V VDD = 10 V min, VSS = −10 V min, VCC = 2.7 V to 5.25 V ±5 V VDD = 5 V min, VSS = −5 V min, VCC = 2.7 V to 5.25 V ±2.5 V VDD = 5 V min, VSS = − 5 V min, VCC = 2.7 V to 5.25 V 0 to 10 V VDD = 10 V min, VSS = AGND min, VCC = 2.7 V to 5.25 V Pseudo Differential VIN(−) VDD = 16.5 V, VSS = −16.5 V, VCC = 5 V; see Figure 40 and Input Range Figure 41 ±3.5 V Reference = 2.5 V; range = ±10 V ±6 V Reference = 2.5 V; range = ±5 V ±5 V Reference = 2.5 V; range = ±2.5 V +3/−5 V Reference = 2.5 V; range = 0 V to +10 V DC Leakage Current ±200 nA VIN = VDD or VSS Input Capacitance3 13.5 pF When in track, ±10 V range 16.5 pF When in track, ±5 V and 0 V to +10 V ranges 21.5 pF When in track, ±2.5 V range 3 pF When in hold, all ranges REFERENCE INPUT/OUTPUT Input Voltage Range 2.5 3 V Input DC Leakage Current ±1 µA Input Capacitance 10 pF Reference Output Voltage 2.5 V Long Term Stability 150 ppm For 1000 hours Output Voltage Hysteresis 50 ppm Reference Output Voltage Error ±5 mV at 25°C Reference Output Voltage ±10 mV TMIN to TMAX Reference Temperature Coefficient 25 ppm/°C 6 ppm/°C Reference Output Impedance 7 Ω Rev. C | Page 4 of 36 Document Outline Features General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications Timing Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Terminology Theory of Operation Circuit Information Converter Operation Output Coding Transfer Functions Analog Input Structure Track-and-Hold Section Typical Connection Diagram Analog Input Single-Ended Inputs True Differential Mode Pseudo Differential Inputs Driver Amplifier Choice Registers Addressing Registers Control Register Sequence Register Range Registers Sequencer Operation Reference VDRIVE Temperature Indicator Modes of Operation Normal Mode (PM1 = PM0 = 0) Full Shutdown Mode (PM1 = PM0 = 1) Autoshutdown Mode (PM1 = 1, PM0 = 0) Autostandby Mode (PM1 = 0, PM0 = 1) Power vs. Throughput Rate Serial Interface Microprocessor Interfacing AD7328 to ADSP-21xx AD7328 to ADSP-BF53x Applications Information Layout and Grounding Power Supply Configuration Outline Dimensions Ordering Guide
