Datasheet AD7690 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 18-Bit, 1.5 LSB INL, 400 kSPS PulSAR® Differential ADC in MSOP/QFN |
| Páginas / Página | 25 / 5 — AD7690. Data Sheet. Table 3. Parameter. Conditions. Min. Typ. Max. Unit |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 684 Kb |
| Idioma del documento | Inglés |

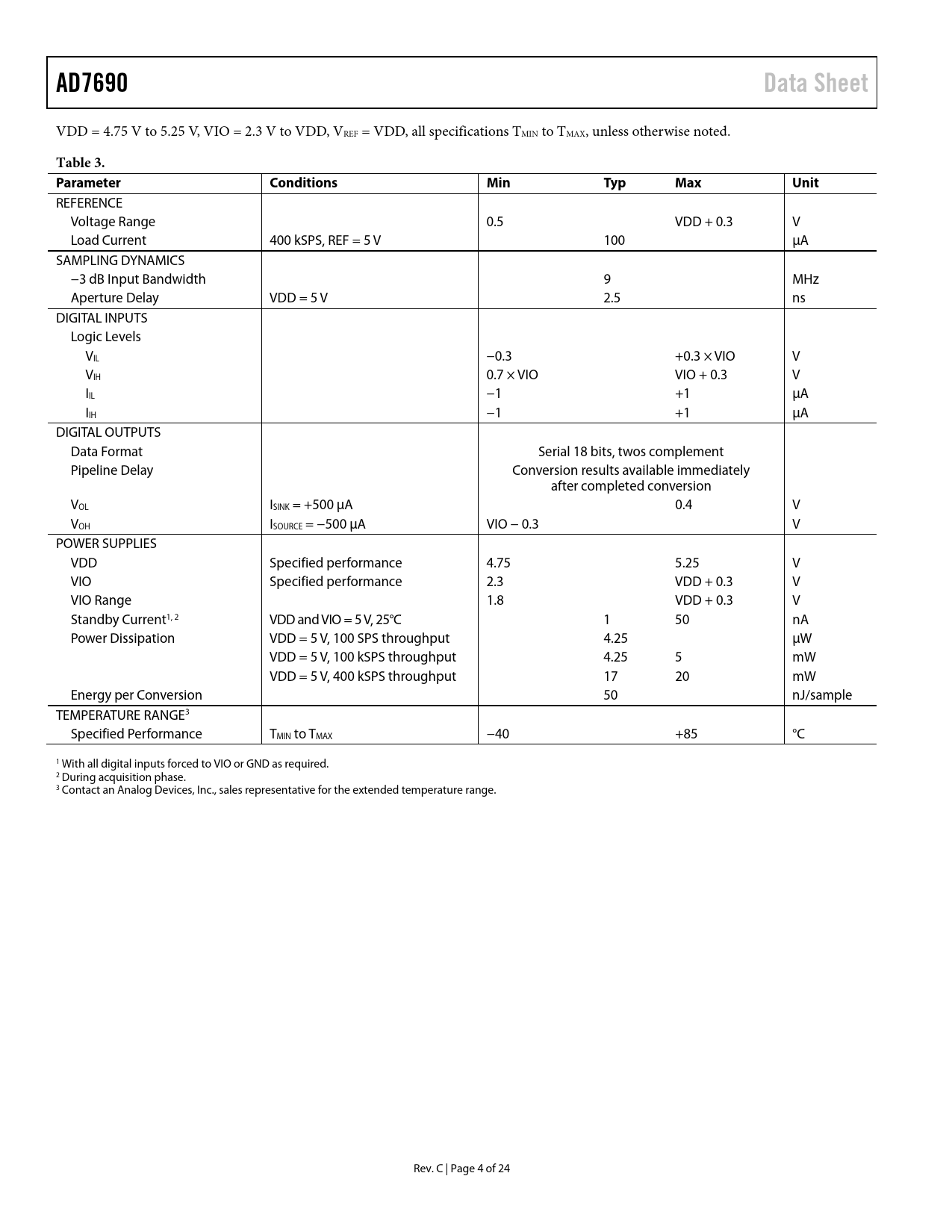

AD7690. Data Sheet. Table 3. Parameter. Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD7690 Data Sheet
VDD = 4.75 V to 5.25 V, VIO = 2.3 V to VDD, VREF = VDD, all specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter Conditions Min Typ Max Unit
REFERENCE Voltage Range 0.5 VDD + 0.3 V Load Current 400 kSPS, REF = 5 V 100 µA SAMPLING DYNAMICS −3 dB Input Bandwidth 9 MHz Aperture Delay VDD = 5 V 2.5 ns DIGITAL INPUTS Logic Levels VIL −0.3 +0.3 × VIO V VIH 0.7 × VIO VIO + 0.3 V IIL −1 +1 µA IIH −1 +1 µA DIGITAL OUTPUTS Data Format Serial 18 bits, twos complement Pipeline Delay Conversion results available immediately after completed conversion VOL ISINK = +500 µA 0.4 V VOH ISOURCE = −500 µA VIO − 0.3 V POWER SUPPLIES VDD Specified performance 4.75 5.25 V VIO Specified performance 2.3 VDD + 0.3 V VIO Range 1.8 VDD + 0.3 V Standby Current1, 2 VDD and VIO = 5 V, 25°C 1 50 nA Power Dissipation VDD = 5 V, 100 SPS throughput 4.25 µW VDD = 5 V, 100 kSPS throughput 4.25 5 mW VDD = 5 V, 400 kSPS throughput 17 20 mW Energy per Conversion 50 nJ/sample TEMPERATURE RANGE3 Specified Performance TMIN to TMAX −40 +85 °C 1 With all digital inputs forced to VIO or GND as required. 2 During acquisition phase. 3 Contact an Analog Devices, Inc., sales representative for the extended temperature range. Rev. C | Page 4 of 24 Document Outline FEATURES APPLICATIONS APPLICATION EXAMPLE GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION Transfer Functions TYPICAL CONNECTION DIAGRAM ANALOG INPUTS DRIVER AMPLIFIER CHOICE SINGLE-TO-DIFFERENTIAL DRIVER VOLTAGE REFERENCE INPUT POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE CS MODE, 3-WIRE WITHOUT BUSY INDICATOR CS MODE, 3-WIRE WITH BUSY INDICATOR CS MODE, 4-WIRE WITHOUT BUSY INDICATOR CS MODE, 4-WIRE WITH BUSY INDICATOR CHAIN MODE WITHOUT BUSY INDICATOR CHAIN MODE WITH BUSY INDICATOR APPLICATION HINTS LAYOUT EVALUATING THE AD7690 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
