Datasheet AD7949 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 14-Bit, 8-Channel, 250 kSPS PulSAR ADC |
| Páginas / Página | 32 / 6 — AD7949. Data Sheet. TIMING SPECIFICATIONS. Table 3. Parameter1. Symbol. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 767 Kb |
| Idioma del documento | Inglés |
AD7949. Data Sheet. TIMING SPECIFICATIONS. Table 3. Parameter1. Symbol. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7

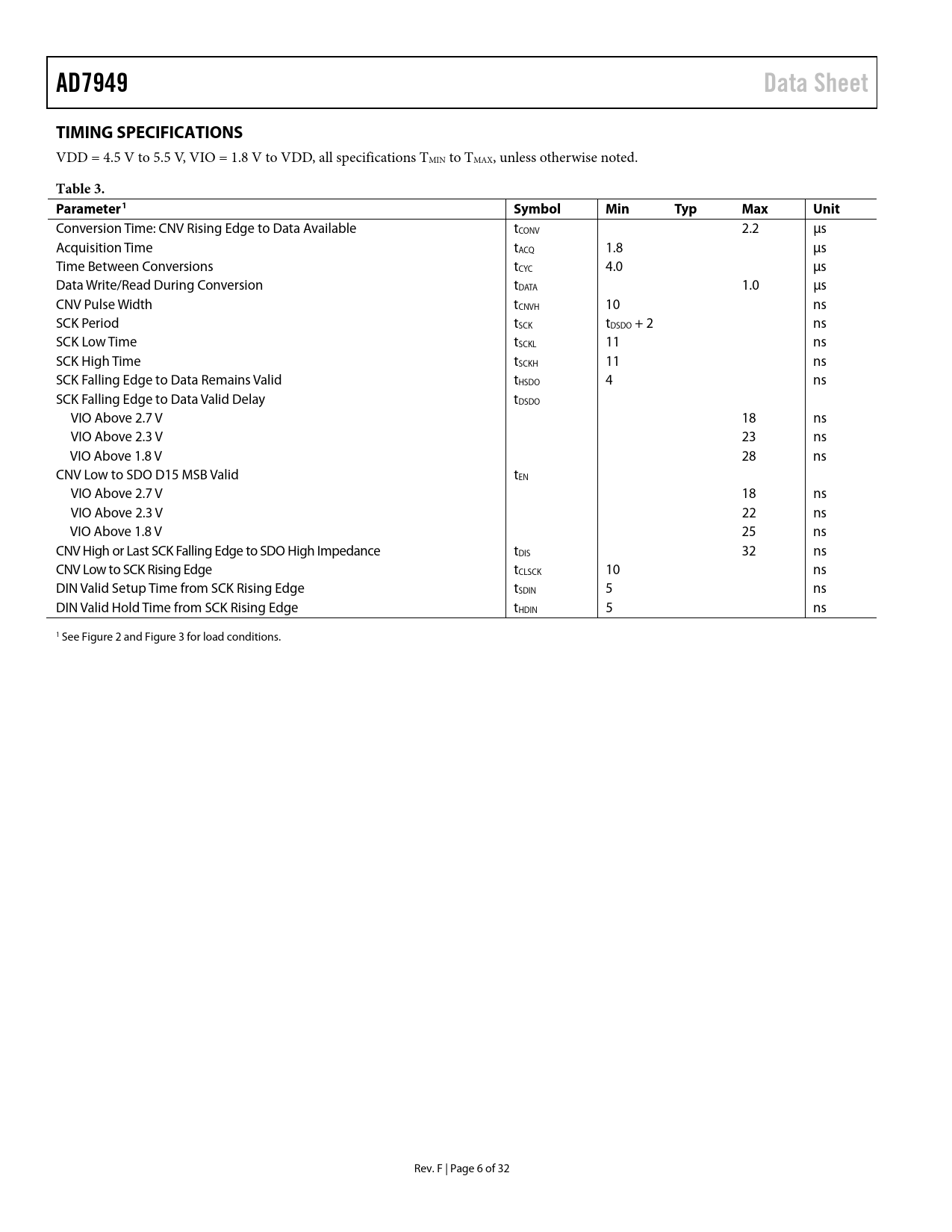

AD7949 Data Sheet TIMING SPECIFICATIONS
VDD = 4.5 V to 5.5 V, VIO = 1.8 V to VDD, all specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter1 Symbol Min Typ Max Unit
Conversion Time: CNV Rising Edge to Data Available tCONV 2.2 µs Acquisition Time tACQ 1.8 µs Time Between Conversions tCYC 4.0 µs Data Write/Read During Conversion tDATA 1.0 µs CNV Pulse Width tCNVH 10 ns SCK Period tSCK tDSDO + 2 ns SCK Low Time tSCKL 11 ns SCK High Time tSCKH 11 ns SCK Falling Edge to Data Remains Valid tHSDO 4 ns SCK Falling Edge to Data Valid Delay tDSDO VIO Above 2.7 V 18 ns VIO Above 2.3 V 23 ns VIO Above 1.8 V 28 ns CNV Low to SDO D15 MSB Valid tEN VIO Above 2.7 V 18 ns VIO Above 2.3 V 22 ns VIO Above 1.8 V 25 ns CNV High or Last SCK Fal ing Edge to SDO High Impedance tDIS 32 ns CNV Low to SCK Rising Edge tCLSCK 10 ns DIN Valid Setup Time from SCK Rising Edge tSDIN 5 ns DIN Valid Hold Time from SCK Rising Edge tHDIN 5 ns 1 See Figure 2 and Figure 3 for load conditions. Rev. F | Page 6 of 32 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CONVERTER OPERATION TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAMS Unipolar or Bipolar Bipolar Single Supply ANALOG INPUTS Input Structure Selectable Low-Pass Filter Input Configurations Sequencer Source Resistance DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE OUTPUT/INPUT Internal Reference/Temperature Sensor External Reference and Internal Buffer External Reference Reference Decoupling POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE READING/WRITING DURING CONVERSION, FAST HOSTS READING/WRITING AFTER CONVERSION, ANY SPEED HOSTS READING/WRITING SPANNING CONVERSION, ANY SPEED HOST CONFIGURATION REGISTER, CFG GENERAL TIMING WITHOUT A BUSY INDICATOR GENERAL TIMING WITH A BUSY INDICATOR CHANNEL SEQUENCER Examples READ/WRITE SPANNING CONVERSION WITHOUT A BUSY INDICATOR READ/WRITE SPANNING CONVERSION WITH A BUSY INDICATOR APPLICATION HINTS LAYOUT EVALUATING AD7949 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
AD7949 Data Sheet TIMING SPECIFICATIONS
VDD = 4.5 V to 5.5 V, VIO = 1.8 V to VDD, all specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter1 Symbol Min Typ Max Unit
Conversion Time: CNV Rising Edge to Data Available tCONV 2.2 µs Acquisition Time tACQ 1.8 µs Time Between Conversions tCYC 4.0 µs Data Write/Read During Conversion tDATA 1.0 µs CNV Pulse Width tCNVH 10 ns SCK Period tSCK tDSDO + 2 ns SCK Low Time tSCKL 11 ns SCK High Time tSCKH 11 ns SCK Falling Edge to Data Remains Valid tHSDO 4 ns SCK Falling Edge to Data Valid Delay tDSDO VIO Above 2.7 V 18 ns VIO Above 2.3 V 23 ns VIO Above 1.8 V 28 ns CNV Low to SDO D15 MSB Valid tEN VIO Above 2.7 V 18 ns VIO Above 2.3 V 22 ns VIO Above 1.8 V 25 ns CNV High or Last SCK Fal ing Edge to SDO High Impedance tDIS 32 ns CNV Low to SCK Rising Edge tCLSCK 10 ns DIN Valid Setup Time from SCK Rising Edge tSDIN 5 ns DIN Valid Hold Time from SCK Rising Edge tHDIN 5 ns 1 See Figure 2 and Figure 3 for load conditions. Rev. F | Page 6 of 32 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CONVERTER OPERATION TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAMS Unipolar or Bipolar Bipolar Single Supply ANALOG INPUTS Input Structure Selectable Low-Pass Filter Input Configurations Sequencer Source Resistance DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE OUTPUT/INPUT Internal Reference/Temperature Sensor External Reference and Internal Buffer External Reference Reference Decoupling POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE READING/WRITING DURING CONVERSION, FAST HOSTS READING/WRITING AFTER CONVERSION, ANY SPEED HOSTS READING/WRITING SPANNING CONVERSION, ANY SPEED HOST CONFIGURATION REGISTER, CFG GENERAL TIMING WITHOUT A BUSY INDICATOR GENERAL TIMING WITH A BUSY INDICATOR CHANNEL SEQUENCER Examples READ/WRITE SPANNING CONVERSION WITHOUT A BUSY INDICATOR READ/WRITE SPANNING CONVERSION WITH A BUSY INDICATOR APPLICATION HINTS LAYOUT EVALUATING AD7949 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
