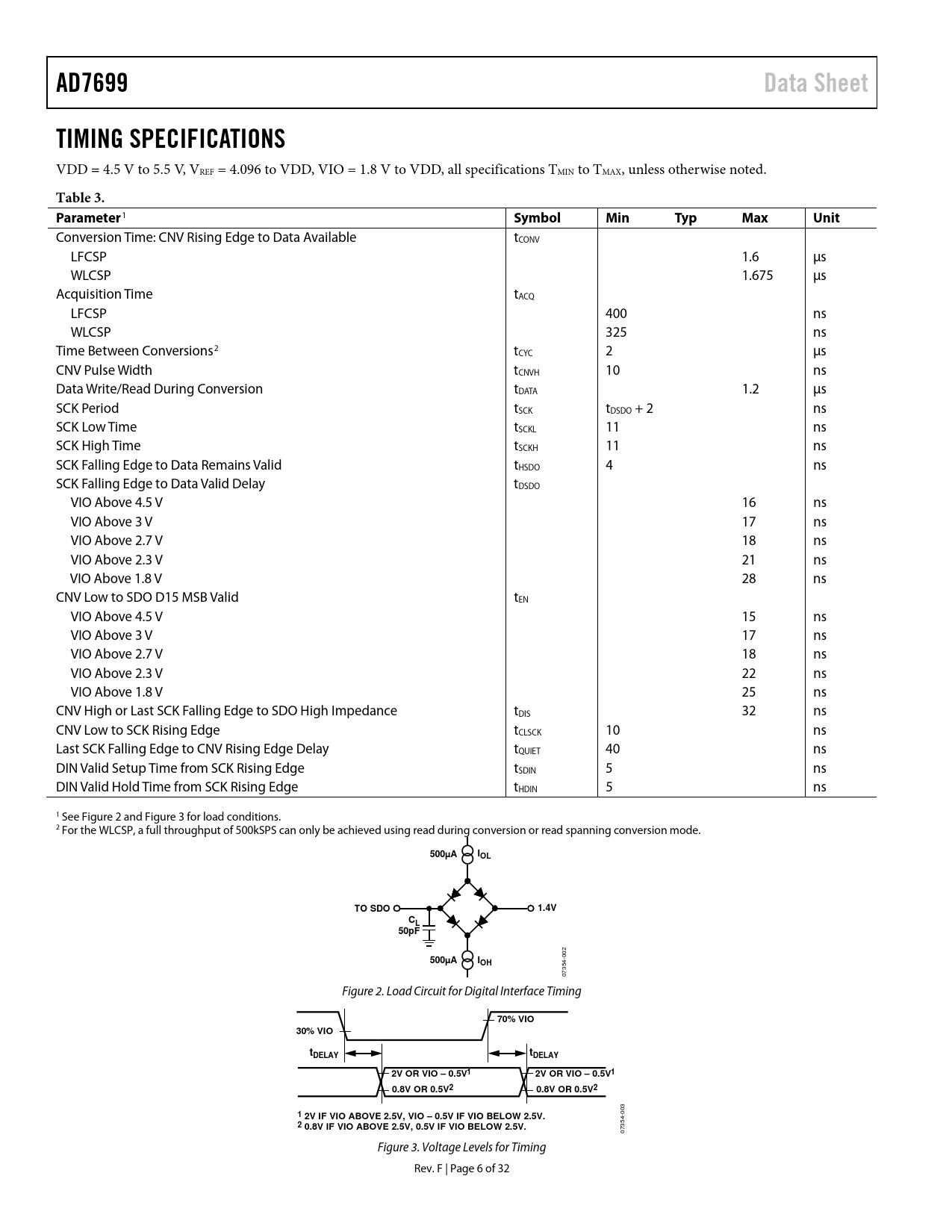

AD7699 Data Sheet TIMING SPECIFICATIONS
VDD
=
4.5 V to 5.5 V, VREF = 4.096 to VDD, VIO = 1.8 V to VDD, all specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter
1
Symbol Min Typ Max Unit
Conversion Time: CNV Rising Edge to Data Available tCONV LFCSP 1.6 µs WLCSP 1.675 µs Acquisition Time tACQ LFCSP 400 ns WLCSP 325 ns Time Between Conversions2 tCYC 2 µs CNV Pulse Width tCNVH 10 ns Data Write/Read During Conversion tDATA 1.2 µs SCK Period tSCK tDSDO + 2 ns SCK Low Time tSCKL 11 ns SCK High Time tSCKH 11 ns SCK Falling Edge to Data Remains Valid tHSDO 4 ns SCK Falling Edge to Data Valid Delay tDSDO VIO Above 4.5 V 16 ns VIO Above 3 V 17 ns VIO Above 2.7 V 18 ns VIO Above 2.3 V 21 ns VIO Above 1.8 V 28 ns CNV Low to SDO D15 MSB Valid tEN VIO Above 4.5 V 15 ns VIO Above 3 V 17 ns VIO Above 2.7 V 18 ns VIO Above 2.3 V 22 ns VIO Above 1.8 V 25 ns CNV High or Last SCK Falling Edge to SDO High Impedance tDIS 32 ns CNV Low to SCK Rising Edge tCLSCK 10 ns Last SCK Falling Edge to CNV Rising Edge Delay tQUIET 40 ns DIN Valid Setup Time from SCK Rising Edge tSDIN 5 ns DIN Valid Hold Time from SCK Rising Edge tHDIN 5 ns 1 See Figure 2 and Figure 3 for load conditions. 2 For the WLCSP, a full throughput of 500kSPS can only be achieved using read during conversion or read spanning conversion mode.
500µA IOL TO SDO 1.4V CL 50pF
002
500µA IOH
07354- Figure 2. Load Circuit for Digital Interface Timing
70% VIO 30% VIO tDELAY tDELAY 2V OR VIO – 0.5V1 2V OR VIO – 0.5V1 0.8V OR 0.5V2 0.8V OR 0.5V2 1 2V IF VIO ABOVE 2.5V, VIO – 0.5V IF VIO BELOW 2.5V.
003
2 0.8V IF VIO ABOVE 2.5V, 0.5V IF VIO BELOW 2.5V.
07354- Figure 3. Voltage Levels for Timing Rev. F | Page 6 of 32 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CONVERTER OPERATION TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAMS Unipolar or Bipolar Bipolar Single Supply ANALOG INPUTS Input Structure Selectable Low-Pass Filter Input Configurations Sequencer Examples Source Resistance DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE OUTPUT/INPUT Internal Reference/Temperature Sensor External Reference and Internal Buffer External Reference Reference Decoupling POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE READING/WRITING DURING CONVERSION, FAST HOSTS READING/WRITING DURING ACQUISITION, ANY SPEED HOSTS READING/WRITING SPANNING CONVERSION, ANY SPEED HOST CONFIGURATION REGISTER, CFG GENERAL TIMING WITHOUT A BUSY INDICATOR GENERAL TIMING WITH A BUSY INDICATOR READ/WRITE SPANNING CONVERSION WITHOUT A BUSY INDICATOR READ/WRITE SPANNING CONVERSION WITH A BUSY INDICATOR CHANNEL SEQUENCER Examples APPLICATION HINTS LAYOUT EVALUATING AD7699 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
