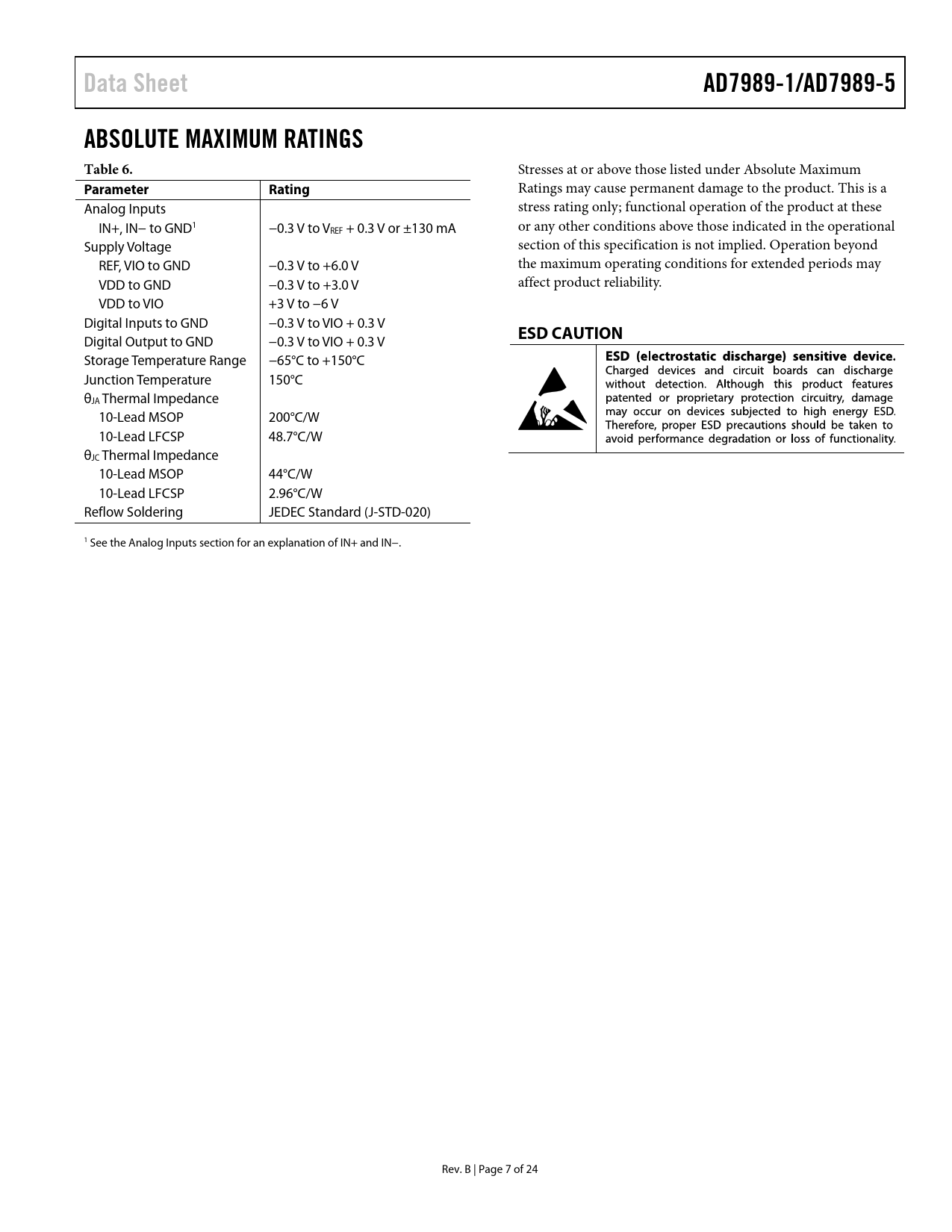

Data Sheet AD7989-1/AD7989-5 ABSOLUTE MAXIMUM RATINGS Table 6.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Analog Inputs stress rating only; functional operation of the product at these IN+, IN− to GND1 −0.3 V to V or any other conditions above those indicated in the operational REF + 0.3 V or ±130 mA Supply Voltage section of this specification is not implied. Operation beyond REF, VIO to GND −0.3 V to +6.0 V the maximum operating conditions for extended periods may VDD to GND −0.3 V to +3.0 V affect product reliability. VDD to VIO +3 V to −6 V Digital Inputs to GND −0.3 V to VIO + 0.3 V
ESD CAUTION
Digital Output to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θJA Thermal Impedance 10-Lead MSOP 200°C/W 10-Lead LFCSP 48.7°C/W θJC Thermal Impedance 10-Lead MSOP 44°C/W 10-Lead LFCSP 2.96°C/W Reflow Soldering JEDEC Standard (J-STD-020) 1 See the Analog Inputs section for an explanation of IN+ and IN−. Rev. B | Page 7 of 24 Document Outline Features Applications General Description Typical Applications Circuit Revision History Specifications Timing Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Terminology Theory of Operation Circuit Information Converter Operation Transfer Functions Typical Connection Diagram Analog Inputs Driver Amplifier Choice Single-Ended to Differential Driver Voltage Reference Input Power Supply Digital Interface CSB Mode, 3-Wire CSB Mode, 4-Wire Chain Mode Applications Information Interfacing to Blackfin® DSP Layout Evaluating AD7989-1/AD7989-5 Performance Outline Dimensions Ordering Guide
