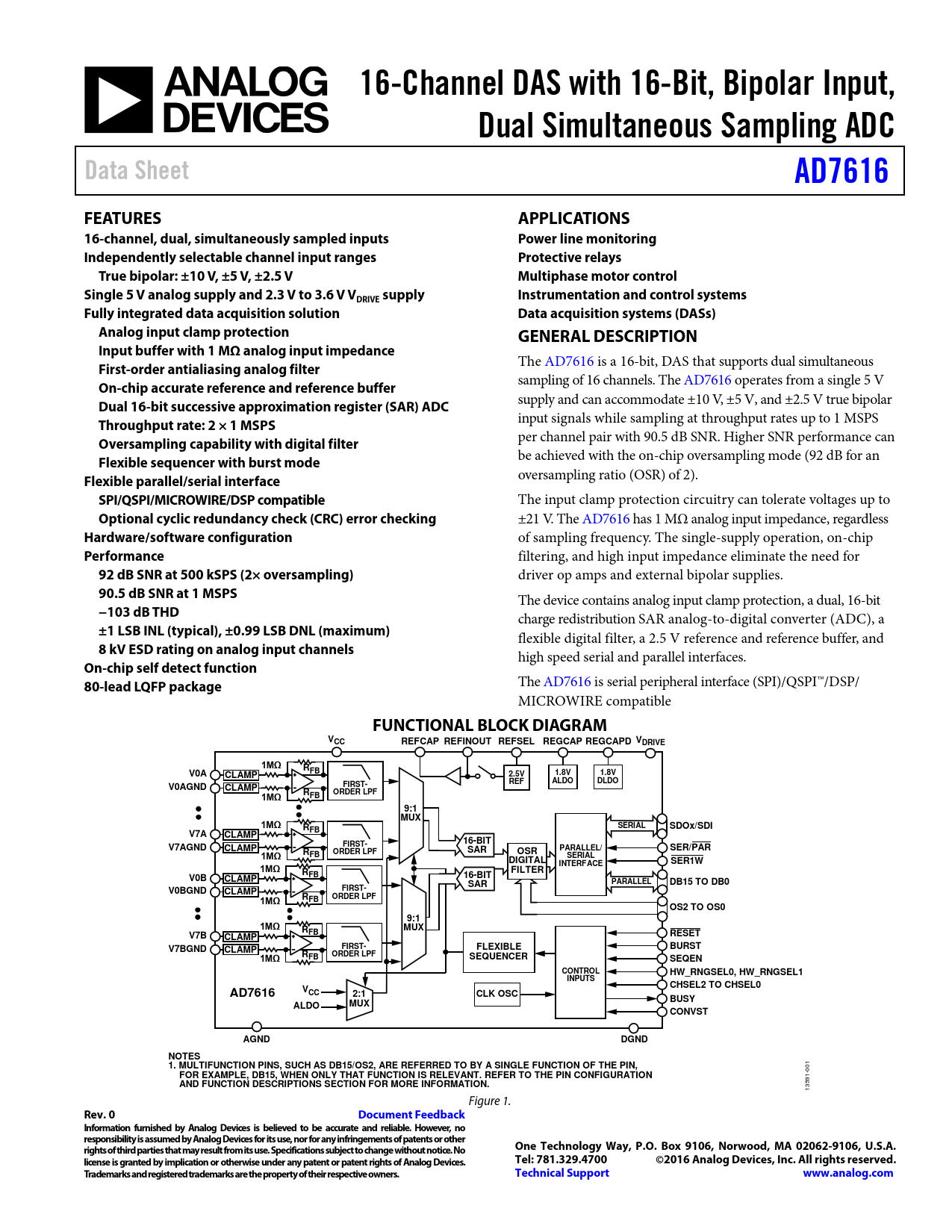

16-Channel DAS with 16-Bit, Bipolar Input, Dual Simultaneous Sampling ADC Data Sheet AD7616 FEATURES APPLICATIONS 16-channel, dual, simultaneously sampled inputs Power line monitoring Independently selectable channel input ranges Protective relays True bipolar: ±10 V, ±5 V, ±2.5 V Multiphase motor control Single 5 V analog supply and 2.3 V to 3.6 V V supply Instrumentation and control systems DRIVE Fully integrated data acquisition solution Data acquisition systems (DASs) Analog input clamp protection GENERAL DESCRIPTION Input buffer with 1 MΩ analog input impedance First-order antialiasing analog filter
The AD7616 is a 16-bit, DAS that supports dual simultaneous
On-chip accurate reference and reference buffer
sampling of 16 channels. The AD7616 operates from a single 5 V
Dual 16-bit successive approximation register (SAR) ADC
supply and can accommodate ±10 V, ±5 V, and ±2.5 V true bipolar
Throughput rate: 2 × 1 MSPS
input signals while sampling at throughput rates up to 1 MSPS
Oversampling capability with digital filter
per channel pair with 90.5 dB SNR. Higher SNR performance can
Flexible sequencer with burst mode
be achieved with the on-chip oversampling mode (92 dB for an
Flexible parallel/serial interface
oversampling ratio (OSR) of 2).
SPI/QSPI/MICROWIRE/DSP compatible
The input clamp protection circuitry can tolerate voltages up to
Optional cyclic redundancy check (CRC) error checking
±21 V. The AD7616 has 1 MΩ analog input impedance, regardless
Hardware/software configuration
of sampling frequency. The single-supply operation, on-chip
Performance
filtering, and high input impedance eliminate the need for
92 dB SNR at 500 kSPS (2× oversampling)
driver op amps and external bipolar supplies.
90.5 dB SNR at 1 MSPS
The device contains analog input clamp protection, a dual, 16-bit
−103 dB THD
charge redistribution SAR analog-to-digital converter (ADC), a
±1 LSB INL (typical), ±0.99 LSB DNL (maximum)
flexible digital filter, a 2.5 V reference and reference buffer, and
8 kV ESD rating on analog input channels
high speed serial and paral el interfaces.
On-chip self detect function 80-lead LQFP package
The AD7616 is serial peripheral interface (SPI)/QSPI™/DSP/ MICROWIRE compatible
FUNCTIONAL BLOCK DIAGRAM VCC REFCAP REFINOUT REFSEL REGCAP REGCAPD VDRIVE 1MΩ R V0A FB 2.5V 1.8V 1.8V CLAMP REF ALDO DLDO V0AGND FIRST- CLAMP 1MΩ RFB ORDER LPF 9:1 MUX 1MΩ SERIAL SDOx/SDI R V7A FB CLAMP 16-BIT V7AGND FIRST- CLAMP PARALLEL/ SER/PAR ORDER LPF SAR OSR 1MΩ RFB SERIAL DIGITAL SER1W 1MΩ INTERFACE R FILTER FB V0B 16-BIT CLAMP SAR PARALLEL DB15 TO DB0 FIRST- V0BGND CLAMP 1MΩ RFB ORDER LPF OS2 TO OS0 9:1 1MΩ R MUX FB V7B RESET CLAMP FIRST- V7BGND FLEXIBLE BURST CLAMP 1MΩ RFB ORDER LPF SEQUENCER SEQEN CONTROL HW_RNGSEL0, HW_RNGSEL1 INPUTS CHSEL2 TO CHSEL0 AD7616 VCC 2:1 CLK OSC BUSY ALDO MUX CONVST AGND DGND NOTES 1. MULTIFUNCTION PINS, SUCH AS DB15/OS2, ARE REFERRED TO BY A SINGLE FUNCTION OF THE PIN,
001
FOR EXAMPLE, DB15, WHEN ONLY THAT FUNCTION IS RELEVANT. REFER TO THE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SECTION FOR MORE INFORMATION.
13591- Figure 1.
