Datasheet AD9689 (Analog Devices)

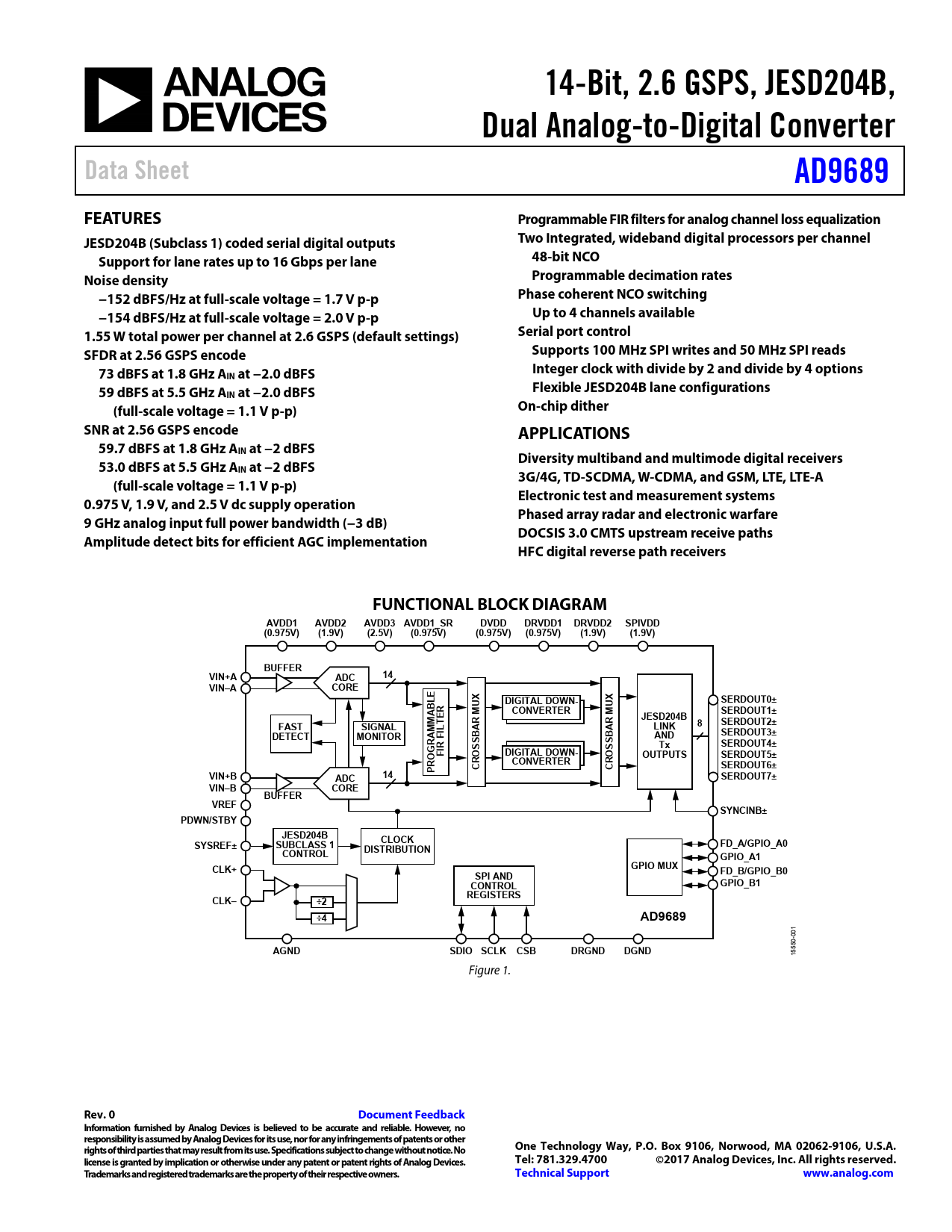

14-Bit, 2.6 GSPS, JESD204B, Dual Analog-to-Digital Converter Data Sheet AD9689 FEATURES Programmable FIR filters for analog channel loss equalization JESD204B (Subclass 1) coded serial digital outputs Two Integrated, wideband digital processors per channel Support for lane rates up to 16 Gbps per lane 48-bit NCO Noise density Programmable decimation rates −152 dBFS/Hz at full-scale voltage = 1.7 V p-p Phase coherent NCO switching −154 dBFS/Hz at full-scale voltage = 2.0 V p-p Up to 4 channels available 1.55 W total power per channel at 2.6 GSPS (default settings) Serial port control SFDR at 2.56 GSPS encode Supports 100 MHz SPI writes and 50 MHz SPI reads 73 dBFS at 1.8 GHz A Integer clock with divide by 2 and divide by 4 options IN at −2.0 dBFS 59 dBFS at 5.5 GHz A Flexible JESD204B lane configurations IN at −2.0 dBFS (full-scale voltage = 1.1 V p-p) On-chip dither SNR at 2.56 GSPS encode APPLICATIONS 59.7 dBFS at 1.8 GHz AIN at −2 dBFS Diversity multiband and multimode digital receivers 53.0 dBFS at 5.5 GHz AIN at −2 dBFS 3G/4G, TD-SCDMA, W-CDMA, and GSM, LTE, LTE-A (full-scale voltage = 1.1 V p-p) Electronic test and measurement systems 0.975 V, 1.9 V, and 2.5 V dc supply operation Phased array radar and electronic warfare 9 GHz analog input full power bandwidth (−3 dB) DOCSIS 3.0 CMTS upstream receive paths Amplitude detect bits for efficient AGC implementation HFC digital reverse path receivers FUNCTIONAL BLOCK DIAGRAM AVDD1 AVDD2 AVDD3 AVDD1_SR DVDD DRVDD1 DRVDD2 SPIVDD (0.975V) (1.9V) (2.5V) (0.975V) (0.975V) (0.975V) (1.9V) (1.9V) BUFFER VIN+A ADC 14 VIN–A CORE E UX DIGITAL DOWN- UX SERDOUT0± ABL R CONVERTER SERDOUT1± M JESD204B FAST SIGNAL 8 SERDOUT2± LINK DETECT MONITOR SERDOUT3± RAM FILTE AND SSBAR M SSBAR M G Tx SERDOUT4± FIR DIGITAL DOWN- OUTPUTS SERDOUT5± CRO CONVERTER CRO PRO SERDOUT6± VIN+B 14 ADC SERDOUT7± VIN–B CORE BUFFER VREF SYNCINB± PDWN/STBY JESD204B SYSREF± SUBCLASS 1 CLOCK FD_A/GPIO_A0 CONTROL DISTRIBUTION GPIO_A1 CLK+ GPIO MUX SPI AND FD_B/GPIO_B0 CONTROL GPIO_B1 CLK– REGISTERS ÷2 ÷4 AD9689
001
AGND SDIO SCLK CSB DRGND DGND
15550- Figure 1.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EQUIVALENT CIRCUITS THEORY OF OPERATION ADC ARCHITECTURE ANALOG INPUT CONSIDERATIONS Differential Input Configurations Input Common Mode Analog Input Buffer Controls and SFDR Optimization Dither Absolute Maximum Input Swing VOLTAGE REFERENCE DC OFFSET CALIBRATION CLOCK INPUT CONSIDERATIONS Clock Duty Cycle Considerations Input Clock Divider Input Clock Divider ½ Period Delay Adjust Clock Fine Delay and Superfine Delay Adjust Clock Coupling Considerations Clock Jitter Considerations POWER-DOWN AND STANDBY MODE TEMPERATURE DIODE ADC OVERRANGE AND FAST DETECT ADC OVERRANGE FAST THRESHOLD DETECTION (FD_A AND FD_B) ADC APPLICATION MODES AND JESD204B Tx CONVERTER MAPPING PROGRAMMABLE FIR FILTERS SUPPORTED MODES PROGRAMMING INSTRUCTIONS DIGITAL DOWNCONVERTER (DDC) DDC I/Q INPUT SELECTION DDC I/Q OUTPUT SELECTION DDC GENERAL DESCRIPTION DDC Frequency Translation Stage (Optional) DDC Filtering Stage DDC Gain Stage (Optional) DDC Complex to Real Conversion Stage (Optional) DDC FREQUENCY TRANSLATION DDC Frequency Translation General Description Variable IF Mode 0 Hz IF (ZIF) Mode fS/4 Hz IF Mode Test Mode DDC NCO Description DDC NCO Programmable Modulus Mode DDC NCO Coherent Mode NCO FTW/POW/MAW/MAB Description NCO FTW/POW/MAW/MAB Programmable Modulus Mode NCO FTW/POW/MAW/MAB Coherent Mode NCO Channel Selection GPIO Level Control Mode GPIO Edge Control Mode Register Map Mode Setting Up the Multichannel NCO Feature NCO Synchronization NCO Multichip Synchronization NCO Multichip Synchronization at Startup NCO Multichip Synchronization During Normal Operation DDC Mixer Description DDC NCO + Mixer Loss and SFDR DDC DECIMATION FILTERS HB4 Filter Description HB3 Filter Description HB2 Filter Description HB1 Filter Description TB2 Filter Description TB1 Filter Description FB2 Filter Description DDC GAIN STAGE DDC COMPLEX TO REAL CONVERSION DDC MIXED DECIMATION SETTINGS DDC EXAMPLE CONFIGURATIONS DDC POWER CONSUMPTION SIGNAL MONITOR SPORT OVER JESD204B DIGITAL OUTPUTS INTRODUCTION TO THE JESD204B INTERFACE JESD204B OVERVIEW FUNCTIONAL OVERVIEW Transport Layer Data Link Layer Physical Layer JESD204B LINK ESTABLISHMENT Code Group Synchronization (CGS) and SYNCINB± Initial Lane Alignment Sequence (ILAS) User Data and Error Detection 8-Bit/10-Bit Encoder PHYSICAL LAYER (DRIVER) OUTPUTS Digital Outputs, Timing, and Controls De-Emphasis Phase-Locked Loop (PLL) fS × 4 MODE SETTING UP THE AD9689 DIGITAL INTERFACE Example 1—Full Bandwidth Mode Example 2—ADC with DDC Option (Two ADCs Plus Two DDCs) DETERMINISTIC LATENCY SUBCLASS 0 OPERATION SUBCLASS 1 OPERATION Deterministic Latency Requirements Setting Deterministic Latency Registers MULTICHIP SYNCHRONIZATION NORMAL MODE TIMESTAMP MODE SYSREF INPUT SYSREF Control Features SYSREF± SETUP/HOLD WINDOW MONITOR LATENCY END TO END TOTAL LATENCY EXAMPLE LATENCY CALCULATIONS LMFC REFERENCED LATENCY TEST MODES ADC TEST MODES JESD204B BLOCK TEST MODES Transport Layer Sample Test Mode Interface Test Modes Data Link Layer Test Modes SERIAL PORT INTERFACE CONFIGURATION USING THE SPI HARDWARE INTERFACE SPI ACCESSIBLE FEATURES MEMORY MAP READING THE MEMORY MAP REGISTER TABLE Open and Reserved Locations Default Values Logic Levels Channel Specific Registers SPI Soft Reset MEMORY MAP REGISTER DETAILS Analog Devices SPI Registers Clock/SYSREF/Chip Power-Down Pin Control Registers Chip Operating Mode Control Registers Fast Detect and Signal Monitor Control Registers DDC Function Registers (See the Digital Downconverter (DDC) Section) Digital Outputs and Test Modes Programmable Filter (PFILT) Control and Coefficients Registers VREF/Analog Input Control Registers APPLICATIONS INFORMATION POWER SUPPLY RECOMMENDATIONS LAYOUT GUIDELINES AVDD1_SR (PIN E7) AND AGND (PIN E6 AND PIN E8) OUTLINE DIMENSIONS ORDERING GUIDE
