Datasheet LTC3854 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Small Footprint, Wide VIN Range Synchronous Step-Down DC/DC Controller |
| Páginas / Página | 28 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| Formato / tamaño de archivo | PDF / 547 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
- LTC3854EDDB#PBF LTC3854EDDB#TRMPBF LTC3854EDDB#TRMPBF LTC3854EDDB#TRPBF LTC3854EDDB#TRPBF LTC3854EMSE#PBF LTC3854EMSE#PBF LTC3854EMSE#TRPBF LTC3854EMSE#TRPBF LTC3854IDDB#PBF LTC3854IDDB#TRMPBF LTC3854IDDB#TRMPBF LTC3854IDDB#TRPBF LTC3854IDDB#TRPBF LTC3854IMSE#PBF LTC3854IMSE#PBF LTC3854IMSE#TRPBF LTC3854IMSE#TRPBF
Versión de texto del documento
LTC3854

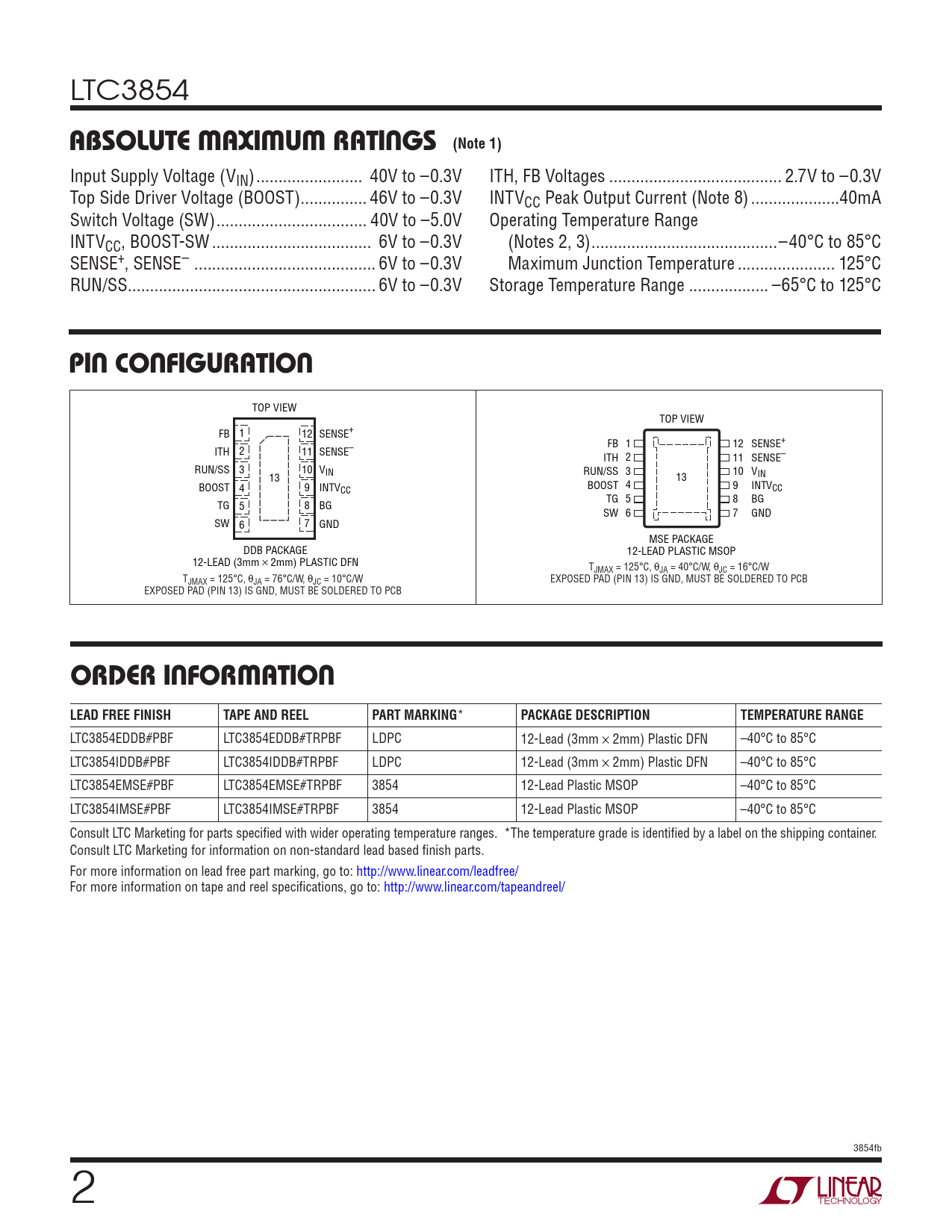

ABSOLUTE MAXIMUM RATINGS (Note 1)
