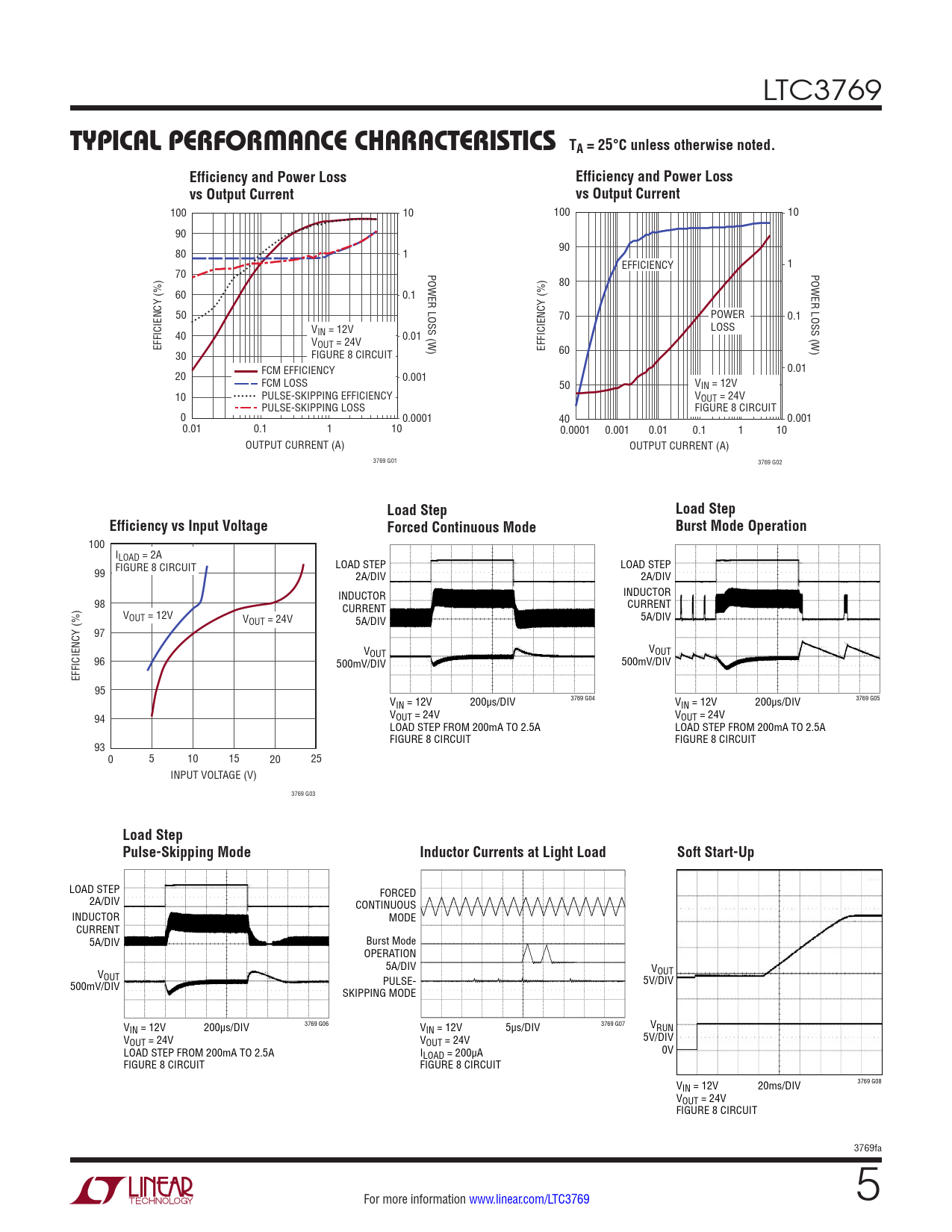

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C unless otherwise noted. Efficiency and Power Loss. vs Output Current. Load Step
