LTC1735

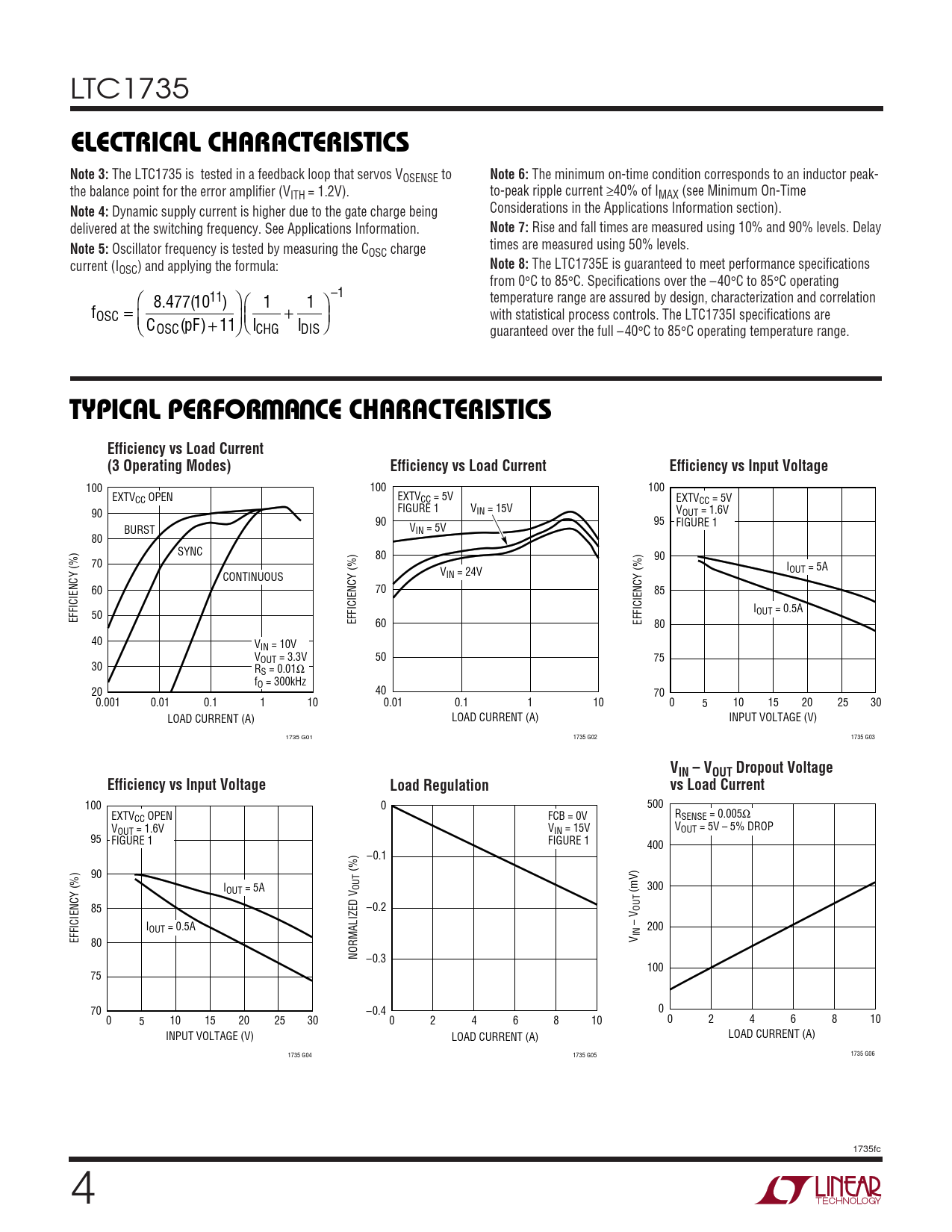

ELECTRICAL CHARACTERISTICS Note 3:
The LTC1735 is tested in a feedback loop that servos VOSENSE to
Note 6:
The minimum on-time condition corresponds to an inductor peak- the balance point for the error amplifier (VITH = 1.2V). to-peak ripple current ≥40% of IMAX (see Minimum On-Time
Note 4:
Dynamic supply current is higher due to the gate charge being Considerations in the Applications Information section). delivered at the switching frequency. See Applications Information.
Note 7:
Rise and fall times are measured using 10% and 90% levels. Delay
Note 5:
Oscillator frequency is tested by measuring the C times are measured using 50% levels. OSC charge current (I
Note 8:
The LTC1735E is guaranteed to meet performance specifications OSC) and applying the formula: from 0°C to 85°C. Specifications over the –40°C to 85°C operating 1 – 8.477 1011 ( ) 1 1 temperature range are assured by design, characterization and correlation fOSC = with statistical process controls. The LTC1735I specifications are C p ( F) + + 11 I I OSC CHG DIS guaranteed over the full –40°C to 85°C operating temperature range.
