Datasheet LT8335 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Low IQ Boost/SEPIC/ Inverting Converter with 2A, 28V Switch |
| Páginas / Página | 20 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION http://www.linear.com/product/LT8335#orderinfo
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT8335

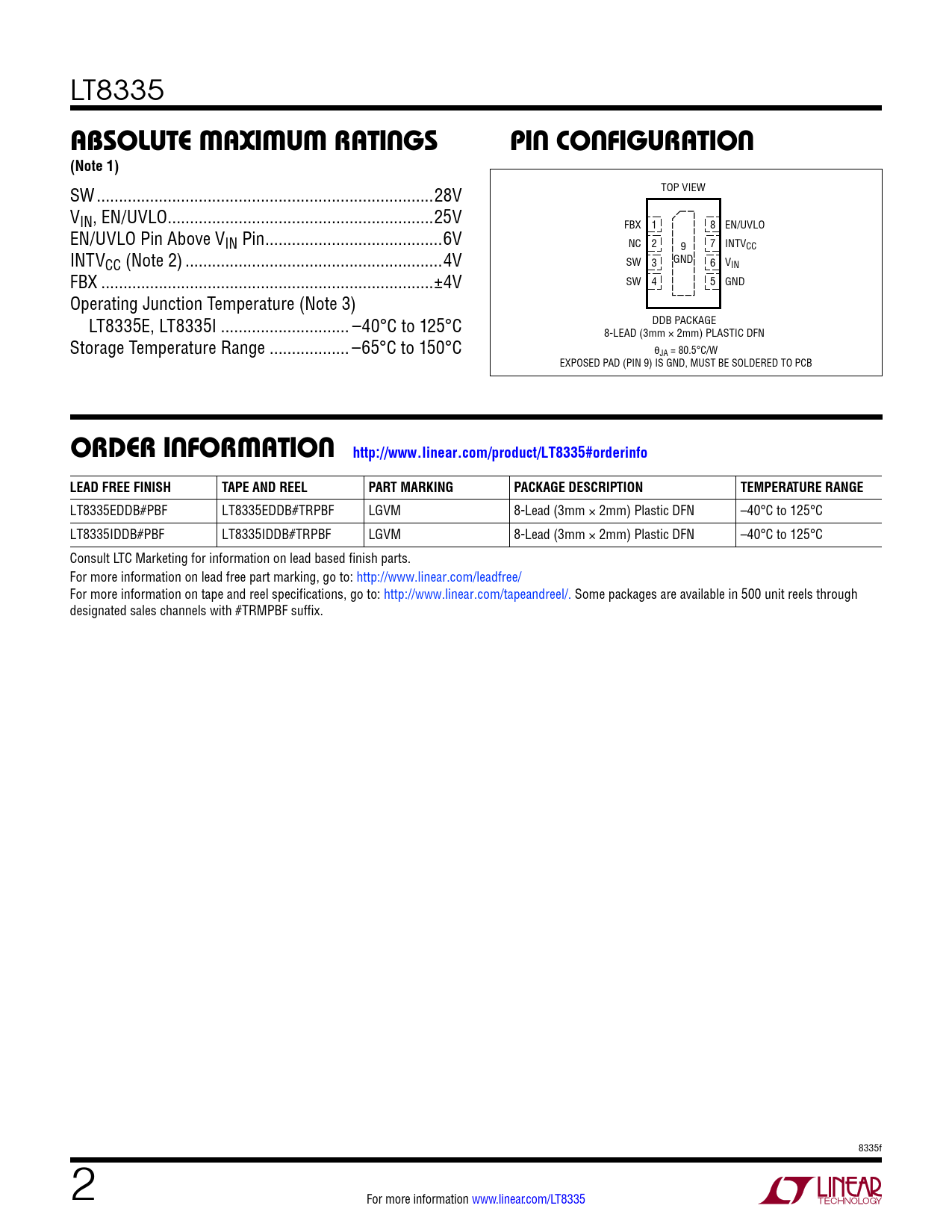

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SW ..28V TOP VIEW VIN, EN/UVLO ..25V FBX 1 8 EN/UVLO EN/UVLO Pin Above VIN Pin ..6V NC 2 9 7 INTVCC INTVCC (Note 2) ..4V GND SW 3 6 VIN FBX ...±4V SW 4 5 GND Operating Junction Temperature (Note 3) LT8335E, LT8335I ... –40°C to 125°C DDB PACKAGE 8-LEAD (3mm × 2mm) PLASTIC DFN Storage Temperature Range .. –65°C to 150°C θJA = 80.5°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LT8335#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8335EDDB#PBF LT8335EDDB#TRPBF LGVM 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT8335IDDB#PBF LT8335IDDB#TRPBF LGVM 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 8335f 2 For more information www.linear.com/LT8335
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SW ..28V TOP VIEW VIN, EN/UVLO ..25V FBX 1 8 EN/UVLO EN/UVLO Pin Above VIN Pin ..6V NC 2 9 7 INTVCC INTVCC (Note 2) ..4V GND SW 3 6 VIN FBX ...±4V SW 4 5 GND Operating Junction Temperature (Note 3) LT8335E, LT8335I ... –40°C to 125°C DDB PACKAGE 8-LEAD (3mm × 2mm) PLASTIC DFN Storage Temperature Range .. –65°C to 150°C θJA = 80.5°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LT8335#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8335EDDB#PBF LT8335EDDB#TRPBF LGVM 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT8335IDDB#PBF LT8335IDDB#TRPBF LGVM 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 8335f 2 For more information www.linear.com/LT8335
