| Descripción | Wide Operating Range, Valley Mode, No RSENSE Synchronous Step-Down Controller |
| Páginas / Página | 20 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| Formato / tamaño de archivo | PDF / 244 Kb |
| Idioma del documento | Inglés |

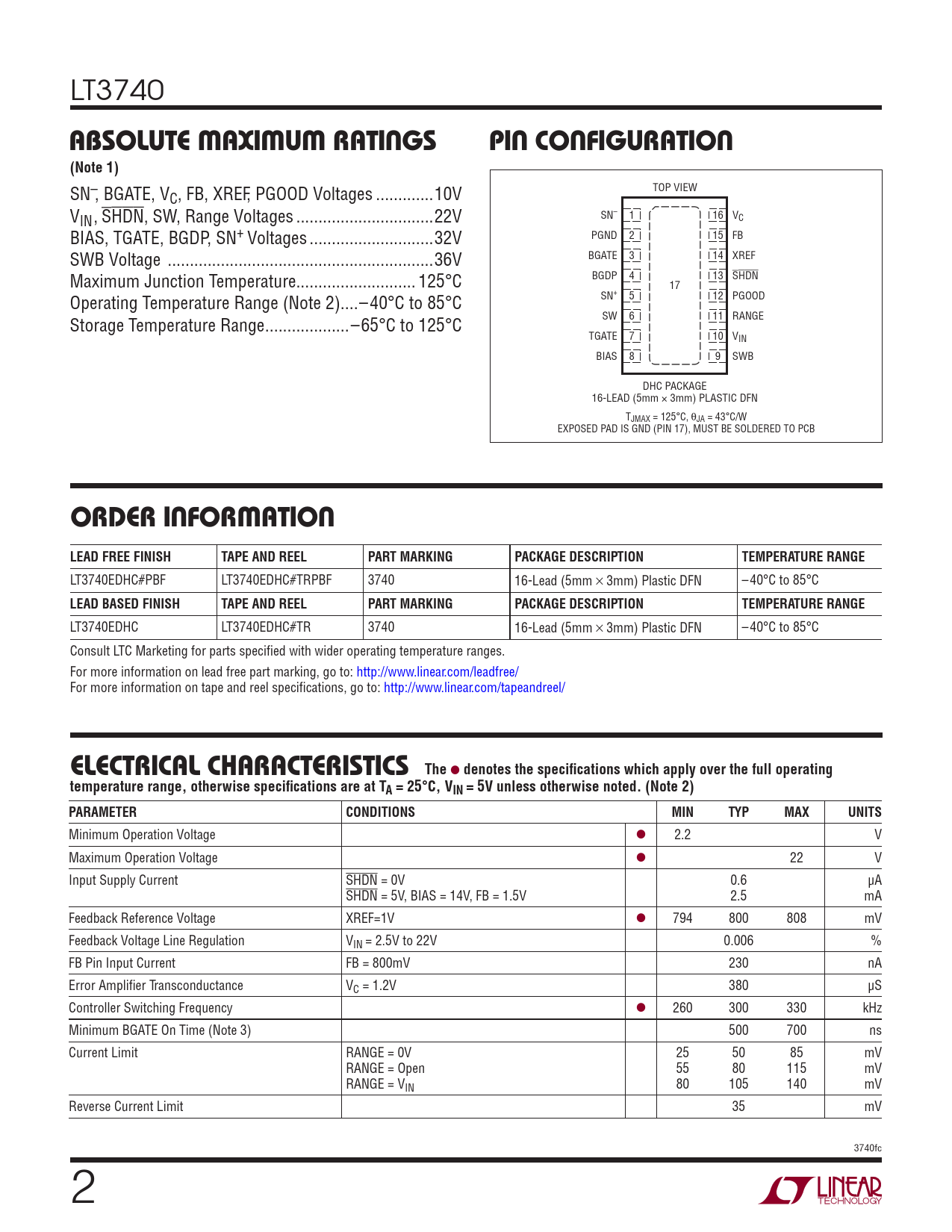

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT3740
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SN–, BGATE, V TOP VIEW C, FB, XREF, PGOOD Voltages ...10V VIN, SHDN, SW, Range Voltages ...22V SN– 1 16 VC BIAS, TGATE, BGDP, SN+ Voltages ..32V PGND 2 15 FB SWB Voltage ..36V BGATE 3 14 XREF Maximum Junction Temperature... 125°C BGDP 4 13 SHDN 17 Operating Temperature Range (Note 2)..–40°C to 85°C SN+ 5 12 PGOOD SW 6 11 RANGE Storage Temperature Range ...–65°C to 125°C TGATE 7 10 VIN BIAS 8 9 SWB DHC PACKAGE 16-LEAD (5mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD IS GND (PIN 17), MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3740EDHC#PBF LT3740EDHC#TRPBF 3740 16-Lead (5mm × 3mm) Plastic DFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3740EDHC LT3740EDHC#TR 3740 16-Lead (5mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
