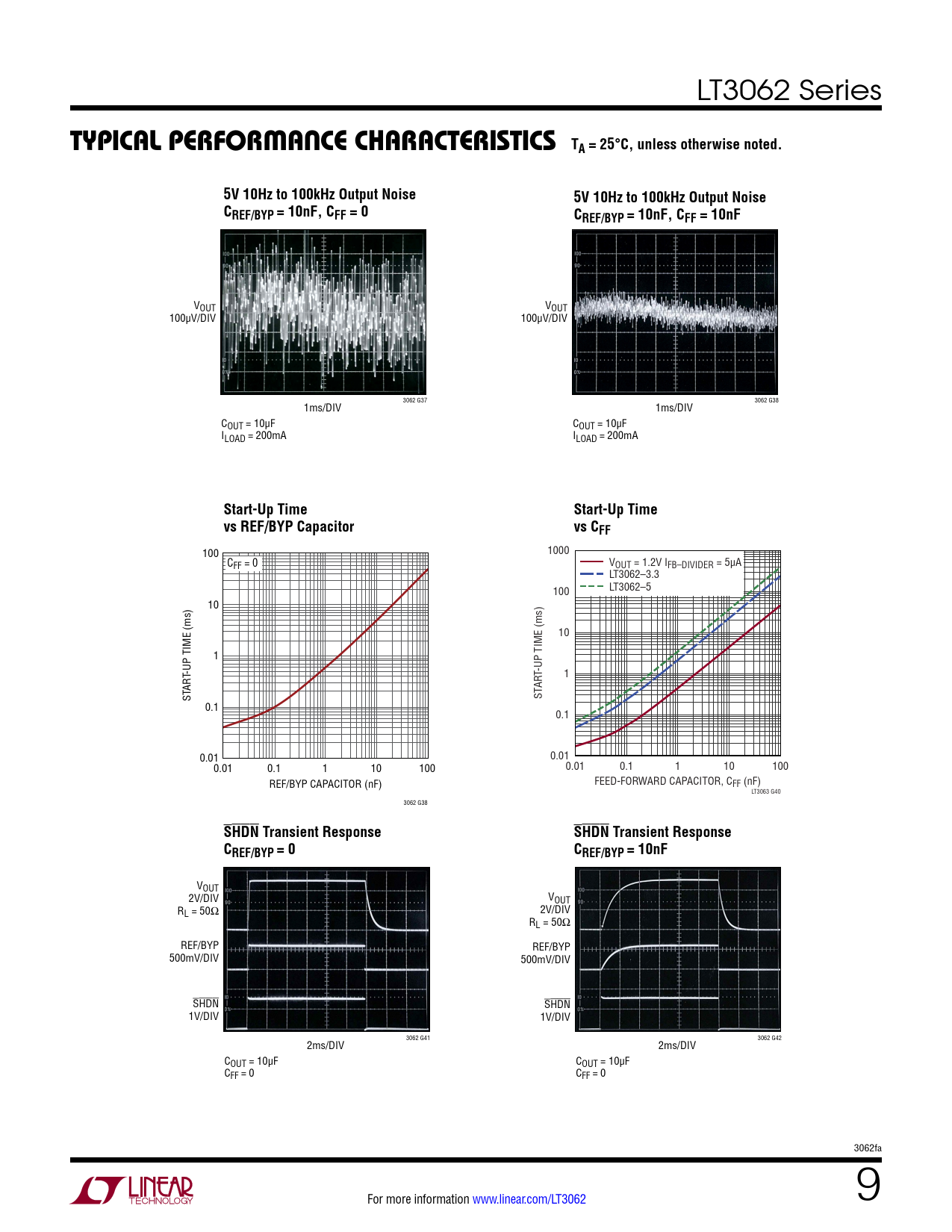

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. 5V 10Hz to 100kHz Output Noise
Línea de modelo para esta hoja de datos
- LT3062EDCB#PBF LT3062EDCB#TRMPBF LT3062EDCB#TRMPBF LT3062EDCB#TRPBF LT3062EDCB#TRPBF LT3062EDCB-3.3#PBF LT3062EDCB-3.3#TRMPBF LT3062EDCB-3.3#TRMPBF LT3062EDCB-3.3#TRPBF LT3062EDCB-3.3#TRPBF LT3062EDCB-5#PBF LT3062EDCB-5#TRMPBF LT3062EDCB-5#TRMPBF LT3062EDCB-5#TRPBF LT3062EDCB-5#TRPBF LT3062EMS8E#PBF LT3062EMS8E#PBF LT3062EMS8E#TRPBF LT3062EMS8E#TRPBF LT3062EMS8E-3.3#PBF LT3062EMS8E-3.3#PBF LT3062EMS8E-3.3#TRPBF LT3062EMS8E-3.3#TRPBF LT3062EMS8E-5#PBF LT3062EMS8E-5#PBF LT3062EMS8E-5#TRPBF LT3062EMS8E-5#TRPBF LT3062HDCB#PBF LT3062HDCB#TRMPBF LT3062HDCB#TRMPBF LT3062HDCB#TRPBF LT3062HDCB#TRPBF LT3062HMS8E#PBF LT3062HMS8E#PBF LT3062HMS8E#TRPBF LT3062HMS8E#TRPBF LT3062IDCB#PBF LT3062IDCB#TRMPBF LT3062IDCB#TRMPBF LT3062IDCB#TRPBF LT3062IDCB#TRPBF LT3062IDCB-3.3#PBF LT3062IDCB-3.3#TRMPBF LT3062IDCB-3.3#TRMPBF LT3062IDCB-3.3#TRPBF LT3062IDCB-3.3#TRPBF LT3062IDCB-5#PBF LT3062IDCB-5#TRMPBF LT3062IDCB-5#TRMPBF LT3062IDCB-5#TRPBF LT3062IDCB-5#TRPBF LT3062IMS8E#PBF LT3062IMS8E#PBF LT3062IMS8E#TRPBF LT3062IMS8E#TRPBF LT3062IMS8E-3.3#PBF LT3062IMS8E-3.3#PBF LT3062IMS8E-3.3#TRPBF LT3062IMS8E-3.3#TRPBF LT3062IMS8E-5#PBF LT3062IMS8E-5#PBF LT3062IMS8E-5#TRPBF LT3062IMS8E-5#TRPBF LT3062MPDCB#PBF LT3062MPDCB#TR LT3062MPDCB#TR LT3062MPDCB#TRMPBF LT3062MPDCB#TRMPBF LT3062MPDCB#TRPBF LT3062MPDCB#TRPBF LT3062MPMS8E#PBF LT3062MPMS8E#PBF LT3062MPMS8E#TRPBF LT3062MPMS8E#TRPBF
Versión de texto del documento
LT3062 Series
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. 5V 10Hz to 100kHz Output Noise 5V 10Hz to 100kHz Output Noise CREF/BYP = 10nF, CFF = 0 CREF/BYP = 10nF, CFF = 10nF
VOUT VOUT 100µV/DIV 100µV/DIV 3062 G37 3062 G38 1ms/DIV 1ms/DIV COUT = 10µF COUT = 10µF ILOAD = 200mA ILOAD = 200mA
Start-Up Time Start-Up Time vs REF/BYP Capacitor vs CFF
100 1000 CFF = 0 VOUT = 1.2V IFB–DIVIDER = 5µA LT3062–3.3 LT3062–5 100 10 10 1 T-UP TIME (ms) T-UP TIME (ms) 1 AR AR ST ST 0.1 0.1 0.01 0.01 0.01 0.1 1 10 100 0.01 0.1 1 10 100 REF/BYP CAPACITOR (nF) FEED-FORWARD CAPACITOR, CFF (nF) LT3063 G40 3062 G38
SHDN Transient Response SHDN Transient Response CREF/BYP = 0 CREF/BYP = 10nF
VOUT 2V/DIV VOUT RL = 50Ω 2V/DIV RL = 50Ω REF/BYP REF/BYP 500mV/DIV 500mV/DIV SHDN SHDN 1V/DIV 1V/DIV 3062 G41 3062 G42 2ms/DIV 2ms/DIV COUT = 10µF COUT = 10µF CFF = 0 CFF = 0 3062fa For more information www.linear.com/LT3062 9
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. 5V 10Hz to 100kHz Output Noise 5V 10Hz to 100kHz Output Noise CREF/BYP = 10nF, CFF = 0 CREF/BYP = 10nF, CFF = 10nF
VOUT VOUT 100µV/DIV 100µV/DIV 3062 G37 3062 G38 1ms/DIV 1ms/DIV COUT = 10µF COUT = 10µF ILOAD = 200mA ILOAD = 200mA
Start-Up Time Start-Up Time vs REF/BYP Capacitor vs CFF
100 1000 CFF = 0 VOUT = 1.2V IFB–DIVIDER = 5µA LT3062–3.3 LT3062–5 100 10 10 1 T-UP TIME (ms) T-UP TIME (ms) 1 AR AR ST ST 0.1 0.1 0.01 0.01 0.01 0.1 1 10 100 0.01 0.1 1 10 100 REF/BYP CAPACITOR (nF) FEED-FORWARD CAPACITOR, CFF (nF) LT3063 G40 3062 G38
SHDN Transient Response SHDN Transient Response CREF/BYP = 0 CREF/BYP = 10nF
VOUT 2V/DIV VOUT RL = 50Ω 2V/DIV RL = 50Ω REF/BYP REF/BYP 500mV/DIV 500mV/DIV SHDN SHDN 1V/DIV 1V/DIV 3062 G41 3062 G42 2ms/DIV 2ms/DIV COUT = 10µF COUT = 10µF CFF = 0 CFF = 0 3062fa For more information www.linear.com/LT3062 9
