TYPICAL PERFORMANCE CHARACTERISTICS TJ = 25°C, unless otherwise noted. GND Pin Current LT3050-5. GND Pin Current vs ILOAD
Línea de modelo para esta hoja de datos
- LT3050EDDB#PBF LT3050EDDB#TRMPBF LT3050EDDB#TRMPBF LT3050EDDB#TRPBF LT3050EDDB#TRPBF LT3050EDDB-3.3#PBF LT3050EDDB-3.3#TRMPBF LT3050EDDB-3.3#TRMPBF LT3050EDDB-3.3#TRPBF LT3050EDDB-3.3#TRPBF LT3050EDDB-5#PBF LT3050EDDB-5#TRMPBF LT3050EDDB-5#TRMPBF LT3050EDDB-5#TRPBF LT3050EDDB-5#TRPBF LT3050EMSE#PBF LT3050EMSE#PBF LT3050EMSE#TRPBF LT3050EMSE#TRPBF LT3050EMSE-3.3#PBF LT3050EMSE-3.3#PBF LT3050EMSE-3.3#TRPBF LT3050EMSE-3.3#TRPBF LT3050EMSE-5#PBF LT3050EMSE-5#PBF LT3050EMSE-5#TRPBF LT3050EMSE-5#TRPBF LT3050IDDB#PBF LT3050IDDB#TRMPBF LT3050IDDB#TRMPBF LT3050IDDB#TRPBF LT3050IDDB#TRPBF LT3050IDDB-3.3#PBF LT3050IDDB-3.3#TRMPBF LT3050IDDB-3.3#TRMPBF LT3050IDDB-3.3#TRPBF LT3050IDDB-3.3#TRPBF LT3050IDDB-5#PBF LT3050IDDB-5#TRMPBF LT3050IDDB-5#TRMPBF LT3050IDDB-5#TRPBF LT3050IDDB-5#TRPBF LT3050IMSE#PBF LT3050IMSE#PBF LT3050IMSE#TRPBF LT3050IMSE#TRPBF LT3050IMSE-3.3#PBF LT3050IMSE-3.3#PBF LT3050IMSE-3.3#TRPBF LT3050IMSE-3.3#TRPBF LT3050IMSE-5#PBF LT3050IMSE-5#PBF LT3050IMSE-5#TRPBF LT3050IMSE-5#TRPBF LT3050MPMSE LT3050MPMSE#PBF LT3050MPMSE#PBF LT3050MPMSE#TRPBF LT3050MPMSE#TRPBF LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#TRPBF LT3050MPMSE-3.3#TRPBF LT3050MPMSE-5#PBF LT3050MPMSE-5#PBF LT3050MPMSE-5#TRPBF LT3050MPMSE-5#TRPBF
Versión de texto del documento
LT3050 Series

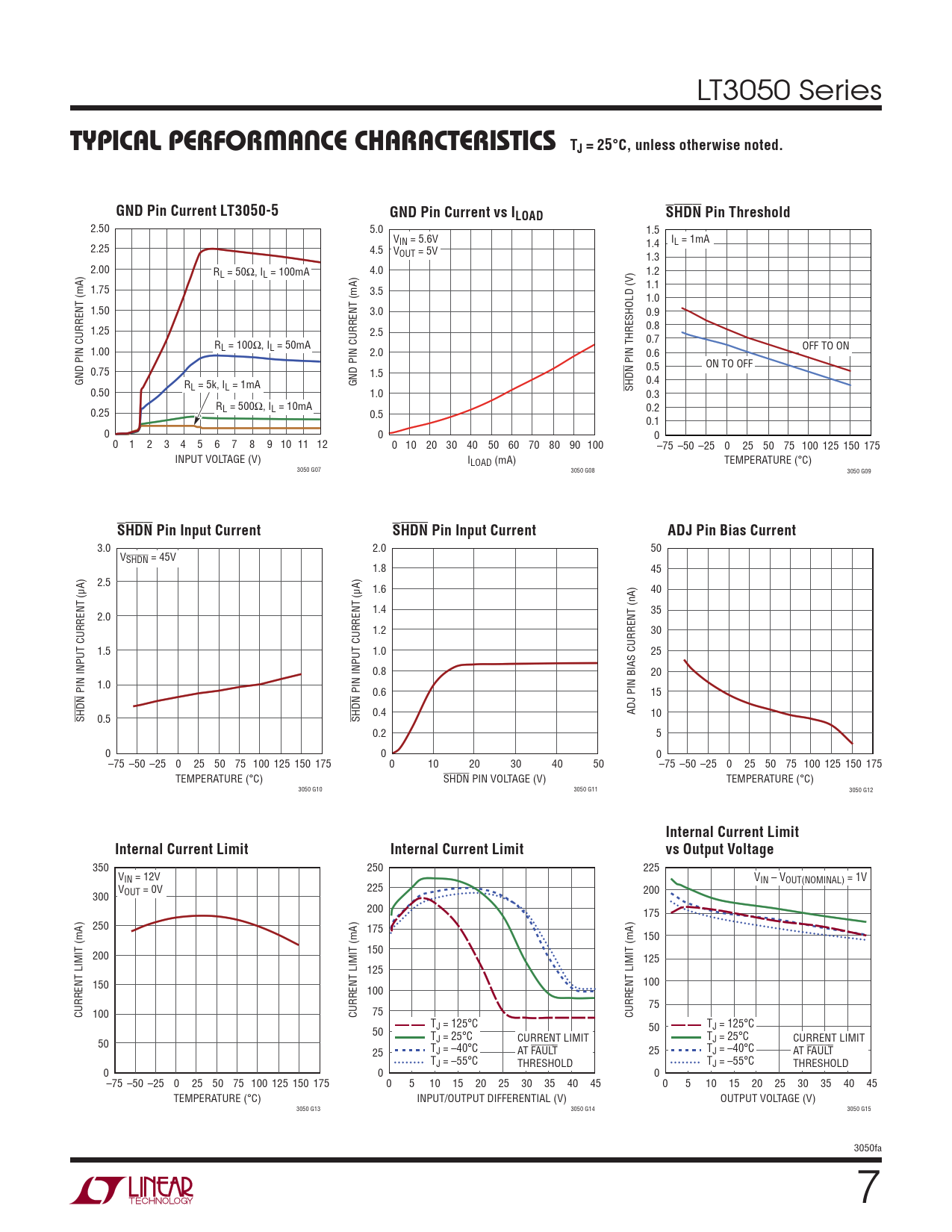

TYPICAL PERFORMANCE CHARACTERISTICS TJ = 25°C, unless otherwise noted. GND Pin Current LT3050-5 GND Pin Current vs ILOAD SHDN Pin Threshold
