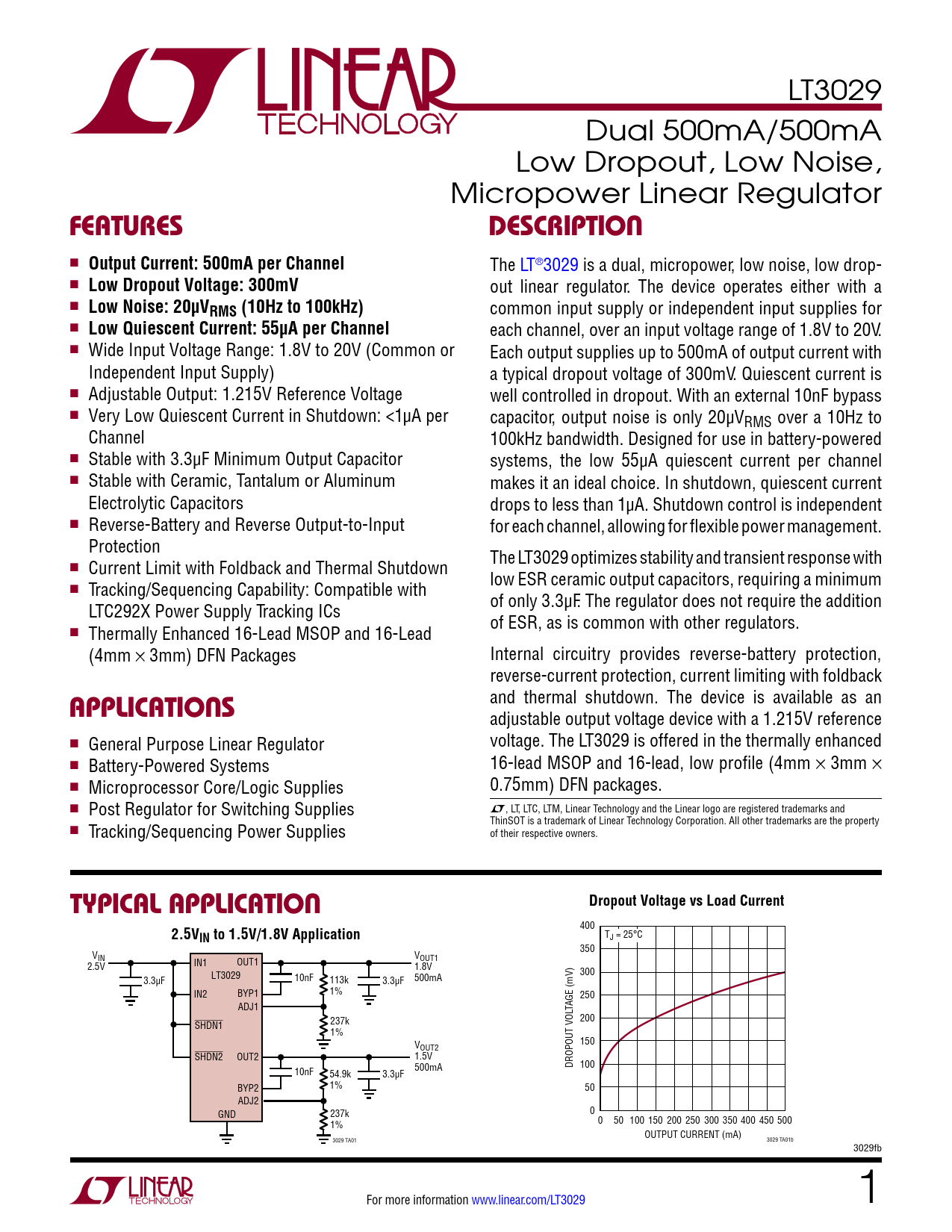

FeaTures. DescripTion. Output Current: 500mA per Channel. Low Dropout Voltage: 300mV. Low Noise: 20µVRMS (10Hz to 100kHz)

Datasheet LT3029 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT3029 Dual 500mA/500mA Low Dropout, Low Noise, Micropower Linear Regulator
FeaTures DescripTion
n
Output Current: 500mA per Channel
The LT®3029 is a dual, micropower, low noise, low drop- n
Low Dropout Voltage: 300mV
out linear regulator. The device operates either with a n
Low Noise: 20µVRMS (10Hz to 100kHz)
common input supply or independent input supplies for n
Low Quiescent Current: 55µA per Channel
each channel, over an input voltage range of 1.8V to 20V. n Wide Input Voltage Range: 1.8V to 20V (Common or Each output supplies up to 500mA of output current with Independent Input Supply) a typical dropout voltage of 300mV. Quiescent current is n Adjustable Output: 1.215V Reference Voltage well controlled in dropout. With an external 10nF bypass n Very Low Quiescent Current in Shutdown: <1µA per capacitor, output noise is only 20µVRMS over a 10Hz to Channel 100kHz bandwidth. Designed for use in battery-powered n Stable with 3.3µF Minimum Output Capacitor systems, the low 55µA quiescent current per channel n Stable with Ceramic, Tantalum or Aluminum makes it an ideal choice. In shutdown, quiescent current Electrolytic Capacitors drops to less than 1µA. Shutdown control is independent n Reverse-Battery and Reverse Output-to-Input for each channel, allowing for flexible power management. Protection The LT3029 optimizes stability and transient response with n Current Limit with Foldback and Thermal Shutdown low ESR ceramic output capacitors, requiring a minimum n Tracking/Sequencing Capability: Compatible with of only 3.3µF. The regulator does not require the addition LTC292X Power Supply Tracking ICs of ESR, as is common with other regulators. n Thermally Enhanced 16-Lead MSOP and 16-Lead (4mm × 3mm) DFN Packages Internal circuitry provides reverse-battery protection, reverse-current protection, current limiting with foldback
applicaTions
and thermal shutdown. The device is available as an adjustable output voltage device with a 1.215V reference n General Purpose Linear Regulator voltage. The LT3029 is offered in the thermally enhanced n Battery-Powered Systems 16-lead MSOP and 16-lead, low profile (4mm × 3mm × n Microprocessor Core/Logic Supplies 0.75mm) DFN packages. n Post Regulator for Switching Supplies L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property n Tracking/Sequencing Power Supplies of their respective owners.
Typical applicaTion Dropout Voltage vs Load Current 2.5V
