| Descripción | 250mA, 4V to 80V Low Dropout Micropower Linear Regulator |
| Páginas / Página | 16 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| Formato / tamaño de archivo | PDF / 188 Kb |
| Idioma del documento | Inglés |

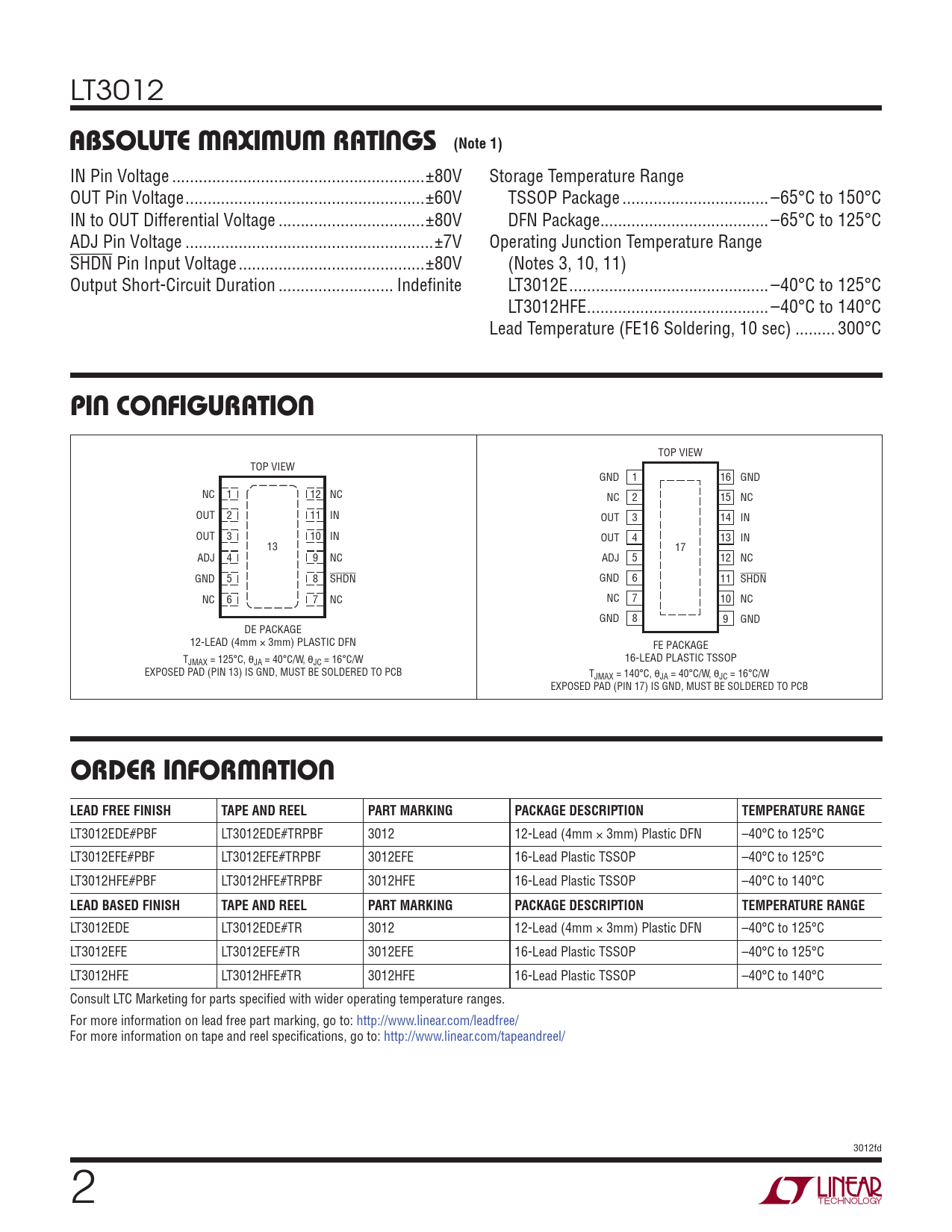

ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT3012
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±80V Storage Temperature Range OUT Pin Voltage ..±60V TSSOP Package ... –65°C to 150°C IN to OUT Differential Voltage ...±80V DFN Package .. –65°C to 125°C ADJ Pin Voltage ..±7V Operating Junction Temperature Range SHDN Pin Input Voltage ..±80V (Notes 3, 10, 11) Output Short-Circuit Duration .. Indefi nite LT3012E ... –40°C to 125°C LT3012HFE ... –40°C to 140°C Lead Temperature (FE16 Soldering, 10 sec) ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW GND 1 16 GND NC 1 12 NC NC 2 15 NC OUT 2 11 IN OUT 3 14 IN OUT 3 10 IN OUT 4 13 IN 13 17 ADJ 4 9 NC ADJ 5 12 NC GND 5 8 SHDN GND 6 11 SHDN NC 6 7 NC NC 7 10 NC GND 8 9 GND DE PACKAGE 12-LEAD (4mm × 3mm) PLASTIC DFN FE PACKAGE T 16-LEAD PLASTIC TSSOP JMAX = 125°C, θJA = 40°C/W, θJC = 16°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB TJMAX = 140°C, θJA = 40°C/W, θJC = 16°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3012EDE#PBF LT3012EDE#TRPBF 3012 12-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3012EFE#PBF LT3012EFE#TRPBF 3012EFE 16-Lead Plastic TSSOP –40°C to 125°C LT3012HFE#PBF LT3012HFE#TRPBF 3012HFE 16-Lead Plastic TSSOP –40°C to 140°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3012EDE LT3012EDE#TR 3012 12-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3012EFE LT3012EFE#TR 3012EFE 16-Lead Plastic TSSOP –40°C to 125°C LT3012HFE LT3012HFE#TR 3012HFE 16-Lead Plastic TSSOP –40°C to 140°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3012fd 2
