TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Output Voltage LT3008-5. ADJ Pin Bias Current
Línea de modelo para esta hoja de datos
- LT3008EDC#PBF LT3008EDC#TRMPBF LT3008EDC#TRPBF LT3008EDC-1.2#PBF LT3008EDC-1.2#TRMPBF LT3008EDC-1.2#TRPBF LT3008EDC-1.5#PBF LT3008EDC-1.5#TRMPBF LT3008EDC-1.5#TRPBF LT3008EDC-1.8#PBF LT3008EDC-1.8#TRMPBF LT3008EDC-1.8#TRPBF LT3008EDC-2.5#PBF LT3008EDC-2.5#TRMPBF LT3008EDC-2.5#TRPBF LT3008EDC-3.3#PBF LT3008EDC-3.3#TRMPBF LT3008EDC-3.3#TRPBF LT3008EDC-5#PBF LT3008EDC-5#TRMPBF LT3008EDC-5#TRPBF LT3008ETS8#PBF LT3008ETS8#TRMPBF LT3008ETS8#TRPBF LT3008ETS8-1.2#PBF LT3008ETS8-1.2#TRMPBF LT3008ETS8-1.2#TRPBF LT3008ETS8-1.5#PBF LT3008ETS8-1.5#TRMPBF LT3008ETS8-1.5#TRPBF LT3008ETS8-1.8#PBF LT3008ETS8-1.8#TRMPBF LT3008ETS8-1.8#TRPBF LT3008ETS8-2.5#PBF LT3008ETS8-2.5#TRMPBF LT3008ETS8-2.5#TRPBF LT3008ETS8-3.3#PBF LT3008ETS8-3.3#TRMPBF LT3008ETS8-3.3#TRPBF LT3008ETS8-5#PBF LT3008ETS8-5#TRMPBF LT3008ETS8-5#TRPBF LT3008IDC#PBF LT3008IDC#TRMPBF LT3008IDC#TRPBF LT3008IDC-1.2#PBF LT3008IDC-1.2#TRMPBF LT3008IDC-1.2#TRPBF LT3008IDC-1.5#PBF LT3008IDC-1.5#TRMPBF LT3008IDC-1.5#TRPBF LT3008IDC-1.8#PBF LT3008IDC-1.8#TRMPBF LT3008IDC-1.8#TRPBF LT3008IDC-2.5#PBF LT3008IDC-2.5#TRMPBF LT3008IDC-2.5#TRPBF LT3008IDC-3.3#PBF LT3008IDC-3.3#TRMPBF LT3008IDC-3.3#TRPBF LT3008IDC-5#PBF LT3008IDC-5#TRMPBF LT3008IDC-5#TRPBF LT3008ITS8#PBF LT3008ITS8#TRMPBF LT3008ITS8#TRPBF LT3008ITS8-1.2#PBF LT3008ITS8-1.2#TRMPBF LT3008ITS8-1.2#TRPBF LT3008ITS8-1.5#PBF LT3008ITS8-1.5#TRMPBF LT3008ITS8-1.5#TRPBF LT3008ITS8-1.8#PBF LT3008ITS8-1.8#TRMPBF LT3008ITS8-1.8#TRPBF LT3008ITS8-2.5#PBF LT3008ITS8-2.5#TRMPBF LT3008ITS8-2.5#TRPBF LT3008ITS8-3.3#PBF LT3008ITS8-3.3#TRMPBF LT3008ITS8-3.3#TRPBF LT3008ITS8-5#PBF LT3008ITS8-5#TRMPBF LT3008ITS8-5#TRPBF LT3008MPTS8 LT3008MPTS8#PBF LT3008MPTS8#TR LT3008MPTS8#TRM LT3008MPTS8#TRMPBF LT3008MPTS8#TRPBF LT3008MPTS8-1.2#PBF LT3008MPTS8-1.2#TRMPBF LT3008MPTS8-1.2#TRPBF LT3008MPTS8-1.5#PBF LT3008MPTS8-1.5#TRMPBF LT3008MPTS8-1.5#TRPBF LT3008MPTS8-1.8#PBF LT3008MPTS8-1.8#TRMPBF LT3008MPTS8-1.8#TRPBF LT3008MPTS8-2.5#PBF LT3008MPTS8-2.5#TRMPBF LT3008MPTS8-2.5#TRPBF LT3008MPTS8-3.3 LT3008MPTS8-3.3#PBF LT3008MPTS8-3.3#TRM LT3008MPTS8-3.3#TRMPBF LT3008MPTS8-3.3#TRPBF LT3008MPTS8-5#PBF LT3008MPTS8-5#TRMPBF LT3008MPTS8-5#TRPBF
- LT3008EDC#TRMPBF LT3008EDC#TRPBF LT3008EDC-1.2#TRMPBF LT3008EDC-1.2#TRPBF LT3008EDC-1.5#TRMPBF LT3008EDC-1.5#TRPBF LT3008EDC-1.8#TRMPBF LT3008EDC-1.8#TRPBF LT3008EDC-2.5#TRMPBF LT3008EDC-2.5#TRPBF LT3008EDC-3.3#TRMPBF LT3008EDC-3.3#TRPBF LT3008EDC-5#TRMPBF LT3008EDC-5#TRPBF LT3008ETS8#TRMPBF LT3008ETS8#TRPBF LT3008ETS8-1.2#TRMPBF LT3008ETS8-1.2#TRPBF LT3008ETS8-1.5#TRMPBF LT3008ETS8-1.5#TRPBF LT3008ETS8-1.8#TRMPBF LT3008ETS8-1.8#TRPBF LT3008ETS8-2.5#TRMPBF LT3008ETS8-2.5#TRPBF LT3008ETS8-3.3#TRMPBF LT3008ETS8-3.3#TRPBF LT3008ETS8-5#TRMPBF LT3008ETS8-5#TRPBF LT3008IDC#TRMPBF LT3008IDC#TRPBF LT3008IDC-1.2#TRMPBF LT3008IDC-1.2#TRPBF LT3008IDC-1.5#TRMPBF LT3008IDC-1.5#TRPBF LT3008IDC-1.8#TRMPBF LT3008IDC-1.8#TRPBF LT3008IDC-2.5#TRMPBF LT3008IDC-2.5#TRPBF LT3008IDC-3.3#TRMPBF LT3008IDC-3.3#TRPBF LT3008IDC-5#TRMPBF LT3008IDC-5#TRPBF LT3008ITS8#TRMPBF LT3008ITS8#TRPBF LT3008ITS8-1.2#TRMPBF LT3008ITS8-1.2#TRPBF LT3008ITS8-1.5#TRMPBF LT3008ITS8-1.5#TRPBF LT3008ITS8-1.8#TRMPBF LT3008ITS8-1.8#TRPBF LT3008ITS8-2.5#TRMPBF LT3008ITS8-2.5#TRPBF LT3008ITS8-3.3#TRMPBF LT3008ITS8-3.3#TRPBF LT3008ITS8-5#TRMPBF LT3008ITS8-5#TRPBF LT3008MPTS8#TRMPBF LT3008MPTS8#TRPBF LT3008MPTS8-1.2#TRMPBF LT3008MPTS8-1.2#TRPBF LT3008MPTS8-1.5#TRMPBF LT3008MPTS8-1.5#TRPBF LT3008MPTS8-1.8#TRMPBF LT3008MPTS8-1.8#TRPBF LT3008MPTS8-2.5#TRMPBF LT3008MPTS8-2.5#TRPBF LT3008MPTS8-3.3#TRMPBF LT3008MPTS8-3.3#TRPBF LT3008MPTS8-5#TRMPBF LT3008MPTS8-5#TRPBF
Versión de texto del documento
LT3008 Series

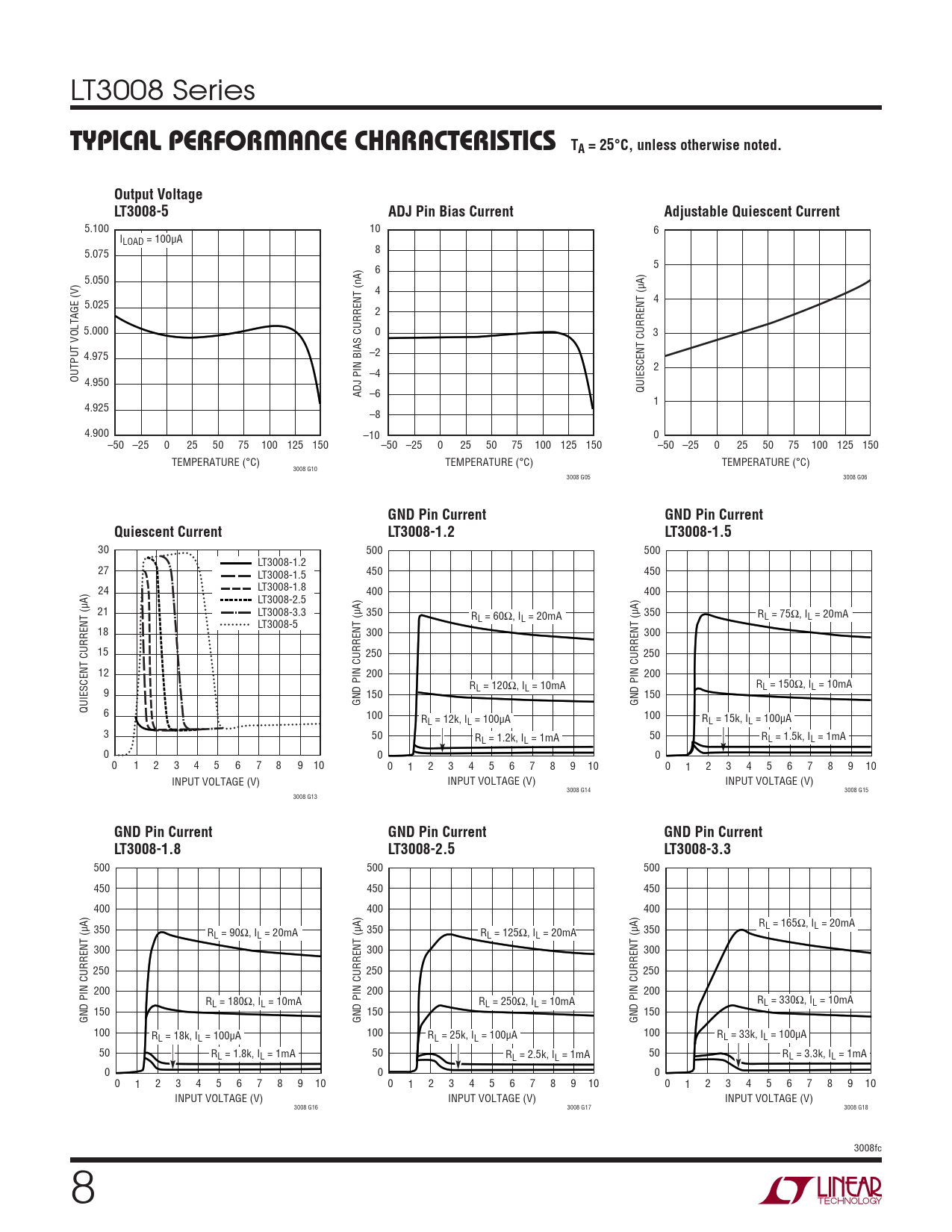

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Output Voltage LT3008-5 ADJ Pin Bias Current Adjustable Quiescent Current
