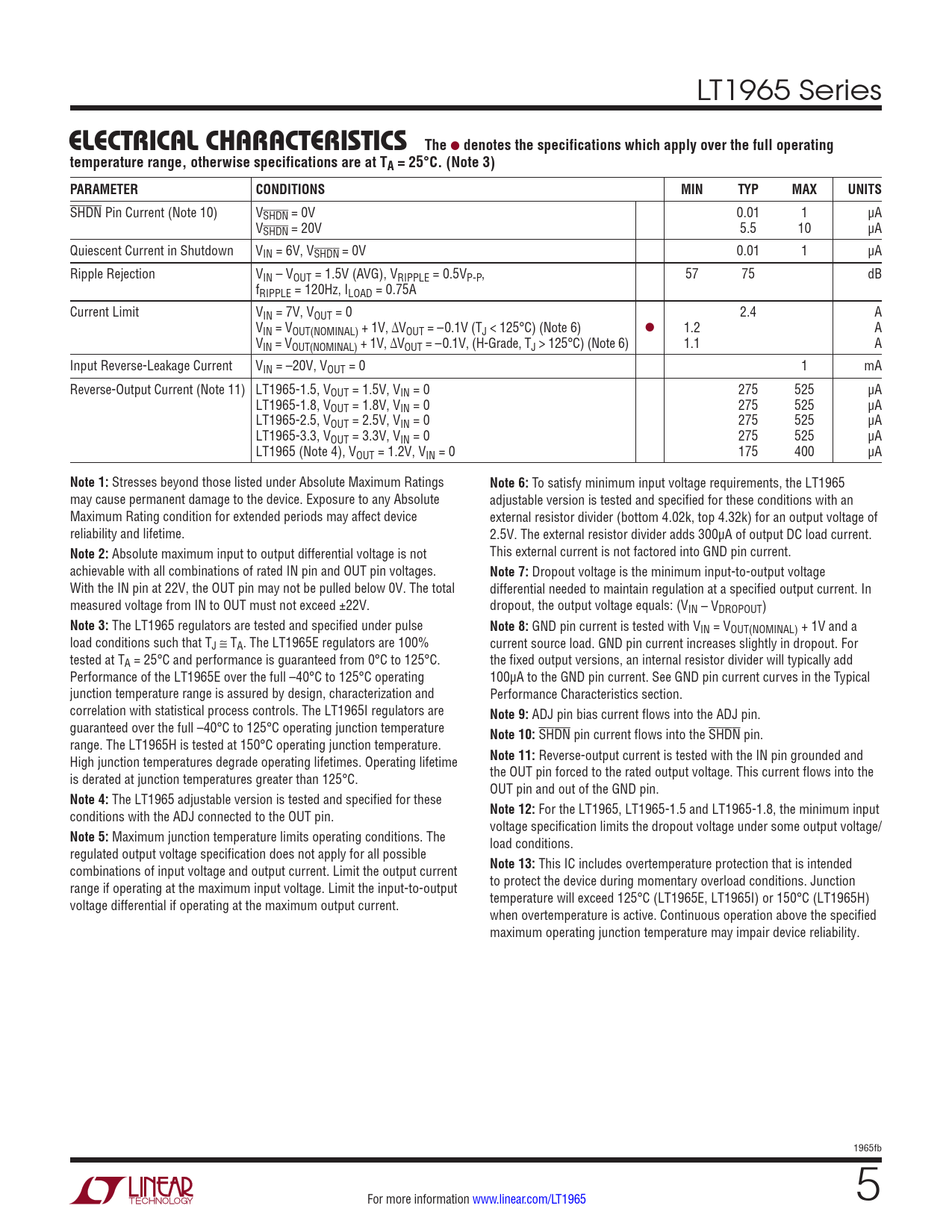

LT1965 Series
e lectrical characteristics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
SHDN Pin Current (Note 10) VSHDN = 0V 0.01 1 µA VSHDN = 20V 5.5 10 µA Quiescent Current in Shutdown VIN = 6V, VSHDN = 0V 0.01 1 µA Ripple Rejection VIN – VOUT = 1.5V (AVG), VRIPPLE = 0.5VP-P, 57 75 dB fRIPPLE = 120Hz, ILOAD = 0.75A Current Limit VIN = 7V, VOUT = 0 2.4 A VIN = VOUT(NOMINAL) + 1V, ∆VOUT = –0.1V (TJ < 125°C) (Note 6) l 1.2 A VIN = VOUT(NOMINAL) + 1V, ∆VOUT = –0.1V, (H-Grade, TJ > 125°C) (Note 6) 1.1 A Input Reverse-Leakage Current VIN = –20V, VOUT = 0 1 mA Reverse-Output Current (Note 11) LT1965-1.5, VOUT = 1.5V, VIN = 0 275 525 µA LT1965-1.8, VOUT = 1.8V, VIN = 0 275 525 µA LT1965-2.5, VOUT = 2.5V, VIN = 0 275 525 µA LT1965-3.3, VOUT = 3.3V, VIN = 0 275 525 µA LT1965 (Note 4), VOUT = 1.2V, VIN = 0 175 400 µA
