Datasheet LT1761 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 100mA, Low Noise, LDO Micropower Regulators in TSOT-23 |
| Páginas / Página | 22 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |
ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Línea de modelo para esta hoja de datos
- LT1761ES5-1.2#PBF LT1761ES5-1.2#TRMPBF LT1761ES5-1.2#TRMPBF LT1761ES5-1.2#TRPBF LT1761ES5-1.2#TRPBF LT1761ES5-1.5#PBF LT1761ES5-1.5#TRMPBF LT1761ES5-1.5#TRMPBF LT1761ES5-1.5#TRPBF LT1761ES5-1.5#TRPBF LT1761ES5-1.8#PBF LT1761ES5-1.8#TRMPBF LT1761ES5-1.8#TRMPBF LT1761ES5-1.8#TRPBF LT1761ES5-1.8#TRPBF LT1761ES5-2#PBF LT1761ES5-2#TRMPBF LT1761ES5-2#TRMPBF LT1761ES5-2#TRPBF LT1761ES5-2#TRPBF LT1761ES5-2.5#PBF LT1761ES5-2.5#TRMPBF LT1761ES5-2.5#TRMPBF LT1761ES5-2.5#TRPBF LT1761ES5-2.5#TRPBF LT1761ES5-2.8#PBF LT1761ES5-2.8#TRMPBF LT1761ES5-2.8#TRMPBF LT1761ES5-2.8#TRPBF LT1761ES5-2.8#TRPBF LT1761ES5-3#PBF LT1761ES5-3#TRMPBF LT1761ES5-3#TRMPBF LT1761ES5-3#TRPBF LT1761ES5-3#TRPBF LT1761ES5-3.3#PBF LT1761ES5-3.3#TRMPBF LT1761ES5-3.3#TRMPBF LT1761ES5-3.3#TRPBF LT1761ES5-3.3#TRPBF LT1761ES5-5#PBF LT1761ES5-5#TRMPBF LT1761ES5-5#TRMPBF LT1761ES5-5#TRPBF LT1761ES5-5#TRPBF LT1761ES5-BYP#PBF LT1761ES5-BYP#TRMPBF LT1761ES5-BYP#TRMPBF LT1761ES5-BYP#TRPBF LT1761ES5-BYP#TRPBF LT1761ES5-SD#PBF LT1761ES5-SD#TRMPBF LT1761ES5-SD#TRMPBF LT1761ES5-SD#TRPBF LT1761ES5-SD#TRPBF LT1761IS5-1.2#PBF LT1761IS5-1.2#TRMPBF LT1761IS5-1.2#TRMPBF LT1761IS5-1.2#TRPBF LT1761IS5-1.2#TRPBF LT1761IS5-1.5#PBF LT1761IS5-1.5#TRMPBF LT1761IS5-1.5#TRMPBF LT1761IS5-1.5#TRPBF LT1761IS5-1.5#TRPBF LT1761IS5-1.8#PBF LT1761IS5-1.8#TRMPBF LT1761IS5-1.8#TRMPBF LT1761IS5-1.8#TRPBF LT1761IS5-1.8#TRPBF LT1761IS5-2#PBF LT1761IS5-2#TRMPBF LT1761IS5-2#TRMPBF LT1761IS5-2#TRPBF LT1761IS5-2#TRPBF LT1761IS5-2.5#PBF LT1761IS5-2.5#TRMPBF LT1761IS5-2.5#TRMPBF LT1761IS5-2.5#TRPBF LT1761IS5-2.5#TRPBF LT1761IS5-2.8#PBF LT1761IS5-2.8#TRMPBF LT1761IS5-2.8#TRMPBF LT1761IS5-2.8#TRPBF LT1761IS5-2.8#TRPBF LT1761IS5-3#PBF LT1761IS5-3#TRMPBF LT1761IS5-3#TRMPBF LT1761IS5-3#TRPBF LT1761IS5-3#TRPBF LT1761IS5-3.3#PBF LT1761IS5-3.3#TRMPBF LT1761IS5-3.3#TRMPBF LT1761IS5-3.3#TRPBF LT1761IS5-3.3#TRPBF LT1761IS5-5#PBF LT1761IS5-5#TRMPBF LT1761IS5-5#TRMPBF LT1761IS5-5#TRPBF LT1761IS5-5#TRPBF LT1761IS5-BYP#PBF LT1761IS5-BYP#TRMPBF LT1761IS5-BYP#TRMPBF LT1761IS5-BYP#TRPBF LT1761IS5-BYP#TRPBF LT1761IS5-SD#PBF LT1761IS5-SD#TRMPBF LT1761IS5-SD#TRMPBF LT1761IS5-SD#TRPBF LT1761IS5-SD#TRPBF LT1761MPS5-1.8#TRMPBF LT1761MPS5-1.8#TRMPBF LT1761MPS5-1.8#TRPBF LT1761MPS5-1.8#TRPBF LT1761MPS5-3.3 LT1761MPS5-3.3#PBF LT1761MPS5-3.3#TR LT1761MPS5-3.3#TRM LT1761MPS5-3.3#TRMPBF LT1761MPS5-3.3#TRMPBF LT1761MPS5-3.3#TRPBF LT1761MPS5-3.3#TRPBF LT1761MPS5-5#PBF LT1761MPS5-5#TR LT1761MPS5-5#TRM LT1761MPS5-5#TRMPBF LT1761MPS5-5#TRMPBF LT1761MPS5-5#TRPBF LT1761MPS5-5#TRPBF
Versión de texto del documento

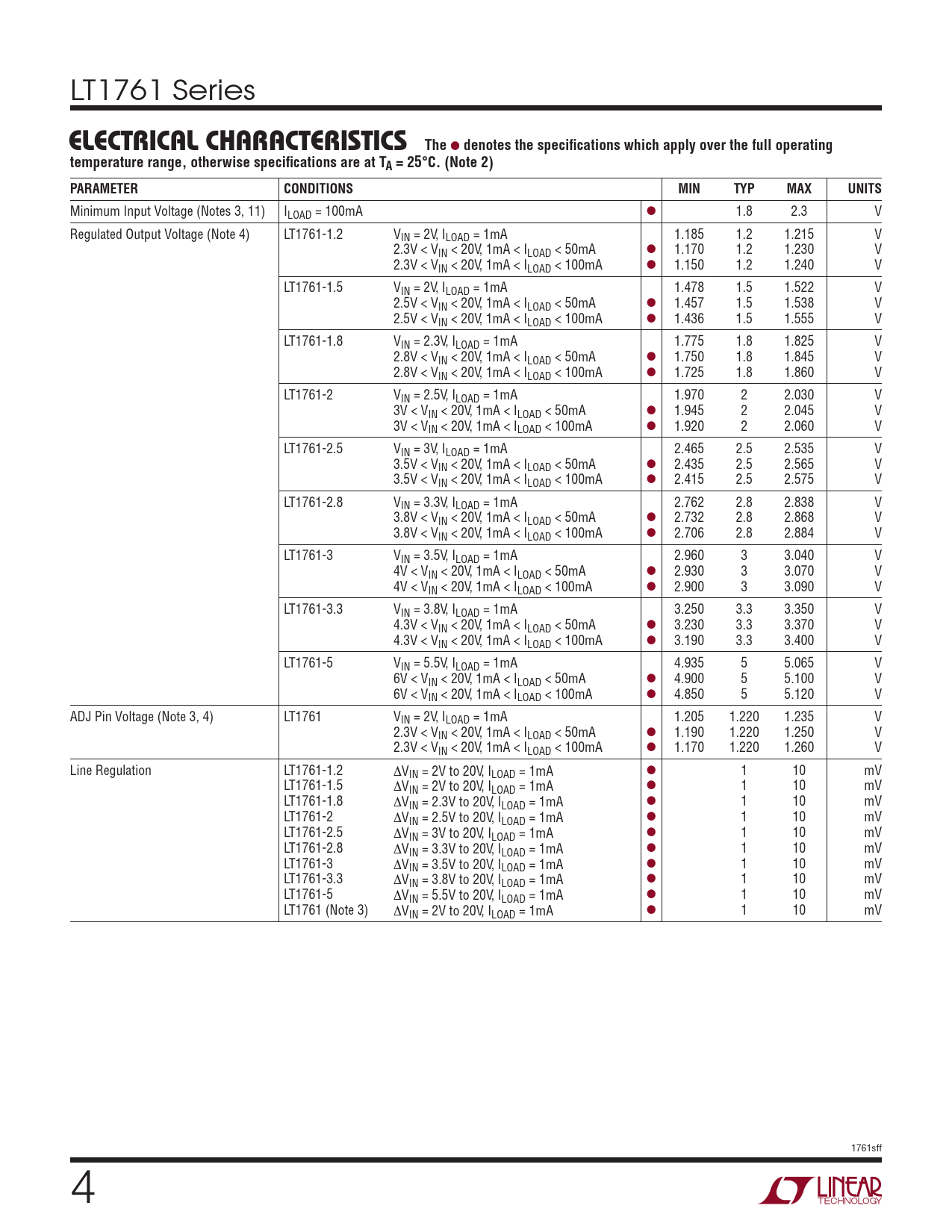

LT1761 Series
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage (Notes 3, 11) ILOAD = 100mA l 1.8 2.3 V Regulated Output Voltage (Note 4) LT1761-1.2 VIN = 2V, ILOAD = 1mA 1.185 1.2 1.215 V l 2.3V < VIN < 20V, 1mA < ILOAD < 50mA 1.170 1.2 1.230 V 2.3V < VIN < 20V, 1mA < ILOAD < 100mA l 1.150 1.2 1.240 V LT1761-1.5 VIN = 2V, ILOAD = 1mA 1.478 1.5 1.522 V 2.5V < VIN < 20V, 1mA < ILOAD < 50mA l 1.457 1.5 1.538 V 2.5V < VIN < 20V, 1mA < ILOAD < 100mA l 1.436 1.5 1.555 V LT1761-1.8 VIN = 2.3V, ILOAD = 1mA 1.775 1.8 1.825 V 2.8V < VIN < 20V, 1mA < ILOAD < 50mA l 1.750 1.8 1.845 V 2.8V < VIN < 20V, 1mA < ILOAD < 100mA l 1.725 1.8 1.860 V LT1761-2 VIN = 2.5V, ILOAD = 1mA 1.970 2 2.030 V 3V < VIN < 20V, 1mA < ILOAD < 50mA l 1.945 2 2.045 V 3V < VIN < 20V, 1mA < ILOAD < 100mA l 1.920 2 2.060 V LT1761-2.5 VIN = 3V, ILOAD = 1mA 2.465 2.5 2.535 V 3.5V < VIN < 20V, 1mA < ILOAD < 50mA l 2.435 2.5 2.565 V 3.5V < VIN < 20V, 1mA < ILOAD < 100mA l 2.415 2.5 2.575 V LT1761-2.8 VIN = 3.3V, ILOAD = 1mA 2.762 2.8 2.838 V 3.8V < VIN < 20V, 1mA < ILOAD < 50mA l 2.732 2.8 2.868 V 3.8V < VIN < 20V, 1mA < ILOAD < 100mA l 2.706 2.8 2.884 V LT1761-3 VIN = 3.5V, ILOAD = 1mA 2.960 3 3.040 V 4V < VIN < 20V, 1mA < ILOAD < 50mA l 2.930 3 3.070 V 4V < VIN < 20V, 1mA < ILOAD < 100mA l 2.900 3 3.090 V LT1761-3.3 VIN = 3.8V, ILOAD = 1mA 3.250 3.3 3.350 V 4.3V < VIN < 20V, 1mA < ILOAD < 50mA l 3.230 3.3 3.370 V 4.3V < VIN < 20V, 1mA < ILOAD < 100mA l 3.190 3.3 3.400 V LT1761-5 VIN = 5.5V, ILOAD = 1mA 4.935 5 5.065 V 6V < VIN < 20V, 1mA < ILOAD < 50mA l 4.900 5 5.100 V 6V < VIN < 20V, 1mA < ILOAD < 100mA l 4.850 5 5.120 V ADJ Pin Voltage (Note 3, 4) LT1761 VIN = 2V, ILOAD = 1mA 1.205 1.220 1.235 V 2.3V < VIN < 20V, 1mA < ILOAD < 50mA l 1.190 1.220 1.250 V 2.3V < VIN < 20V, 1mA < ILOAD < 100mA l 1.170 1.220 1.260 V Line Regulation LT1761-1.2 ΔV l IN = 2V to 20V, ILOAD = 1mA 1 10 mV LT1761-1.5 ΔV l IN = 2V to 20V, ILOAD = 1mA 1 10 mV LT1761-1.8 ΔV l IN = 2.3V to 20V, ILOAD = 1mA 1 10 mV LT1761-2 ΔV l IN = 2.5V to 20V, ILOAD = 1mA 1 10 mV LT1761-2.5 ΔV l IN = 3V to 20V, ILOAD = 1mA 1 10 mV LT1761-2.8 ΔV l IN = 3.3V to 20V, ILOAD = 1mA 1 10 mV LT1761-3 ΔV l IN = 3.5V to 20V, ILOAD = 1mA 1 10 mV LT1761-3.3 ΔV l IN = 3.8V to 20V, ILOAD = 1mA 1 10 mV LT1761-5 ΔV l IN = 5.5V to 20V, ILOAD = 1mA 1 10 mV LT1761 (Note 3) ΔV l IN = 2V to 20V, ILOAD = 1mA 1 10 mV 1761sff 4 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage (Notes 3, 11) ILOAD = 100mA l 1.8 2.3 V Regulated Output Voltage (Note 4) LT1761-1.2 VIN = 2V, ILOAD = 1mA 1.185 1.2 1.215 V l 2.3V < VIN < 20V, 1mA < ILOAD < 50mA 1.170 1.2 1.230 V 2.3V < VIN < 20V, 1mA < ILOAD < 100mA l 1.150 1.2 1.240 V LT1761-1.5 VIN = 2V, ILOAD = 1mA 1.478 1.5 1.522 V 2.5V < VIN < 20V, 1mA < ILOAD < 50mA l 1.457 1.5 1.538 V 2.5V < VIN < 20V, 1mA < ILOAD < 100mA l 1.436 1.5 1.555 V LT1761-1.8 VIN = 2.3V, ILOAD = 1mA 1.775 1.8 1.825 V 2.8V < VIN < 20V, 1mA < ILOAD < 50mA l 1.750 1.8 1.845 V 2.8V < VIN < 20V, 1mA < ILOAD < 100mA l 1.725 1.8 1.860 V LT1761-2 VIN = 2.5V, ILOAD = 1mA 1.970 2 2.030 V 3V < VIN < 20V, 1mA < ILOAD < 50mA l 1.945 2 2.045 V 3V < VIN < 20V, 1mA < ILOAD < 100mA l 1.920 2 2.060 V LT1761-2.5 VIN = 3V, ILOAD = 1mA 2.465 2.5 2.535 V 3.5V < VIN < 20V, 1mA < ILOAD < 50mA l 2.435 2.5 2.565 V 3.5V < VIN < 20V, 1mA < ILOAD < 100mA l 2.415 2.5 2.575 V LT1761-2.8 VIN = 3.3V, ILOAD = 1mA 2.762 2.8 2.838 V 3.8V < VIN < 20V, 1mA < ILOAD < 50mA l 2.732 2.8 2.868 V 3.8V < VIN < 20V, 1mA < ILOAD < 100mA l 2.706 2.8 2.884 V LT1761-3 VIN = 3.5V, ILOAD = 1mA 2.960 3 3.040 V 4V < VIN < 20V, 1mA < ILOAD < 50mA l 2.930 3 3.070 V 4V < VIN < 20V, 1mA < ILOAD < 100mA l 2.900 3 3.090 V LT1761-3.3 VIN = 3.8V, ILOAD = 1mA 3.250 3.3 3.350 V 4.3V < VIN < 20V, 1mA < ILOAD < 50mA l 3.230 3.3 3.370 V 4.3V < VIN < 20V, 1mA < ILOAD < 100mA l 3.190 3.3 3.400 V LT1761-5 VIN = 5.5V, ILOAD = 1mA 4.935 5 5.065 V 6V < VIN < 20V, 1mA < ILOAD < 50mA l 4.900 5 5.100 V 6V < VIN < 20V, 1mA < ILOAD < 100mA l 4.850 5 5.120 V ADJ Pin Voltage (Note 3, 4) LT1761 VIN = 2V, ILOAD = 1mA 1.205 1.220 1.235 V 2.3V < VIN < 20V, 1mA < ILOAD < 50mA l 1.190 1.220 1.250 V 2.3V < VIN < 20V, 1mA < ILOAD < 100mA l 1.170 1.220 1.260 V Line Regulation LT1761-1.2 ΔV l IN = 2V to 20V, ILOAD = 1mA 1 10 mV LT1761-1.5 ΔV l IN = 2V to 20V, ILOAD = 1mA 1 10 mV LT1761-1.8 ΔV l IN = 2.3V to 20V, ILOAD = 1mA 1 10 mV LT1761-2 ΔV l IN = 2.5V to 20V, ILOAD = 1mA 1 10 mV LT1761-2.5 ΔV l IN = 3V to 20V, ILOAD = 1mA 1 10 mV LT1761-2.8 ΔV l IN = 3.3V to 20V, ILOAD = 1mA 1 10 mV LT1761-3 ΔV l IN = 3.5V to 20V, ILOAD = 1mA 1 10 mV LT1761-3.3 ΔV l IN = 3.8V to 20V, ILOAD = 1mA 1 10 mV LT1761-5 ΔV l IN = 5.5V to 20V, ILOAD = 1mA 1 10 mV LT1761 (Note 3) ΔV l IN = 2V to 20V, ILOAD = 1mA 1 10 mV 1761sff 4 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
