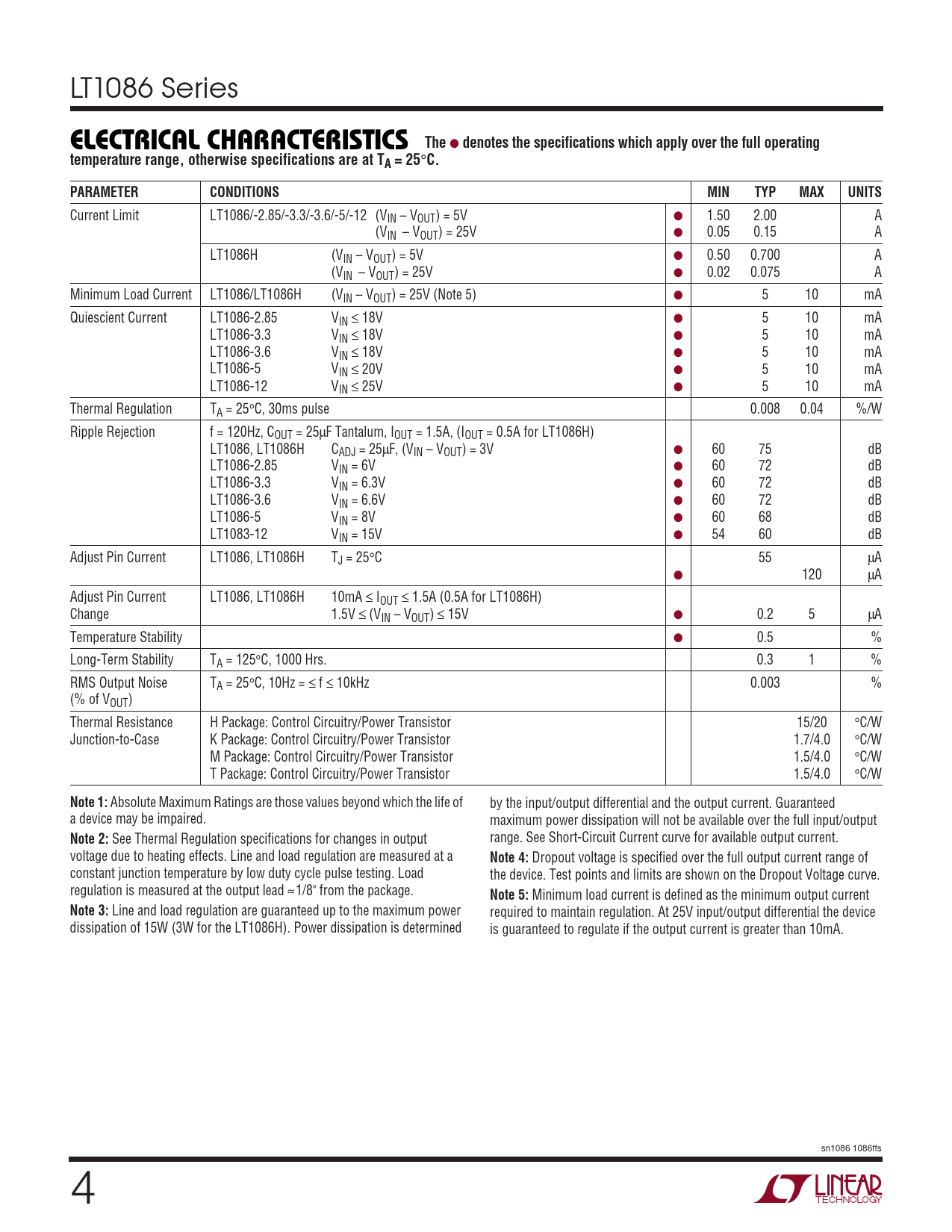

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
- LT1086CM#PBF LT1086CM#PBF LT1086CM#TRPBF LT1086CM#TRPBF LT1086CM-3.3#PBF LT1086CM-3.3#PBF LT1086CM-3.3#TRPBF LT1086CM-3.3#TRPBF LT1086CM-3.6#PBF LT1086CM-3.6#PBF LT1086CM-3.6#TRPBF LT1086CM-3.6#TRPBF LT1086CT#PBF LT1086CT#PBF LT1086CT-12#PBF LT1086CT-12#PBF LT1086CT-2.85#PBF LT1086CT-2.85#PBF LT1086CT-3.3#PBF LT1086CT-3.3#PBF LT1086CT-3.6#PBF LT1086CT-3.6#PBF LT1086CT-5#PBF LT1086CT-5#PBF LT1086IM#PBF LT1086IM#PBF LT1086IM#TRPBF LT1086IM#TRPBF LT1086IM-3.3#PBF LT1086IM-3.3#PBF LT1086IM-3.3#TRPBF LT1086IM-3.3#TRPBF LT1086IT#36PBF LT1086IT#36PBF LT1086IT#PBF LT1086IT#PBF LT1086IT-12#PBF LT1086IT-12#PBF LT1086IT-3.3#PBF LT1086IT-3.3#PBF LT1086IT-5#PBF LT1086IT-5#PBF
Versión de texto del documento
LT1086 Series
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Current Limit LT1086/-2.85/-3.3/-3.6/-5/-12 (VIN – VOUT) = 5V ● 1.50 2.00 A (VIN – VOUT) = 25V ● 0.05 0.15 A LT1086H (VIN – VOUT) = 5V ● 0.50 0.700 A (VIN – VOUT) = 25V ● 0.02 0.075 A Minimum Load Current LT1086/LT1086H (VIN – VOUT) = 25V (Note 5) ● 5 10 mA Quiescient Current LT1086-2.85 VIN ≤ 18V ● 5 10 mA LT1086-3.3 VIN ≤ 18V ● 5 10 mA LT1086-3.6 VIN ≤ 18V ● 5 10 mA LT1086-5 VIN ≤ 20V ● 5 10 mA LT1086-12 VIN ≤ 25V ● 5 10 mA Thermal Regulation TA = 25°C, 30ms pulse 0.008 0.04 %/W Ripple Rejection f = 120Hz, COUT = 25µF Tantalum, IOUT = 1.5A, (IOUT = 0.5A for LT1086H) LT1086, LT1086H CADJ = 25µF, (VIN – VOUT) = 3V ● 60 75 dB LT1086-2.85 VIN = 6V ● 60 72 dB LT1086-3.3 VIN = 6.3V ● 60 72 dB LT1086-3.6 VIN = 6.6V ● 60 72 dB LT1086-5 VIN = 8V ● 60 68 dB LT1083-12 VIN = 15V ● 54 60 dB Adjust Pin Current LT1086, LT1086H TJ = 25°C 55 µA ● 120 µA Adjust Pin Current LT1086, LT1086H 10mA ≤ IOUT ≤ 1.5A (0.5A for LT1086H) Change 1.5V ≤ (VIN – VOUT) ≤ 15V ● 0.2 5 µA Temperature Stability ● 0.5 % Long-Term Stability TA = 125°C, 1000 Hrs. 0.3 1 % RMS Output Noise TA = 25°C, 10Hz = ≤ f ≤ 10kHz 0.003 % (% of VOUT) Thermal Resistance H Package: Control Circuitry/Power Transistor 15/20 °C/W Junction-to-Case K Package: Control Circuitry/Power Transistor 1.7/4.0 °C/W M Package: Control Circuitry/Power Transistor 1.5/4.0 °C/W T Package: Control Circuitry/Power Transistor 1.5/4.0 °C/W
