LTM9013

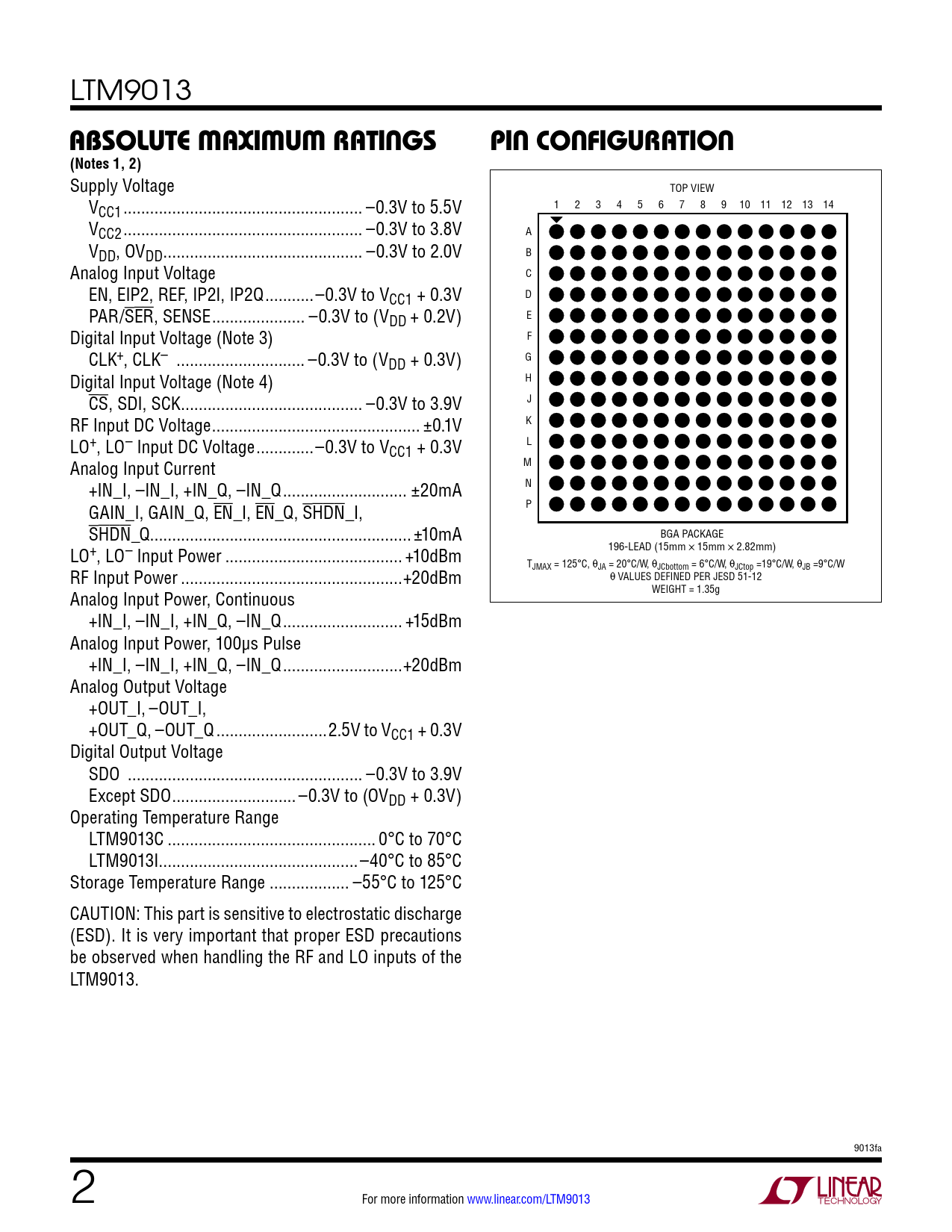

absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage TOP VIEW VCC1 .. –0.3V to 5.5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VCC2 .. –0.3V to 3.8V A VDD, OVDD ... –0.3V to 2.0V B Analog Input Voltage C EN, EIP2, REF, IP2I, IP2Q ...–0.3V to VCC1 + 0.3V D PAR/SER, SENSE ... –0.3V to (VDD + 0.2V) E Digital Input Voltage (Note 3) F CLK+, CLK– ... –0.3V to (VDD + 0.3V) G Digital Input Voltage (Note 4) H CS, SDI, SCK ... –0.3V to 3.9V J RF Input DC Voltage ... ±0.1V K LO+, LO– Input DC Voltage ...–0.3V to V L CC1 + 0.3V Analog Input Current M +IN_I, –IN_I, +IN_Q, –IN_Q .. ±20mA N GAIN_I, GAIN_Q, EN_I, EN_Q, SHDN_I, P SHDN_Q... ±10mA BGA PACKAGE LO+, LO– Input Power .. +10dBm 196-LEAD (15mm × 15mm × 2.82mm) T RF Input Power ..+20dBm JMAX = 125°C, θJA = 20°C/W, θJCbottom = 6°C/W, θJCtop =19°C/W, θJB =9°C/W θ VALUES DEFINED PER JESD 51-12 Analog Input Power, Continuous WEIGHT = 1.35g +IN_I, –IN_I, +IN_Q, –IN_Q ... +15dBm Analog Input Power, 100μs Pulse +IN_I, –IN_I, +IN_Q, –IN_Q ...+20dBm Analog Output Voltage +OUT_I, –OUT_I, +OUT_Q, –OUT_Q ...2.5V to VCC1 + 0.3V Digital Output Voltage SDO ... –0.3V to 3.9V Except SDO .. –0.3V to (OVDD + 0.3V) Operating Temperature Range LTM9013C ... 0°C to 70°C LTM9013I...–40°C to 85°C Storage Temperature Range .. –55°C to 125°C CAUTION: This part is sensitive to electrostatic discharge (ESD). It is very important that proper ESD precautions be observed when handling the RF and LO inputs of the LTM9013. 9013fa 2 For more information www.linear.com/LTM9013 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Dynamic Accuracy Analog Inputs and Outputs Digital Inputs and Outputs Power Requirements Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagrams Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
