Datasheet LTM9012 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | Quad 14-Bit, 125Msps ADC with Integrated Drivers |
| Páginas / Página | 28 / 8 — TiMing DiagraMs. 1-Lane Output Mode, 16-Bit Serialization. 1-Lane Output … |
| Formato / tamaño de archivo | PDF / 2.1 Mb |
| Idioma del documento | Inglés |

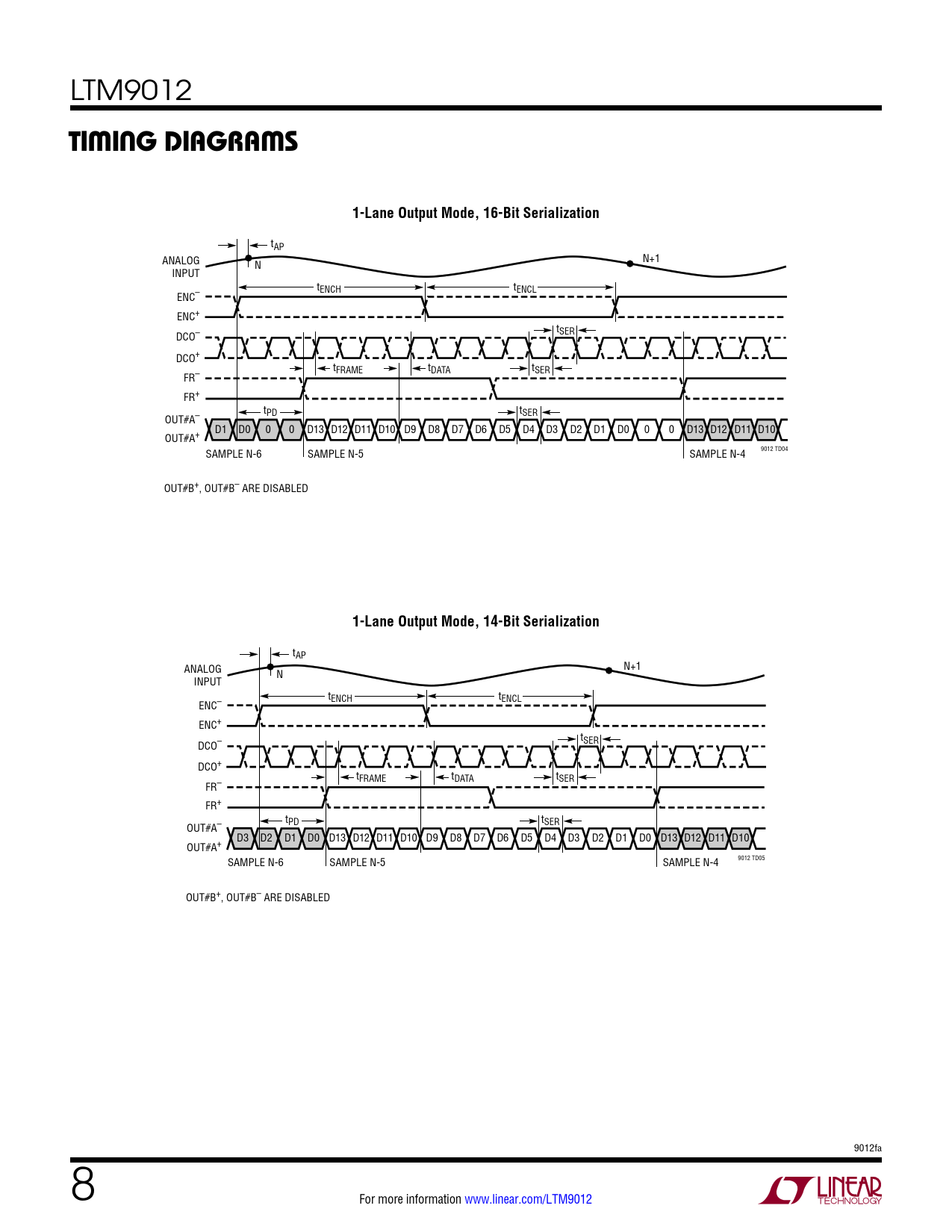

TiMing DiagraMs. 1-Lane Output Mode, 16-Bit Serialization. 1-Lane Output Mode, 14-Bit Serialization
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM9012
TiMing DiagraMs 1-Lane Output Mode, 16-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D1 D0 0 0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 0 0 D13 D12 D11 D10 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 9012 TD04 OUT#B+, OUT#B– ARE DISABLED
1-Lane Output Mode, 14-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D3 D2 D1 D0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 D13 D12 D11 D10 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 9012 TD05 OUT#B+, OUT#B– ARE DISABLED 9012fa 8 For more information www.linear.com/LTM9012 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Pin Configuration Table Block Diagram Applications Information Typical Application Package Description Revision History Typical Application Related Parts
