Datasheet LTM9003 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 12-Bit Digital Pre-Distortion μModule Receiver Subsystem |
| Páginas / Página | 24 / 6 — The. denotes the specifications which apply over the full operating … |
| Formato / tamaño de archivo | PDF / 448 Kb |
| Idioma del documento | Inglés |
The. denotes the specifications which apply over the full operating temperature
Línea de modelo para esta hoja de datos
Versión de texto del documento

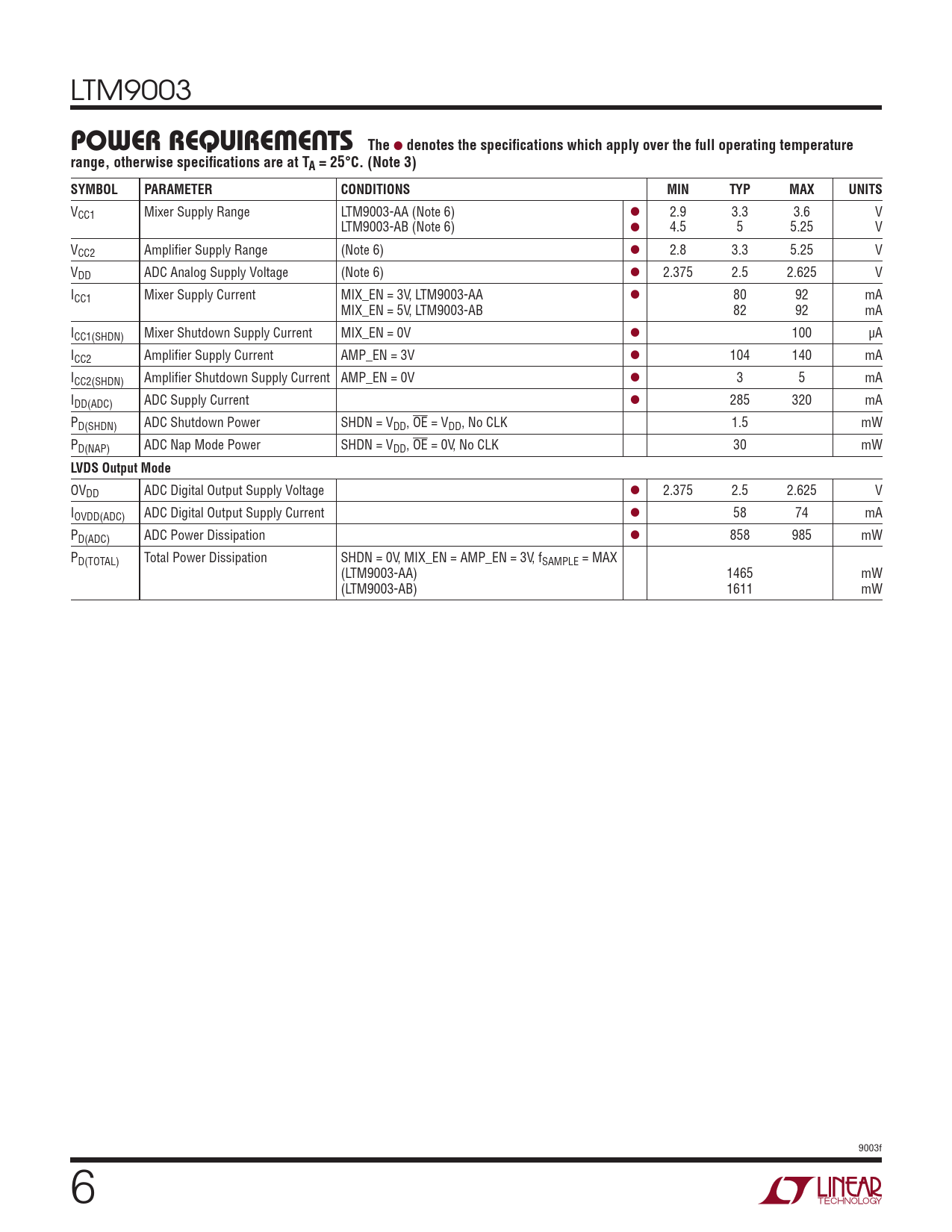

LTM9003 p ower requireMenTs
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC1 Mixer Supply Range LTM9003-AA (Note 6) l 2.9 3.3 3.6 V LTM9003-AB (Note 6) l 4.5 5 5.25 V VCC2 Amplifier Supply Range (Note 6) l 2.8 3.3 5.25 V VDD ADC Analog Supply Voltage (Note 6) l 2.375 2.5 2.625 V ICC1 Mixer Supply Current MIX_EN = 3V, LTM9003-AA l 80 92 mA MIX_EN = 5V, LTM9003-AB 82 92 mA ICC1(SHDN) Mixer Shutdown Supply Current MIX_EN = 0V l 100 µA ICC2 Amplifier Supply Current AMP_EN = 3V l 104 140 mA ICC2(SHDN) Amplifier Shutdown Supply Current AMP_EN = 0V l 3 5 mA IDD(ADC) ADC Supply Current l 285 320 mA PD(SHDN) ADC Shutdown Power SHDN = VDD, OE = VDD, No CLK 1.5 mW PD(NAP) ADC Nap Mode Power SHDN = VDD, OE = 0V, No CLK 30 mW
LVDS Output Mode
OVDD ADC Digital Output Supply Voltage l 2.375 2.5 2.625 V IOVDD(ADC) ADC Digital Output Supply Current l 58 74 mA PD(ADC) ADC Power Dissipation l 858 985 mW PD(TOTAL) Total Power Dissipation SHDN = 0V, MIX_EN = AMP_EN = 3V, fSAMPLE = MAX (LTM9003-AA) 1465 mW (LTM9003-AB) 1611 mW 9003f Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Filter Characteristics Dynamic Accuracy Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagram Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Related Parts
