Datasheet LTM9002 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 14-Bit, 125Msps Dual-Channel IF/Baseband Receiver Subsystem |
| Páginas / Página | 28 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER … |
| Formato / tamaño de archivo | PDF / 355 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER INFORMATION. LEAD FREE FINISH. TRAY. PART MARKING*
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM9002

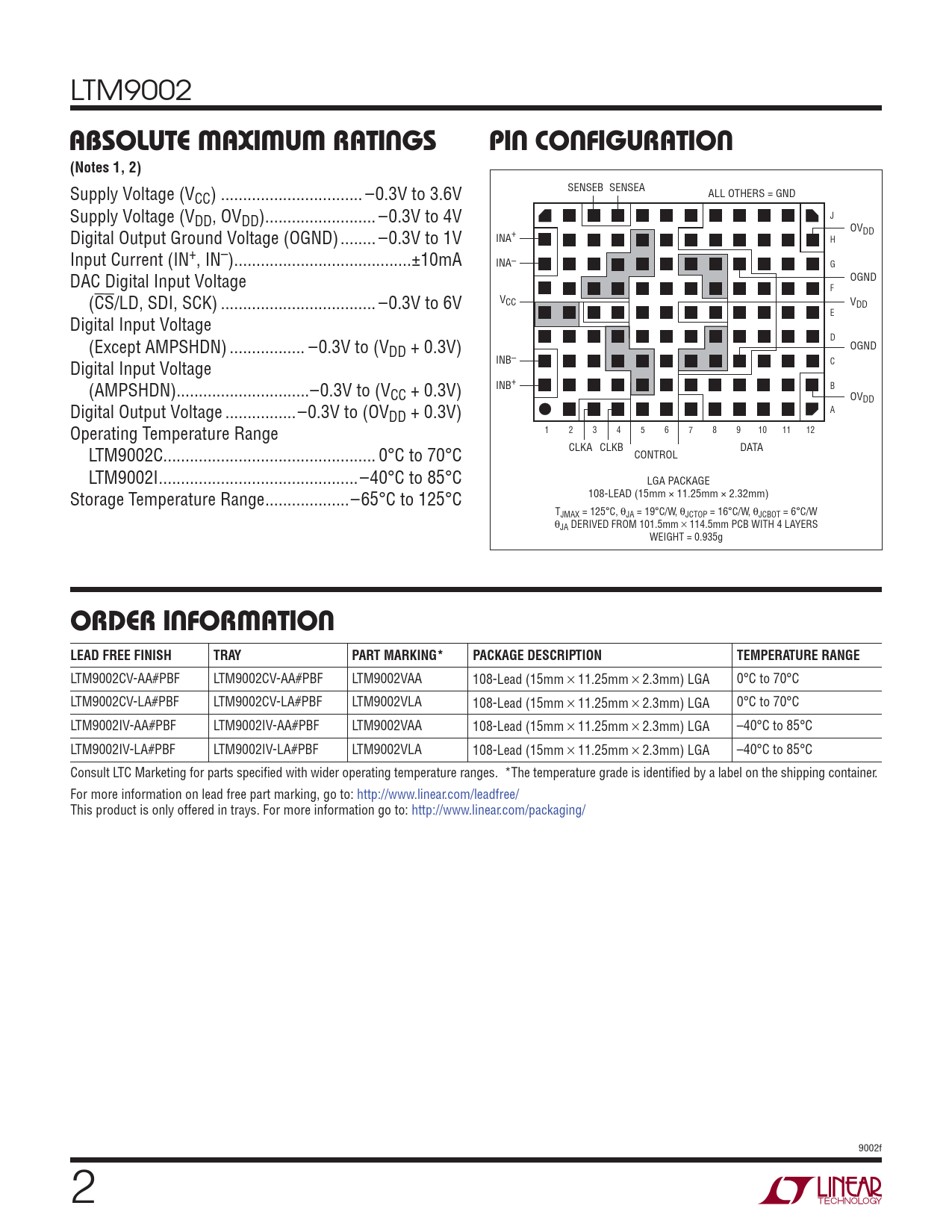

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (V SENSEB SENSEA CC) .. –0.3V to 3.6V ALL OTHERS = GND Supply Voltage (VDD, OVDD) ... –0.3V to 4V J OV Digital Output Ground Voltage (OGND) .. –0.3V to 1V DD INA+ H Input Current (IN+, IN–) ..±10mA INA– G DAC Digital Input Voltage OGND F (CS/LD, SDI, SCK) ... –0.3V to 6V VCC VDD E Digital Input Voltage D (Except AMPSHDN) ... –0.3V to (VDD + 0.3V) OGND INB– Digital Input Voltage C (AMPSHDN) ..–0.3V to (V INB+ B CC + 0.3V) OVDD Digital Output Voltage ..–0.3V to (OV A DD + 0.3V) Operating Temperature Range 1 2 3 4 5 6 7 8 9 10 11 12 LTM9002C.. 0°C to 70°C CLKA CLKB DATA CONTROL LTM9002I ... –40°C to 85°C LGA PACKAGE Storage Temperature Range ...–65°C to 125°C 108-LEAD (15mm × 11.25mm × 2.32mm) TJMAX = 125°C, θJA = 19°C/W, θJCTOP = 16°C/W, θJCBOT = 6°C/W θJA DERIVED FROM 101.5mm × 114.5mm PCB WITH 4 LAYERS WEIGHT = 0.935g
ORDER INFORMATION LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM9002CV-AA#PBF LTM9002CV-AA#PBF LTM9002VAA 108-Lead (15mm × 11.25mm × 2.3mm) LGA 0°C to 70°C LTM9002CV-LA#PBF LTM9002CV-LA#PBF LTM9002VLA 108-Lead (15mm × 11.25mm × 2.3mm) LGA 0°C to 70°C LTM9002IV-AA#PBF LTM9002IV-AA#PBF LTM9002VAA 108-Lead (15mm × 11.25mm × 2.3mm) LGA –40°C to 85°C LTM9002IV-LA#PBF LTM9002IV-LA#PBF LTM9002VLA 108-Lead (15mm × 11.25mm × 2.3mm) LGA –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 9002f 2
