Páginas / Página32 / 10 — TiMing DiagraMs. Timing Diagram Using Internal SCK (SCK HIGH with CS. …
Formato / tamaño de archivoPDF / 668 Kb
Idioma del documentoInglés

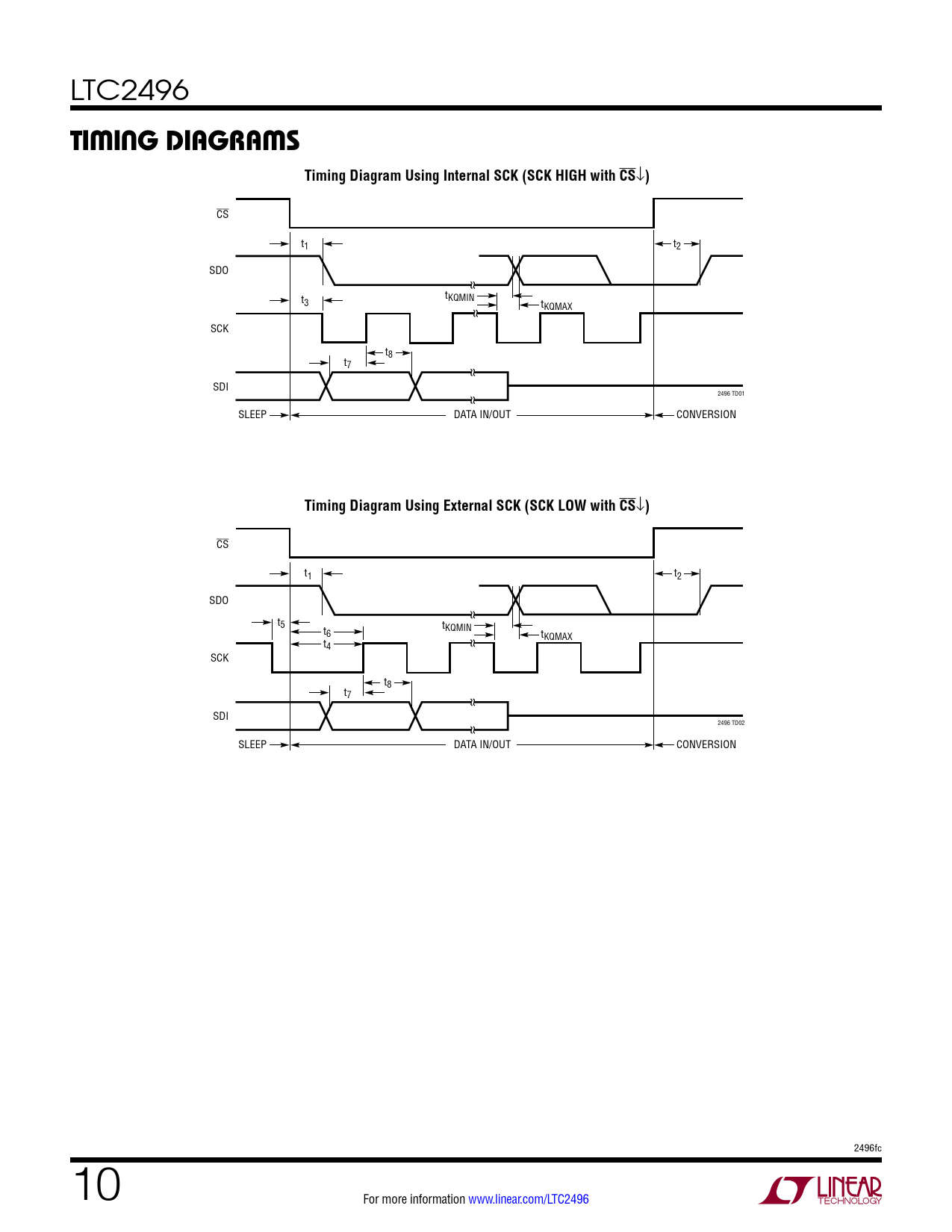

TiMing DiagraMs. Timing Diagram Using Internal SCK (SCK HIGH with CS. Timing Diagram Using External SCK (SCK LOW with CS

TiMing DiagraMs Timing Diagram Using Internal SCK (SCK HIGH with CS Timing Diagram Using External SCK (SCK LOW with CS

Línea de modelo para esta hoja de datos

Versión de texto del documento

LTC2496
TiMing DiagraMs Timing Diagram Using Internal SCK (SCK HIGH with CS

)
CS t1 t2 SDO t t 3 KQMIN tKQMAX SCK t8 t7 SDI 2496 TD01 SLEEP DATA IN/OUT CONVERSION
Timing Diagram Using External SCK (SCK LOW with CS

)
CS t1 t2 SDO t5 t tKQMIN 6 tKQMAX t4 SCK t8 t7 SDI 2496 TD02 SLEEP DATA IN/OUT CONVERSION 2496fc 10 For more information www.linear.com/LTC2496 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Analog Input and Reference Digital Inputs and Digital Outputs Power Requirements Typical Performance Characteristics Pin Functions Functional Block Diagram Test Circuits Timing Diagrams Applications Information Package Description Revision History Typical Application Related Parts
