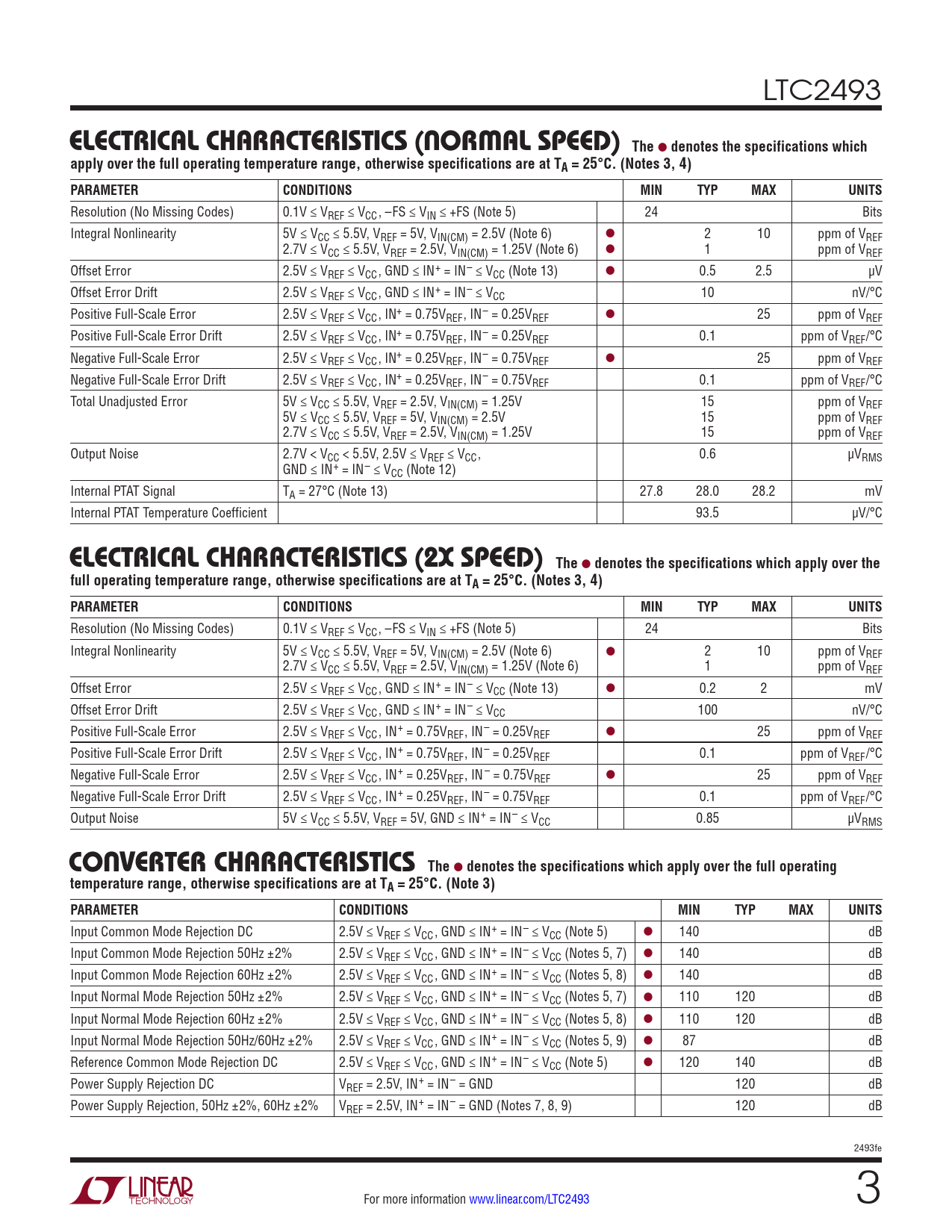

LTC2493
e lecTrical characTerisTics (norMal speeD) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 3, 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) 0.1V ≤ VREF ≤ VCC, –FS ≤ VIN ≤ +FS (Note 5) 24 Bits Integral Nonlinearity 5V ≤ VCC ≤ 5.5V, VREF = 5V, VIN(CM) = 2.5V (Note 6) l 2 10 ppm of VREF 2.7V ≤ VCC ≤ 5.5V, VREF = 2.5V, VIN(CM) = 1.25V (Note 6) l 1 ppm of VREF Offset Error 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 13) l 0.5 2.5 µV Offset Error Drift 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC 10 nV/°C Positive Full-Scale Error 2.5V ≤ VREF ≤ VCC, IN+ = 0.75VREF, IN– = 0.25VREF l 25 ppm of VREF Positive Full-Scale Error Drift 2.5V ≤ VREF ≤ VCC, IN+ = 0.75VREF, IN– = 0.25VREF 0.1 ppm of VREF/°C Negative Full-Scale Error 2.5V ≤ VREF ≤ VCC, IN+ = 0.25VREF, IN– = 0.75VREF l 25 ppm of VREF Negative Full-Scale Error Drift 2.5V ≤ VREF ≤ VCC, IN+ = 0.25VREF, IN– = 0.75VREF 0.1 ppm of VREF/°C Total Unadjusted Error 5V ≤ VCC ≤ 5.5V, VREF = 2.5V, VIN(CM) = 1.25V 15 ppm of VREF 5V ≤ VCC ≤ 5.5V, VREF = 5V, VIN(CM) = 2.5V 15 ppm of VREF 2.7V ≤ VCC ≤ 5.5V, VREF = 2.5V, VIN(CM) = 1.25V 15 ppm of VREF Output Noise 2.7V < VCC < 5.5V, 2.5V ≤ VREF ≤ VCC, 0.6 µVRMS GND ≤ IN+ = IN– ≤ VCC (Note 12) Internal PTAT Signal TA = 27°C (Note 13) 27.8 28.0 28.2 mV Internal PTAT Temperature Coefficient 93.5 µV/°C
e lecTrical characTerisTics (2x speeD) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 3, 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) 0.1V ≤ VREF ≤ VCC, –FS ≤ VIN ≤ +FS (Note 5) 24 Bits Integral Nonlinearity 5V ≤ VCC ≤ 5.5V, VREF = 5V, VIN(CM) = 2.5V (Note 6) l 2 10 ppm of VREF 2.7V ≤ VCC ≤ 5.5V, VREF = 2.5V, VIN(CM) = 1.25V (Note 6) 1 ppm of VREF Offset Error 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 13) l 0.2 2 mV Offset Error Drift 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC 100 nV/°C Positive Full-Scale Error 2.5V ≤ VREF ≤ VCC, IN+ = 0.75VREF, IN– = 0.25VREF l 25 ppm of VREF Positive Full-Scale Error Drift 2.5V ≤ VREF ≤ VCC, IN+ = 0.75VREF, IN– = 0.25VREF 0.1 ppm of VREF/°C Negative Full-Scale Error 2.5V ≤ VREF ≤ VCC, IN+ = 0.25VREF, IN– = 0.75VREF l 25 ppm of VREF Negative Full-Scale Error Drift 2.5V ≤ VREF ≤ VCC, IN+ = 0.25VREF, IN– = 0.75VREF 0.1 ppm of VREF/°C Output Noise 5V ≤ VCC ≤ 5.5V, VREF = 5V, GND ≤ IN+ = IN– ≤ VCC 0.85 µVRMS
c onverTer characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
Input Common Mode Rejection DC 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 5) l 140 dB Input Common Mode Rejection 50Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 7) l 140 dB Input Common Mode Rejection 60Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 8) l 140 dB Input Normal Mode Rejection 50Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 7) l 110 120 dB Input Normal Mode Rejection 60Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 8) l 110 120 dB Input Normal Mode Rejection 50Hz/60Hz ±2% 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Notes 5, 9) l 87 dB Reference Common Mode Rejection DC 2.5V ≤ VREF ≤ VCC, GND ≤ IN+ = IN– ≤ VCC (Note 5) l 120 140 dB Power Supply Rejection DC VREF = 2.5V, IN+ = IN– = GND 120 dB Power Supply Rejection, 50Hz ±2%, 60Hz ±2% VREF = 2.5V, IN+ = IN– = GND (Notes 7, 8, 9) 120 dB 2493fe For more information www.linear.com/LTC2493 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics (Normal Speed) Electrical Characteristics (2x Speed) Converter Characteristics Analog Input and Reference I2C Inputs and Digital Outputs Power Requirements Digital Inputs and Digital Outputs I2C Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
