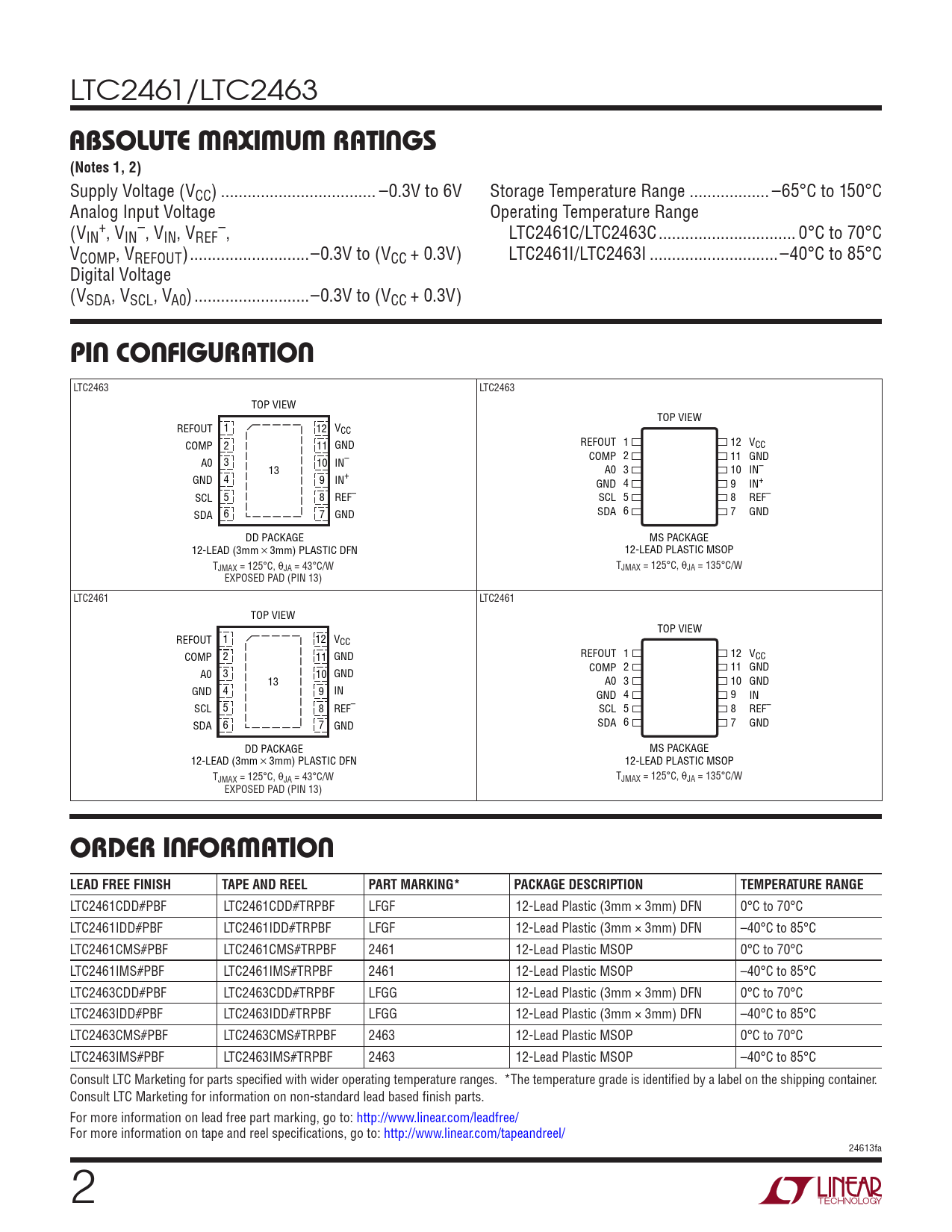

LTC2461/LTC2463
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VCC) ... –0.3V to 6V Storage Temperature Range .. –65°C to 150°C Analog Input Voltage Operating Temperature Range (V + – – IN , VIN , VIN, VREF , LTC2461C/LTC2463C ... 0°C to 70°C VCOMP, VREFOUT) ...–0.3V to (VCC + 0.3V) LTC2461I/LTC2463I ...–40°C to 85°C Digital Voltage (VSDA, VSCL, VA0) ..–0.3V to (VCC + 0.3V)
PIN CONFIGURATION
LTC2463 LTC2463 TOP VIEW TOP VIEW REFOUT 1 12 VCC COMP 2 11 GND REFOUT 1 12 VCC COMP 2 11 GND A0 3 10 IN– 13 A0 3 10 IN– GND 4 9 IN+ GND 4 9 IN+ SCL 5 8 REF– SCL 5 8 REF– SDA 6 7 GND SDA 6 7 GND DD PACKAGE MS PACKAGE 12-LEAD (3mm × 3mm) PLASTIC DFN 12-LEAD PLASTIC MSOP TJMAX = 125°C, θJA = 43°C/W TJMAX = 125°C, θJA = 135°C/W EXPOSED PAD (PIN 13) LTC2461 LTC2461 TOP VIEW TOP VIEW REFOUT 1 12 VCC COMP 2 11 GND REFOUT 1 12 VCC COMP 2 11 GND A0 3 10 GND 13 A0 3 10 GND GND 4 9 IN GND 4 9 IN SCL 5 8 REF– SCL 5 8 REF– SDA 6 7 GND SDA 6 7 GND DD PACKAGE MS PACKAGE 12-LEAD (3mm × 3mm) PLASTIC DFN 12-LEAD PLASTIC MSOP TJMAX = 125°C, θJA = 43°C/W TJMAX = 125°C, θJA = 135°C/W EXPOSED PAD (PIN 13)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2461CDD#PBF LTC2461CDD#TRPBF LFGF 12-Lead Plastic (3mm × 3mm) DFN 0°C to 70°C LTC2461IDD#PBF LTC2461IDD#TRPBF LFGF 12-Lead Plastic (3mm × 3mm) DFN –40°C to 85°C LTC2461CMS#PBF LTC2461CMS#TRPBF 2461 12-Lead Plastic MSOP 0°C to 70°C LTC2461IMS#PBF LTC2461IMS#TRPBF 2461 12-Lead Plastic MSOP –40°C to 85°C LTC2463CDD#PBF LTC2463CDD#TRPBF LFGG 12-Lead Plastic (3mm × 3mm) DFN 0°C to 70°C LTC2463IDD#PBF LTC2463IDD#TRPBF LFGG 12-Lead Plastic (3mm × 3mm) DFN –40°C to 85°C LTC2463CMS#PBF LTC2463CMS#TRPBF 2463 12-Lead Plastic MSOP 0°C to 70°C LTC2463IMS#PBF LTC2463IMS#TRPBF 2463 12-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 24613fa 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Applications Information Package Description Electrical Characteristics Analog Inputs Power Requirements I2c Inputs and Outputs I2c Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
