Datasheet LTC2450-1 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Easy-to-Use, Ultra-Tiny 16-Bit ΔΣ ADC |
| Páginas / Página | 20 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Sleep Mode Power Supply. Average … |
| Formato / tamaño de archivo | PDF / 208 Kb |
| Idioma del documento | Inglés |

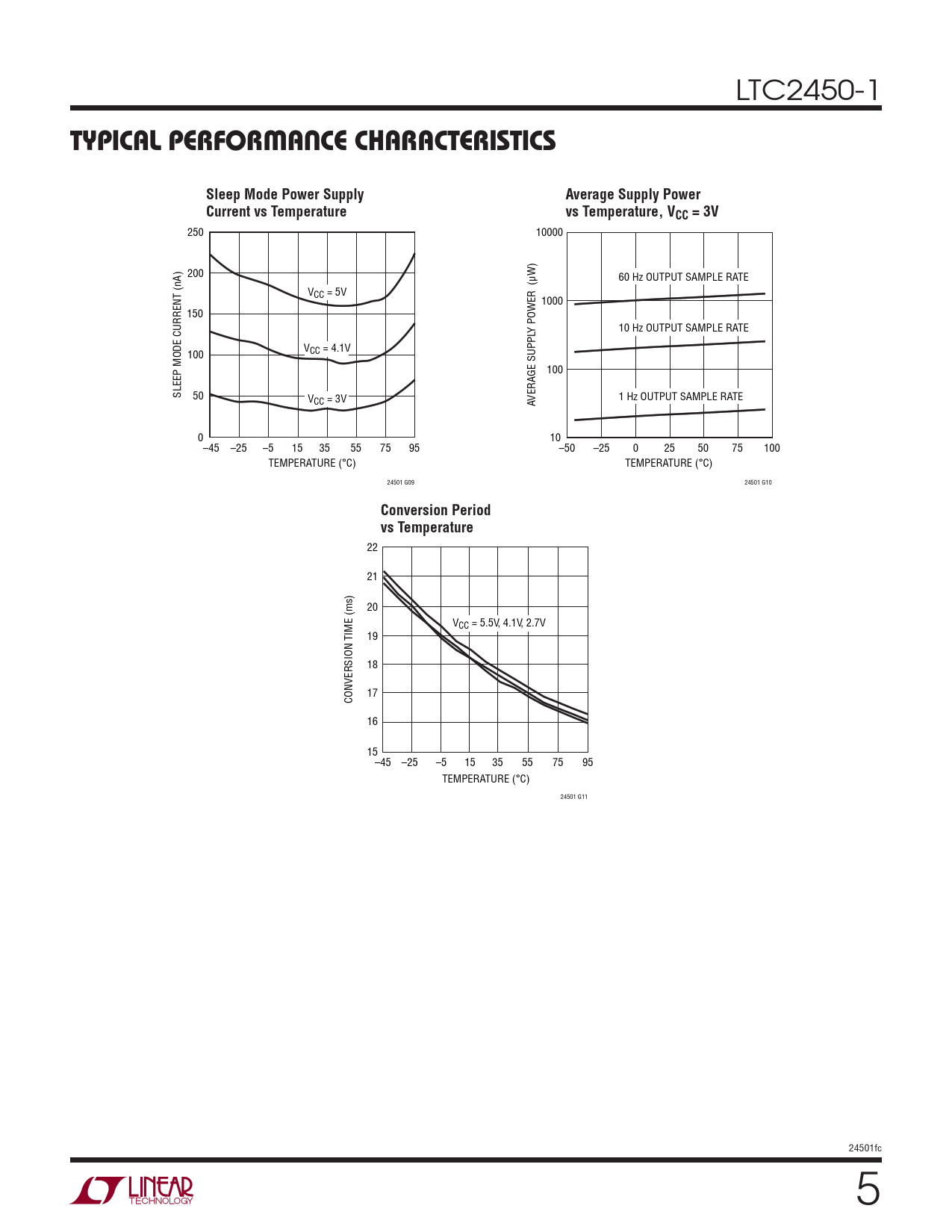

TYPICAL PERFORMANCE CHARACTERISTICS. Sleep Mode Power Supply. Average Supply Power. Current vs Temperature
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2450-1
TYPICAL PERFORMANCE CHARACTERISTICS Sleep Mode Power Supply Average Supply Power Current vs Temperature vs Temperature, VCC = 3V
250 10000 200 60 Hz OUTPUT SAMPLE RATE VCC = 5V 1000 150 Y POWER (μW) 10 Hz OUTPUT SAMPLE RATE V 100 CC = 4.1V 100 SLEEP MODE CURRENT (nA) 50 V 1 Hz OUTPUT SAMPLE RATE CC = 3V VERAGE SUPPL A 0 10 –45 –25 –5 15 35 55 75 95 –50 –25 0 25 50 75 100 TEMPERATURE (°C) TEMPERATURE (°C) 24501 G09 24501 G10
Conversion Period vs Temperature
22 21 20 VCC = 5.5V, 4.1V, 2.7V 19 18 17 CONVERSION TIME (ms) 16 15 –45 –25 –5 15 35 55 75 95 TEMPERATURE (°C) 24501 G11 24501fc 5
TYPICAL PERFORMANCE CHARACTERISTICS Sleep Mode Power Supply Average Supply Power Current vs Temperature vs Temperature, VCC = 3V
250 10000 200 60 Hz OUTPUT SAMPLE RATE VCC = 5V 1000 150 Y POWER (μW) 10 Hz OUTPUT SAMPLE RATE V 100 CC = 4.1V 100 SLEEP MODE CURRENT (nA) 50 V 1 Hz OUTPUT SAMPLE RATE CC = 3V VERAGE SUPPL A 0 10 –45 –25 –5 15 35 55 75 95 –50 –25 0 25 50 75 100 TEMPERATURE (°C) TEMPERATURE (°C) 24501 G09 24501 G10
Conversion Period vs Temperature
22 21 20 VCC = 5.5V, 4.1V, 2.7V 19 18 17 CONVERSION TIME (ms) 16 15 –45 –25 –5 15 35 55 75 95 TEMPERATURE (°C) 24501 G11 24501fc 5
