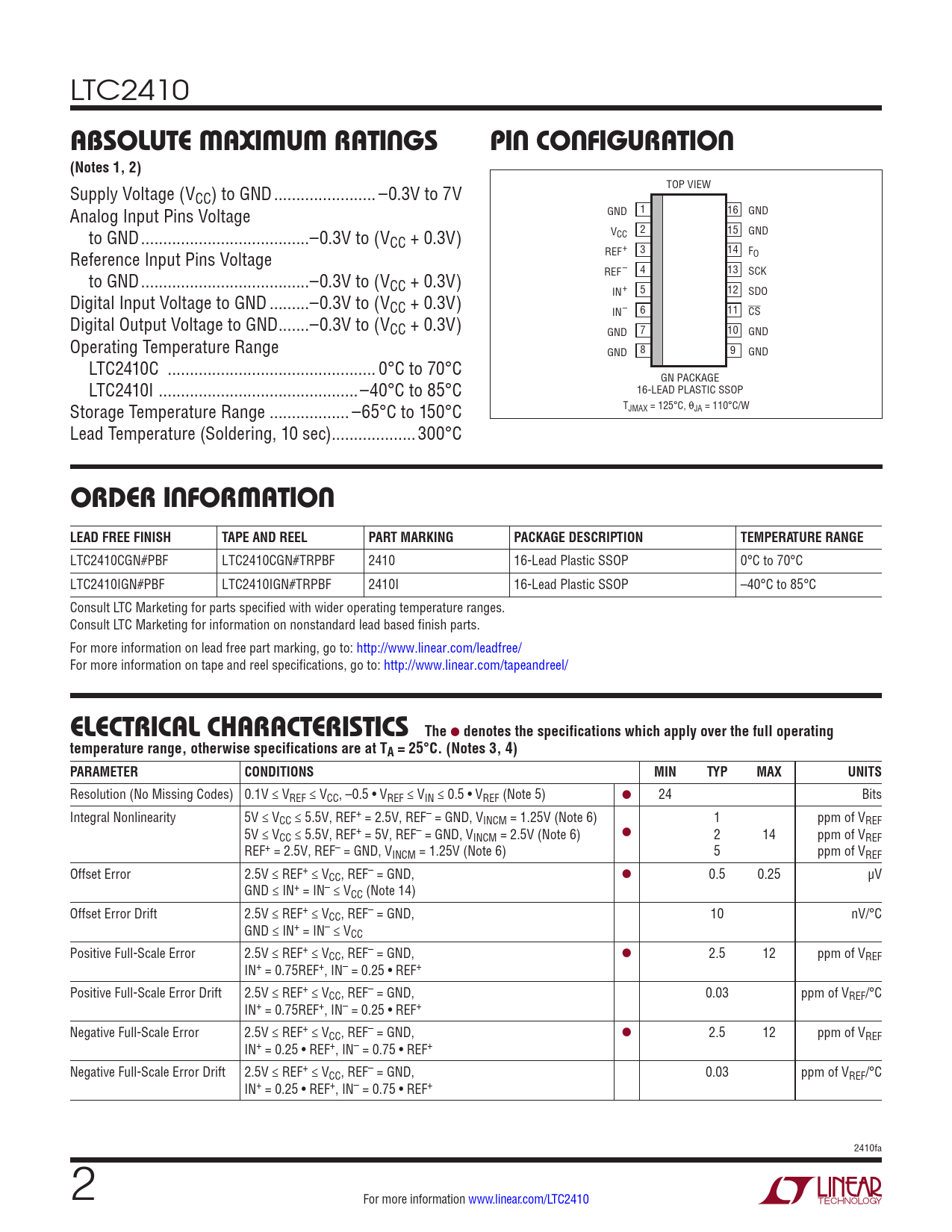

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2410
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (V TOP VIEW CC) to GND ... –0.3V to 7V Analog Input Pins Voltage GND 1 16 GND to GND ..–0.3V to (V V 2 15 GND CC + 0.3V) CC Reference Input Pins Voltage REF+ 3 14 FO to GND ..–0.3V to (V REF– 4 13 SCK CC + 0.3V) IN+ 5 12 SDO Digital Input Voltage to GND ...–0.3V to (VCC + 0.3V) IN– 6 11 CS Digital Output Voltage to GND ...–0.3V to (VCC + 0.3V) 7 GND 10 GND Operating Temperature Range 8 GND 9 GND LTC2410C ... 0°C to 70°C GN PACKAGE LTC2410I ...–40°C to 85°C 16-LEAD PLASTIC SSOP Storage Temperature Range .. –65°C to 150°C TJMAX = 125°C, θJA = 110°C/W Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2410CGN#PBF LTC2410CGN#TRPBF 2410 16-Lead Plastic SSOP 0°C to 70°C LTC2410IGN#PBF LTC2410IGN#TRPBF 2410I 16-Lead Plastic SSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 3, 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) 0.1V ≤ VREF ≤ VCC, –0.5 • VREF ≤ VIN ≤ 0.5 • VREF (Note 5) l 24 Bits Integral Nonlinearity 5V ≤ VCC ≤ 5.5V, REF+ = 2.5V, REF– = GND, VINCM = 1.25V (Note 6) 1 ppm of VREF 5V ≤ VCC ≤ 5.5V, REF+ = 5V, REF– = GND, VINCM = 2.5V (Note 6) l 2 14 ppm of VREF REF+ = 2.5V, REF– = GND, VINCM = 1.25V (Note 6) 5 ppm of VREF Offset Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 0.5 0.25 µV GND ≤ IN+ = IN– ≤ VCC (Note 14) Offset Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 10 nV/°C GND ≤ IN+ = IN– ≤ VCC Positive Full-Scale Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 2.5 12 ppm of VREF IN+ = 0.75REF+, IN– = 0.25 • REF+ Positive Full-Scale Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 0.03 ppm of VREF/°C IN+ = 0.75REF+, IN– = 0.25 • REF+ Negative Full-Scale Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 2.5 12 ppm of VREF IN+ = 0.25 • REF+, IN– = 0.75 • REF+ Negative Full-Scale Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 0.03 ppm of VREF/°C IN+ = 0.25 • REF+, IN– = 0.75 • REF+ 2410fa 2 For more information www.linear.com/LTC2410 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Electrical Characteristics Converter Characteristics Analog Input and Reference Digital Inputs and Digital Outputs Power Requirements Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Test Circuit Applications Information Typical Applications Package Description PCB Layout and Film Revision History PCB Layout and Film Related Parts
