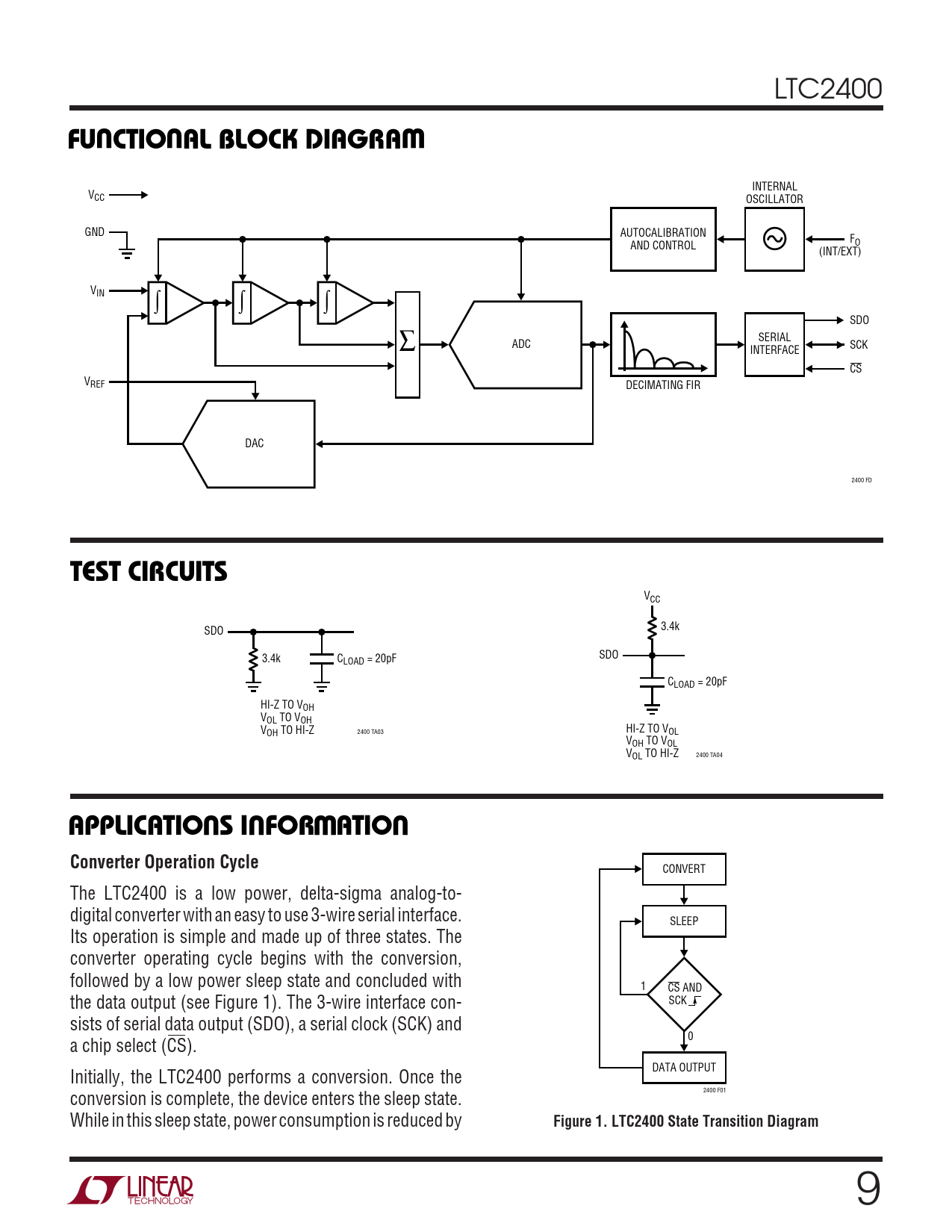

FU CTIO AL BLOCK DIAGRA. TEST CIRCUITS. APPLICATIONS INFORMATION. Converter Operation Cycle
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2400
U U W FU CTIO AL BLOCK DIAGRA
INTERNAL VCC OSCILLATOR GND AUTOCALIBRATION F AND CONTROL O (INT/EXT) VIN ∫ ∫ ∫ SDO SERIAL ∑ ADC SCK INTERFACE CS VREF DECIMATING FIR DAC 2400 FD
TEST CIRCUITS
VCC SDO 3.4k 3.4k C SDO LOAD = 20pF CLOAD = 20pF HI-Z TO VOH VOL TO VOH V HI-Z TO V 2400 TA03 OH TO HI-Z OL VOH TO VOL V 2400 TA04 OL TO HI-Z
U U W U APPLICATIONS INFORMATION Converter Operation Cycle
CONVERT The LTC2400 is a low power, delta-sigma analog-to- digital converter with an easy to use 3-wire serial interface. SLEEP Its operation is simple and made up of three states. The converter operating cycle begins with the conversion, followed by a low power sleep state and concluded with 1 CS AND the data output (see Figure 1). The 3-wire interface con- SCK sists of serial data output (SDO), a serial clock (SCK) and 0 a chip select (CS). DATA OUTPUT Initially, the LTC2400 performs a conversion. Once the conversion is complete, the device enters the sleep state. 2400 F01 While in this sleep state, power consumption is reduced by
Figure 1. LTC2400 State Transition Diagram
