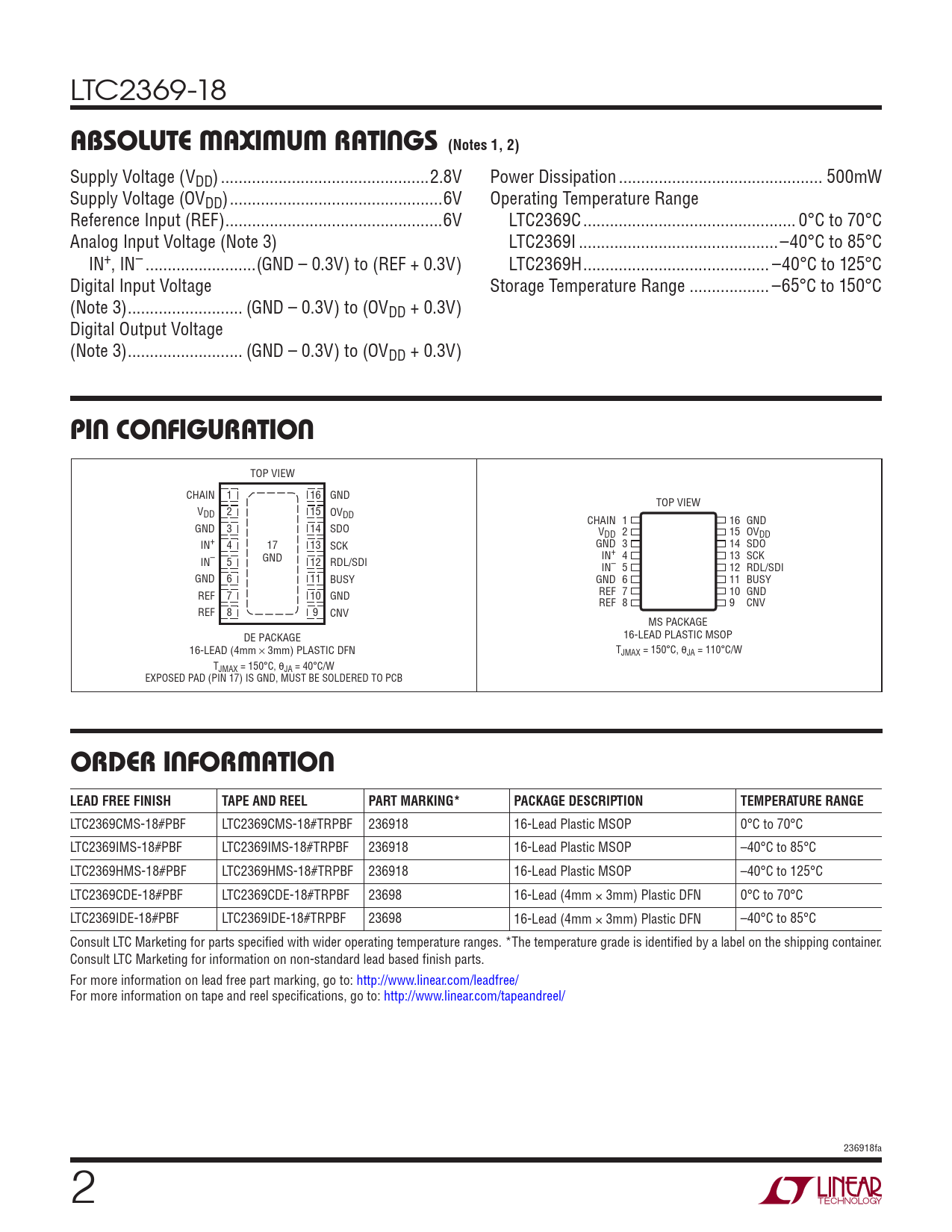

LTC2369-18
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VDD) ...2.8V Power Dissipation .. 500mW Supply Voltage (OVDD) ..6V Operating Temperature Range Reference Input (REF) ...6V LTC2369C .. 0°C to 70°C Analog Input Voltage (Note 3) LTC2369I ... –40°C to 85°C IN+, IN– ...(GND – 0.3V) to (REF + 0.3V) LTC2369H .. –40°C to 125°C Digital Input Voltage Storage Temperature Range .. –65°C to 150°C (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V) Digital Output Voltage (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V)
PIN CONFIGURATION
TOP VIEW CHAIN 1 16 GND TOP VIEW V 2 15 DD OVDD CHAIN 1 16 GND GND 3 14 SDO V 2 DD 15 OVDD IN+ 4 17 13 SCK GND 3 14 SDO GND IN+ 4 13 SCK IN– 5 12 RDL/SDI IN– 5 12 RDL/SDI GND 6 11 BUSY GND 6 11 BUSY REF 7 10 GND REF 7 10 GND REF 8 9 CNV REF 8 9 CNV MS PACKAGE DE PACKAGE 16-LEAD PLASTIC MSOP 16-LEAD (4mm w 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 110°C/W TJMAX = 150°C, θJA = 40°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2369CMS-18#PBF LTC2369CMS-18#TRPBF 236918 16-Lead Plastic MSOP 0°C to 70°C LTC2369IMS-18#PBF LTC2369IMS-18#TRPBF 236918 16-Lead Plastic MSOP –40°C to 85°C LTC2369HMS-18#PBF LTC2369HMS-18#TRPBF 236918 16-Lead Plastic MSOP –40°C to 125°C LTC2369CDE-18#PBF LTC2369CDE-18#TRPBF 23698 16-Lead (4mm × 3mm) Plastic DFN 0°C to 70°C LTC2369IDE-18#PBF LTC2369IDE-18#TRPBF 23698 16-Lead (4mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 236918fa 2
