| Descripción | 16-Bit, 500ksps, Pseudo-Differential Unipolar SAR ADC with 94.7dB SNR |
| Páginas / Página | 24 / 3 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 535 Kb |
| Idioma del documento | Inglés |

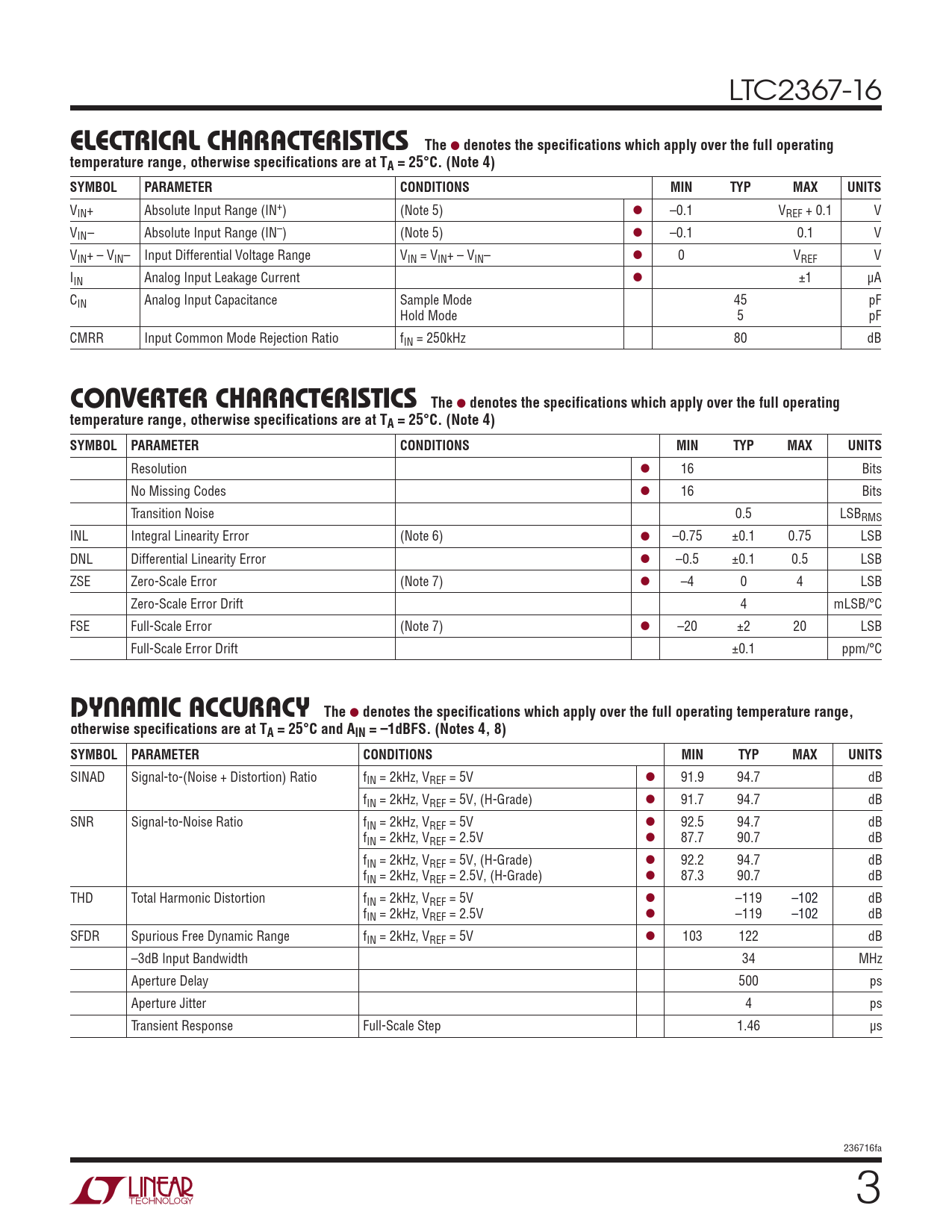

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
