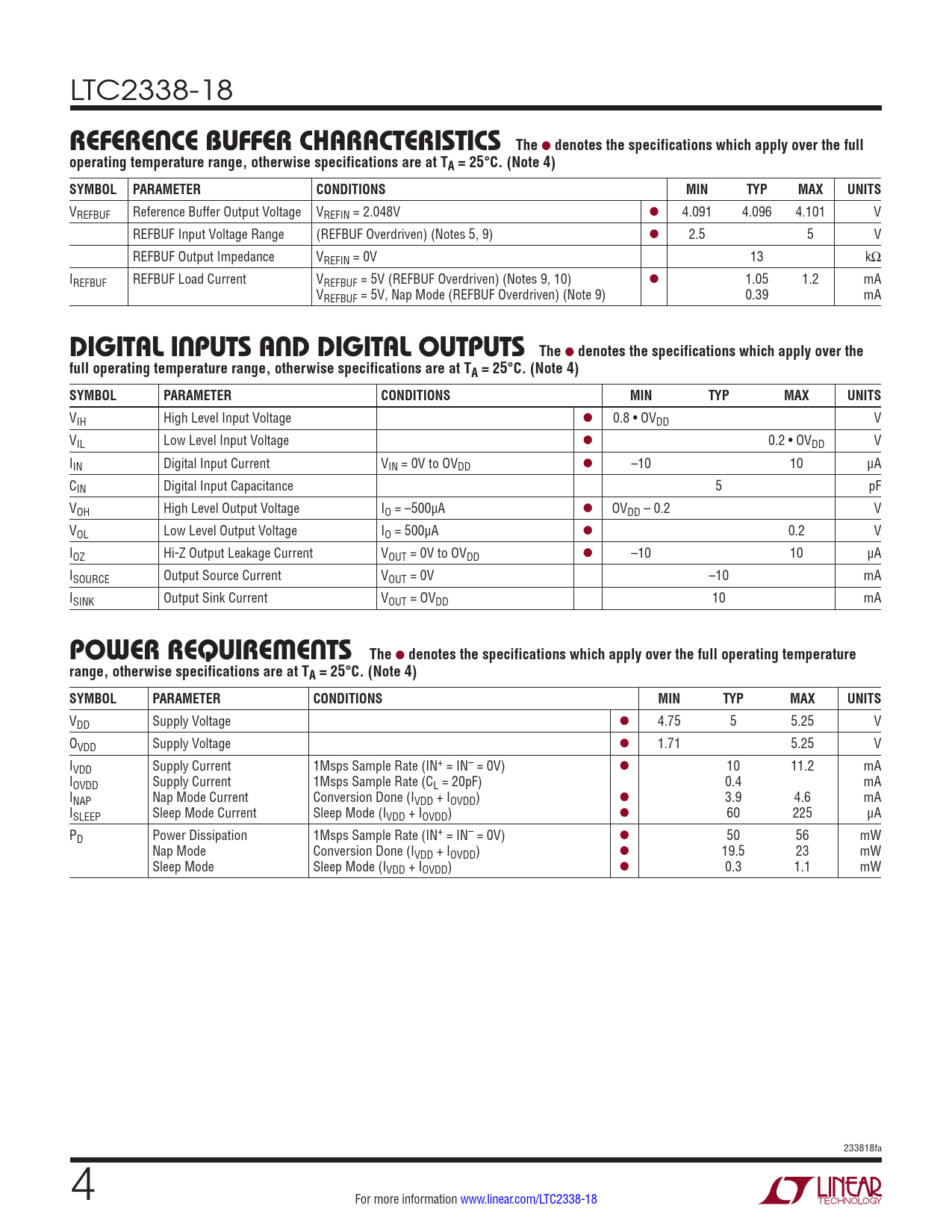

REFERENCE BUFFER CHARACTERISTICS. The. denotes the specifications which apply over the full
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2338-18
REFERENCE BUFFER CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VREFBUF Reference Buffer Output Voltage VREFIN = 2.048V l 4.091 4.096 4.101 V REFBUF Input Voltage Range (REFBUF Overdriven) (Notes 5, 9) l 2.5 5 V REFBUF Output Impedance VREFIN = 0V 13 kΩ IREFBUF REFBUF Load Current VREFBUF = 5V (REFBUF Overdriven) (Notes 9, 10) l 1.05 1.2 mA VREFBUF = 5V, Nap Mode (REFBUF Overdriven) (Note 9) 0.39 mA
