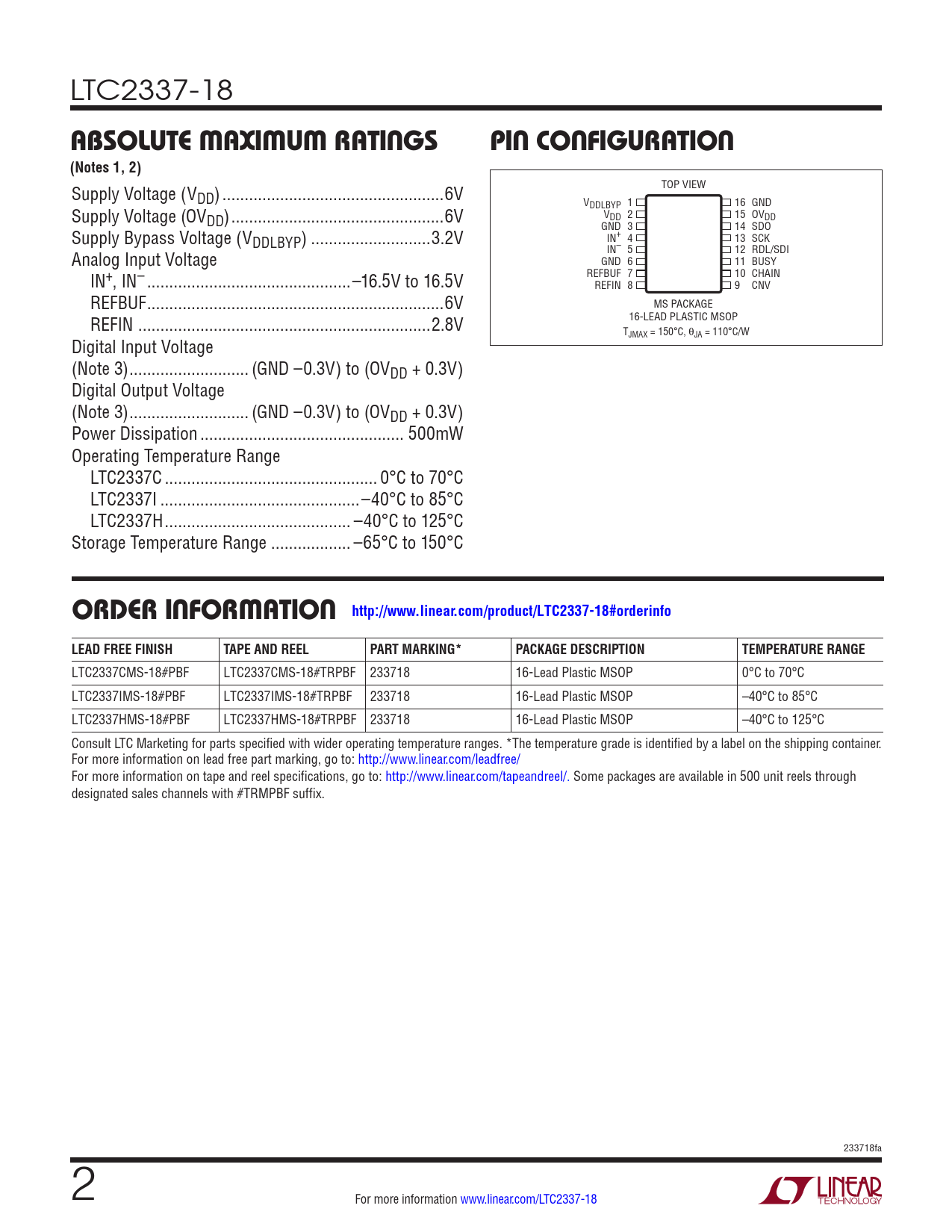

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2)
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2337-18
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (V TOP VIEW DD) ..6V VDDLBYP 1 16 GND Supply Voltage (OVDD) ..6V VDD 2 15 OVDD Supply Bypass Voltage (V GND 3 14 SDO DDLBYP) ...3.2V IN+ 4 13 SCK Analog Input Voltage IN– 5 12 RDL/SDI GND 6 11 BUSY IN+, IN– ..–16.5V to 16.5V REFBUF 7 10 CHAIN REFIN 8 9 CNV REFBUF ...6V MS PACKAGE REFIN ..2.8V 16-LEAD PLASTIC MSOP T Digital Input Voltage JMAX = 150°C, θJA = 110°C/W (Note 3) ... (GND –0.3V) to (OVDD + 0.3V) Digital Output Voltage (Note 3) ... (GND –0.3V) to (OVDD + 0.3V) Power Dissipation .. 500mW Operating Temperature Range LTC2337C .. 0°C to 70°C LTC2337I ...–40°C to 85°C LTC2337H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION http://www.linear.com/product/LTC2337-18#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2337CMS-18#PBF LTC2337CMS-18#TRPBF 233718 16-Lead Plastic MSOP 0°C to 70°C LTC2337IMS-18#PBF LTC2337IMS-18#TRPBF 233718 16-Lead Plastic MSOP –40°C to 85°C LTC2337HMS-18#PBF LTC2337HMS-18#TRPBF 233718 16-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 233718fa 2 For more information www.linear.com/LTC2337-18 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Revision History Typical Application Related Parts
