Datasheet LTC2258-12, LTC2257-12, LTC2256-12 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | 12-Bit, 65Msps Ultralow Power 1.8V ADCs |
| Páginas / Página | 34 / 9 — TiMing DiagraMs. Double Data Rate LVDS Output Mode Timing. All Outputs … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

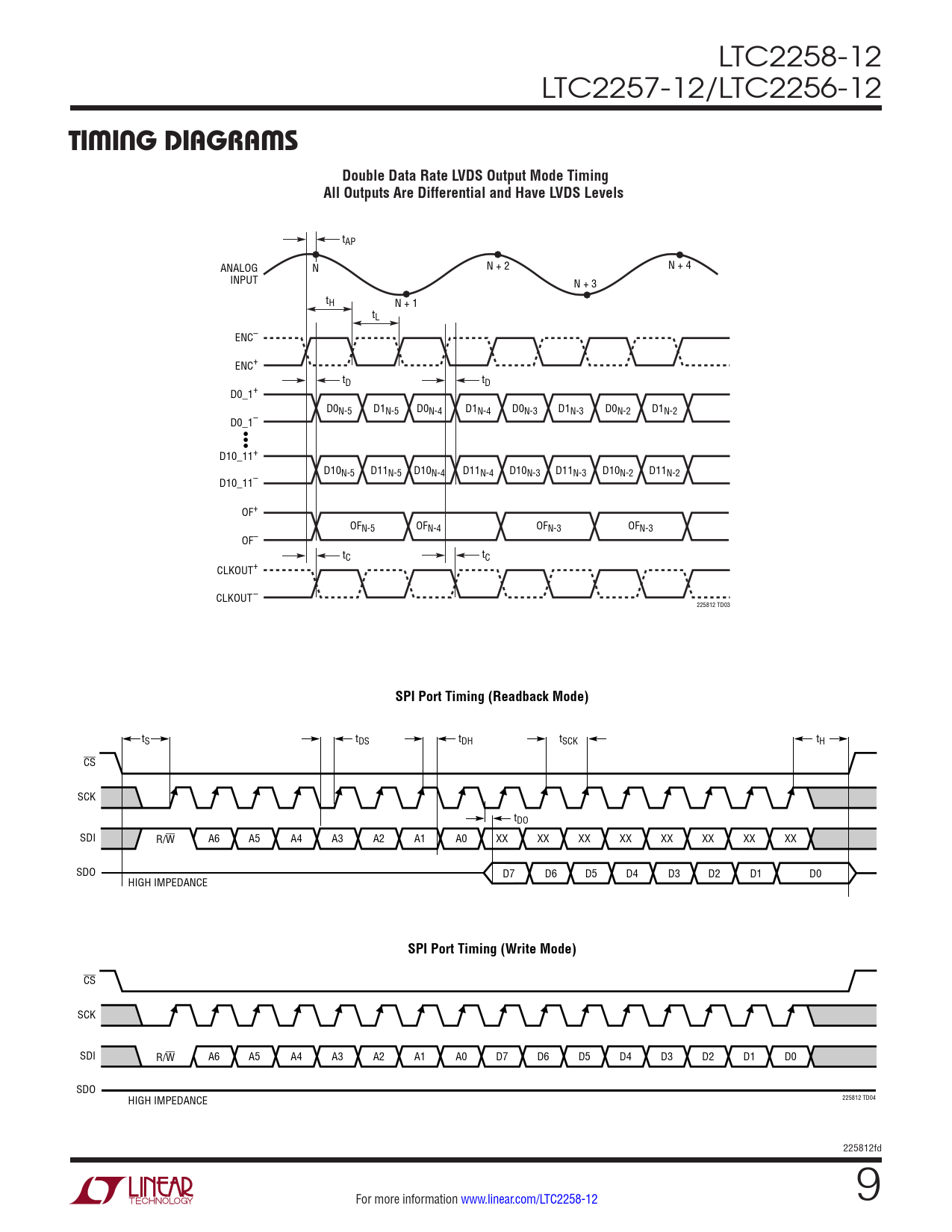

TiMing DiagraMs. Double Data Rate LVDS Output Mode Timing. All Outputs Are Differential and Have LVDS Levels
Línea de modelo para esta hoja de datos
- LTC2256CUJ-12#PBF LTC2256CUJ-12#PBF LTC2256CUJ-12#TRPBF LTC2256CUJ-12#TRPBF LTC2256IUJ-12#PBF LTC2256IUJ-12#PBF LTC2256IUJ-12#TRPBF LTC2256IUJ-12#TRPBF
Versión de texto del documento
LTC2258-12 LTC2257-12/LTC2256-12
TiMing DiagraMs Double Data Rate LVDS Output Mode Timing All Outputs Are Differential and Have LVDS Levels
tAP ANALOG N N + 2 N + 4 INPUT N + 3 tH N + 1 tL ENC– ENC+ tD tD D0_1+ D0N-5 D1N-5 D0N-4 D1N-4 D0N-3 D1N-3 D0N-2 D1N-2 D0_1– ••• D10_11+ D10N-5 D11N-5 D10N-4 D11N-4 D10N-3 D11N-3 D10N-2 D11N-2 D10_11– OF+ OFN-5 OFN-4 OFN-3 OFN-3 OF– tC tC CLKOUT+ CLKOUT– 225812 TD03
SPI Port Timing (Readback Mode)
tS tDS tDH tSCK tH CS SCK tDO SDI R/W A6 A5 A4 A3 A2 A1 A0 XX XX XX XX XX XX XX XX SDO D7 D6 D5 D4 D3 D2 D1 D0 HIGH IMPEDANCE
SPI Port Timing (Write Mode)
CS SCK SDI R/W A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 SDO 225812 TD04 HIGH IMPEDANCE 225812fd For more information www.linear.com/LTC2258-12 9 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configurations Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
