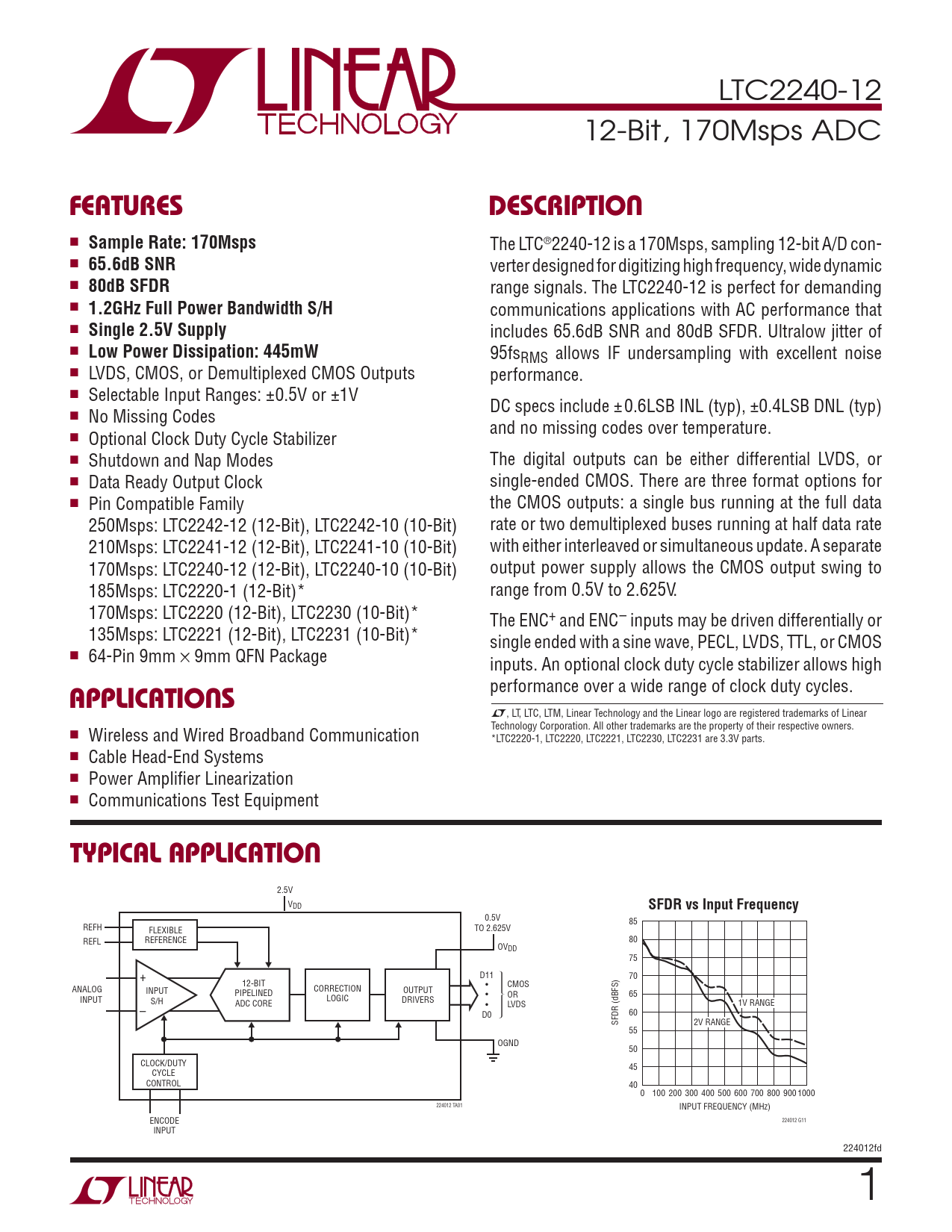

Datasheet LTC2240-12 (Analog Devices)

LTC2240-12 12-Bit, 170Msps ADC
FEATURES DESCRIPTION
n
Sample Rate: 170Msps
The LTC®2240-12 is a 170Msps, sampling 12-bit A/D con- n
65.6dB SNR
verter designed for digitizing high frequency, wide dynamic n
80dB SFDR
range signals. The LTC2240-12 is perfect for demanding n
1.2GHz Full Power Bandwidth S/H
communications applications with AC performance that n
Single 2.5V Supply
includes 65.6dB SNR and 80dB SFDR. Ultralow jitter of n
Low Power Dissipation: 445mW
95fsRMS allows IF undersampling with excellent noise n LVDS, CMOS, or Demultiplexed CMOS Outputs performance. n Selectable Input Ranges: ±0.5V or ±1V DC specs include ±0.6LSB INL (typ), ±0.4LSB DNL (typ) n No Missing Codes and no missing codes over temperature. n Optional Clock Duty Cycle Stabilizer n Shutdown and Nap Modes The digital outputs can be either differential LVDS, or n Data Ready Output Clock single-ended CMOS. There are three format options for n Pin Compatible Family the CMOS outputs: a single bus running at the full data 250Msps: LTC2242-12 (12-Bit), LTC2242-10 (10-Bit) rate or two demultiplexed buses running at half data rate 210Msps: LTC2241-12 (12-Bit), LTC2241-10 (10-Bit) with either interleaved or simultaneous update. A separate 170Msps: LTC2240-12 (12-Bit), LTC2240-10 (10-Bit) output power supply allows the CMOS output swing to 185Msps: LTC2220-1 (12-Bit)* range from 0.5V to 2.625V. 170Msps: LTC2220 (12-Bit), LTC2230 (10-Bit)* The ENC+ and ENC– inputs may be driven differentially or 135Msps: LTC2221 (12-Bit), LTC2231 (10-Bit)* single ended with a sine wave, PECL, LVDS, TTL, or CMOS n 64-Pin 9mm × 9mm QFN Package inputs. An optional clock duty cycle stabilizer allows high performance over a wide range of clock duty cycles.
APPLICATIONS
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Wireless and Wired Broadband Communication *LTC2220-1, LTC2220, LTC2221, LTC2230, LTC2231 are 3.3V parts. n Cable Head-End Systems n Power Amplifi er Linearization n Communications Test Equipment
TYPICAL APPLICATION
2.5V VDD
SFDR vs Input Frequency
0.5V 85 REFH FLEXIBLE TO 2.625V REFL REFERENCE 80 OVDD 75 + D11 70 12-BIT • CMOS ANALOG INPUT CORRECTION OUTPUT PIPELINED • OR 65 INPUT S/H LOGIC DRIVERS ADC CORE • LVDS 1V RANGE – D0 60 SFDR (dBFS) 2V RANGE 55 OGND 50 CLOCK/DUTY 45 CYCLE CONTROL 40 0 100 200 300 400 500 600 700 800 9001000 224012 TA01 INPUT FREQUENCY (MHz) ENCODE 224012 G11 INPUT 224012fd 1 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION CONVERTER CHARACTERISTICS ANALOG INPUT DYNAMIC ACCURACY INTERNAL REFERENCE CHARACTERISTICS DIGITAL INPUTS AND DIGITAL OUTPUTS POWER REQUIREMENTS TIMING CHARACTERISTICS ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS FUNCTIONAL BLOCK DIAGRAM TIMING DIAGRAMS APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY RELATED PARTS
