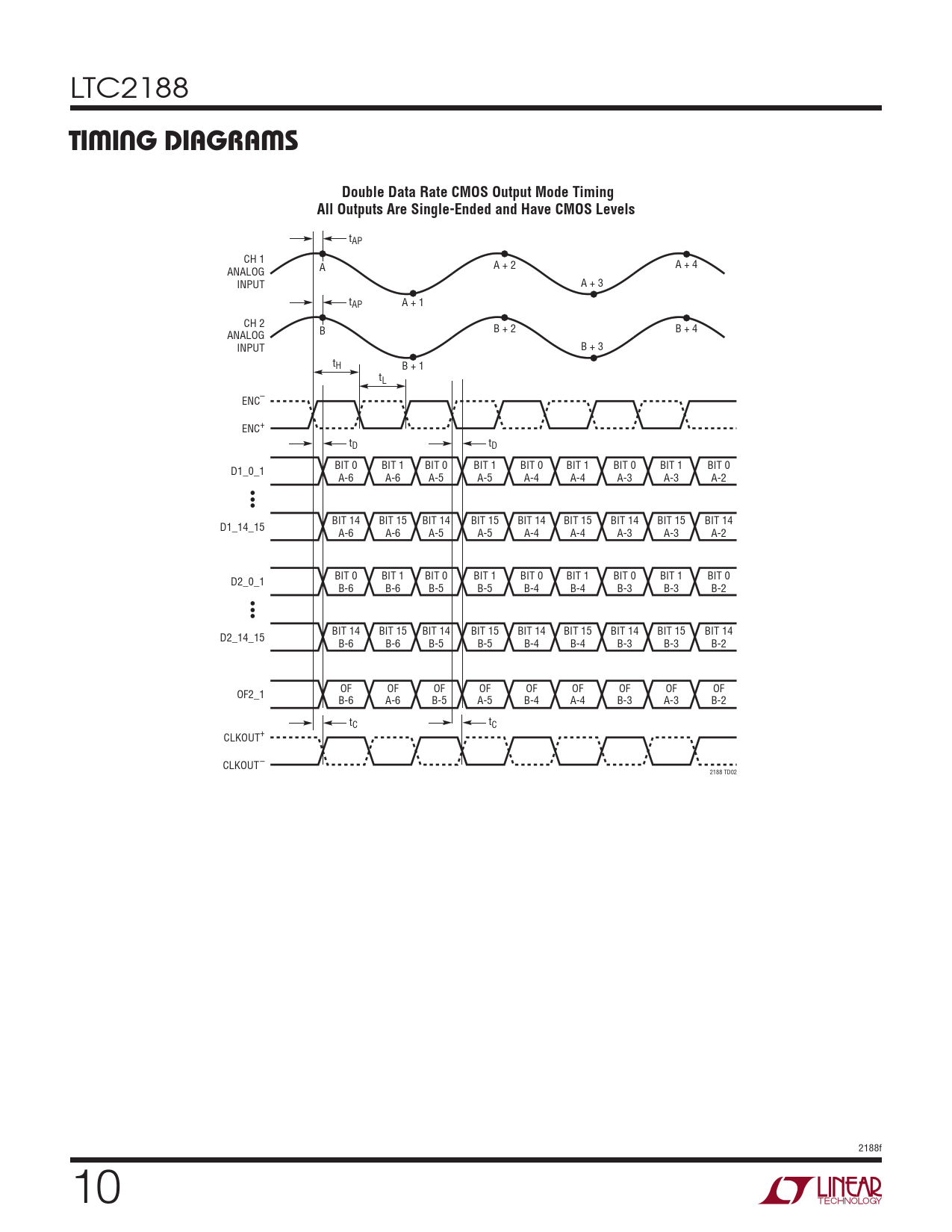

TiMing DiagraMs. Double Data Rate CMOS Output Mode Timing. All Outputs Are Single-Ended and Have CMOS Levels
