Datasheet LTC2152-14, LTC2151-14, LTC2150-14 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | Single 14-Bit 250Msps ADCs |
| Páginas / Página | 32 / 9 — TYPICAL PERFORMANCE CHARACTERISTICS. LTC2151-14: Integral Nonlinearity. … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |
TYPICAL PERFORMANCE CHARACTERISTICS. LTC2151-14: Integral Nonlinearity. LTC2151-14: Differential Nonlinearity
Línea de modelo para esta hoja de datos
- LTC2150CUJ-14#PBF LTC2150CUJ-14#PBF LTC2150CUJ-14#TRPBF LTC2150CUJ-14#TRPBF LTC2150IUJ-14#PBF LTC2150IUJ-14#PBF LTC2150IUJ-14#TRPBF LTC2150IUJ-14#TRPBF
Versión de texto del documento
LTC2152-14/ LTC2151-14/LTC2150-14

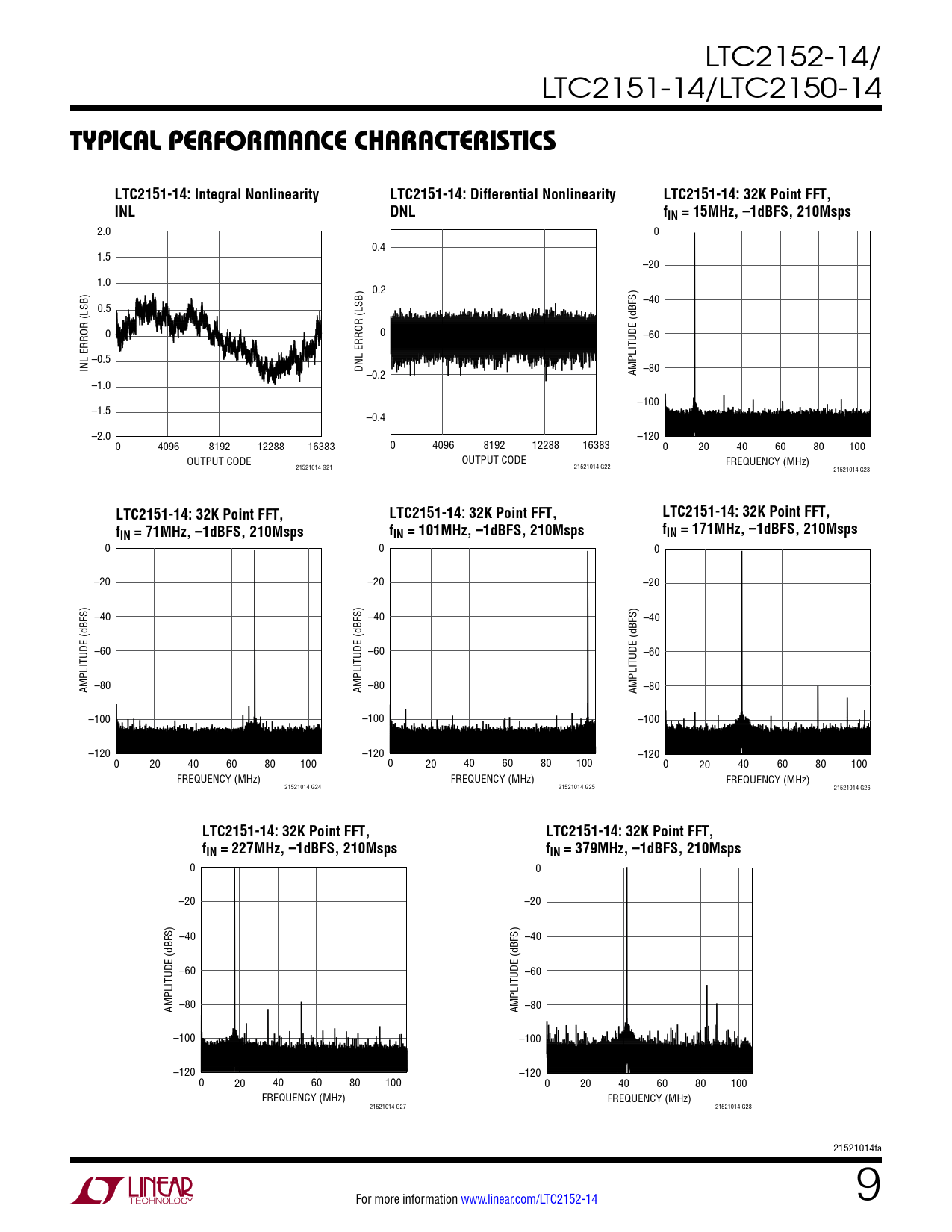

TYPICAL PERFORMANCE CHARACTERISTICS LTC2151-14: Integral Nonlinearity LTC2151-14: Differential Nonlinearity LTC2151-14: 32K Point FFT, INL DNL fIN = 15MHz, –1dBFS, 210Msps
2.0 0 0.4 1.5 –20 1.0 0.2 –40 0.5 0 0 –60 –0.5 INL ERROR (LSB) DNL ERROR (LSB) –0.2 AMPLITUDE (dBFS) –80 –1.0 –100 –1.5 –0.4 –2.0 –120 0 4096 8192 12288 16383 0 4096 8192 12288 16383 0 20 40 60 80 100 OUTPUT CODE OUTPUT CODE FREQUENCY (MHz) 21521014 G21 21521014 G22 21521014 G23
LTC2151-14: 32K Point FFT, LTC2151-14: 32K Point FFT, LTC2151-14: 32K Point FFT, fIN = 71MHz, –1dBFS, 210Msps fIN = 101MHz, –1dBFS, 210Msps fIN = 171MHz, –1dBFS, 210Msps
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 –100 –100 –100 –120 –120 –120 0 20 40 60 80 100 0 20 40 60 80 100 0 20 40 60 80 100 FREQUENCY (MHz) FREQUENCY (MHz) FREQUENCY (MHz) 21521014 G24 21521014 G25 21521014 G26
LTC2151-14: 32K Point FFT, LTC2151-14: 32K Point FFT, fIN = 227MHz, –1dBFS, 210Msps fIN = 379MHz, –1dBFS, 210Msps
0 0 –20 –20 –40 –40 –60 –60 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 –100 –100 –120 –120 0 20 40 60 80 100 0 20 40 60 80 100 FREQUENCY (MHz) FREQUENCY (MHz) 21521014 G27 21521014 G28 21521014fa For more information www.linear.com/LTC2152-14 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Power Requirements Digital Inputs And Outputs Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
