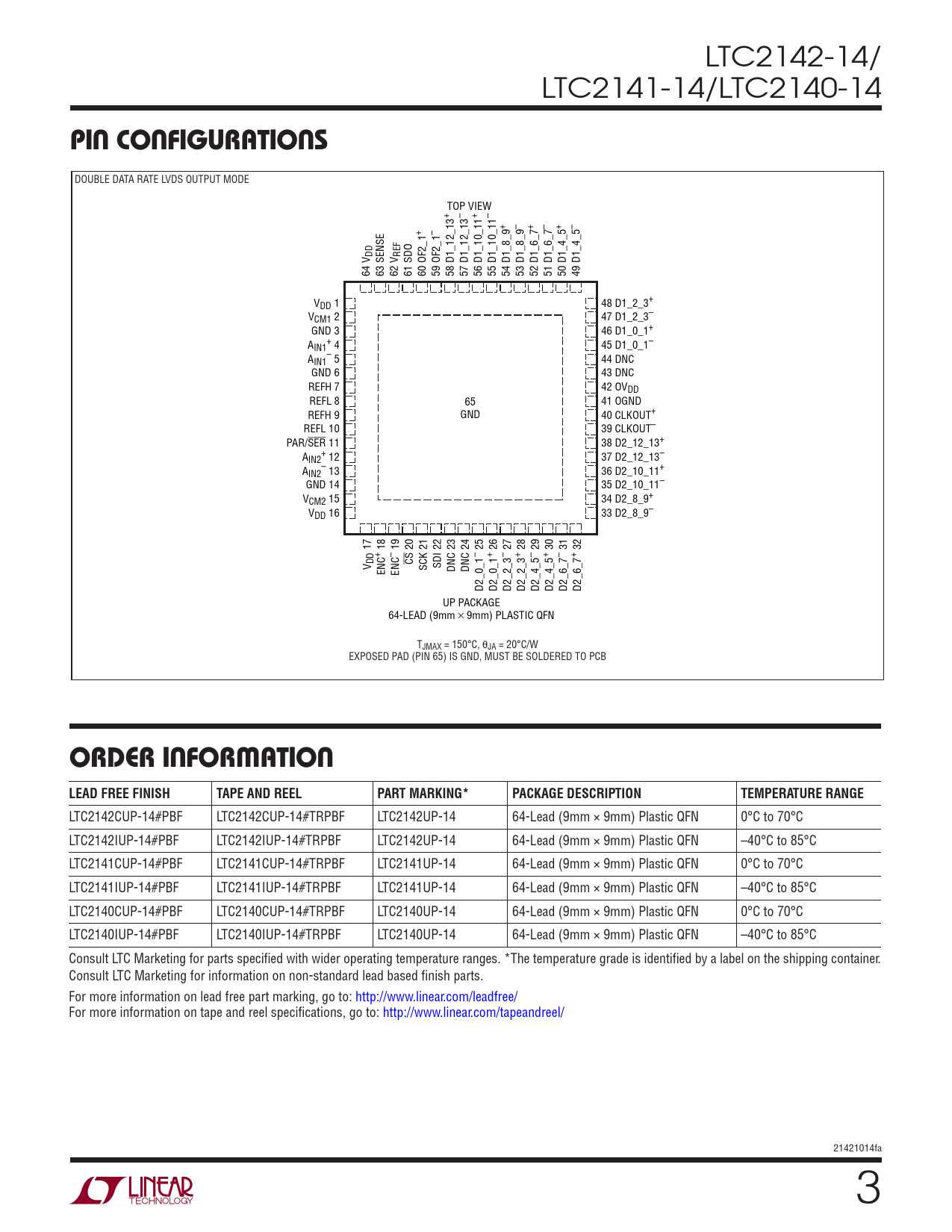

LTC2142-14/ LTC2141-14/LTC2140-14
PIN CONFIGURATIONS
DOUBLE DATA RATE LVDS OUTPUT MODE TOP VIEW + – + – + – + – + – + – DD REF 64 V 63 SENSE 62 V 61 SDO 60 OF2_1 59 OF2_1 58 D1_12_13 57 D1_12_13 56 D1_10_11 55 D1_10_11 54 D1_8_9 53 D1_8_9 52 D1_6_7 51 D1_6_7 50 D1_4_5 49 D1_4_5 VDD 1 48 D1_2_3+ VCM1 2 47 D1_2_3– GND 3 46 D1_0_1+ A + IN1 4 45 D1_0_1– A – IN1 5 44 DNC GND 6 43 DNC REFH 7 42 OVDD REFL 8 65 41 OGND REFH 9 GND 40 CLKOUT+ REFL 10 39 CLKOUT– PAR/SER 11 38 D2_12_13+ A + IN2 12 37 D2_12_13– A – IN2 13 36 D2_10_11+ GND 14 35 D2_10_11– VCM2 15 34 D2_8_9+ VDD 16 33 D2_8_9– 17 18 19 20 25 26 27 28 29 30 31 32 + – – + – + – + – + DD CS V ENC ENC SCK 21 SDI 22 DNC 23 DNC 24 D2_0_1 D2_0_1 D2_2_3 D2_2_3 D2_4_5 D2_4_5 D2_6_7 D2_6_7 UP PACKAGE 64-LEAD (9mm s 9mm) PLASTIC QFN TJMAX = 150°C, θJA = 20°C/W EXPOSED PAD (PIN 65) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2142CUP-14#PBF LTC2142CUP-14#TRPBF LTC2142UP-14 64-Lead (9mm × 9mm) Plastic QFN 0°C to 70°C LTC2142IUP-14#PBF LTC2142IUP-14#TRPBF LTC2142UP-14 64-Lead (9mm × 9mm) Plastic QFN –40°C to 85°C LTC2141CUP-14#PBF LTC2141CUP-14#TRPBF LTC2141UP-14 64-Lead (9mm × 9mm) Plastic QFN 0°C to 70°C LTC2141IUP-14#PBF LTC2141IUP-14#TRPBF LTC2141UP-14 64-Lead (9mm × 9mm) Plastic QFN –40°C to 85°C LTC2140CUP-14#PBF LTC2140CUP-14#TRPBF LTC2140UP-14 64-Lead (9mm × 9mm) Plastic QFN 0°C to 70°C LTC2140IUP-14#PBF LTC2140IUP-14#TRPBF LTC2140UP-14 64-Lead (9mm × 9mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 21421014fa 3
