Datasheet LTC1594, LTC1598 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 8-Channel, Micropower Sampling 12-Bit Serial I/O A/D Converter |
| Páginas / Página | 24 / 1 — FEATURES. DESCRIPTIO. APPLICATIO S. TYPICAL APPLICATIO. W, 4-Channel, … |
| Formato / tamaño de archivo | PDF / 246 Kb |
| Idioma del documento | Inglés |
FEATURES. DESCRIPTIO. APPLICATIO S. TYPICAL APPLICATIO. W, 4-Channel, 12-Bit ADC Samples at 200Hz and Runs Off a 5V Supply
Línea de modelo para esta hoja de datos
Versión de texto del documento

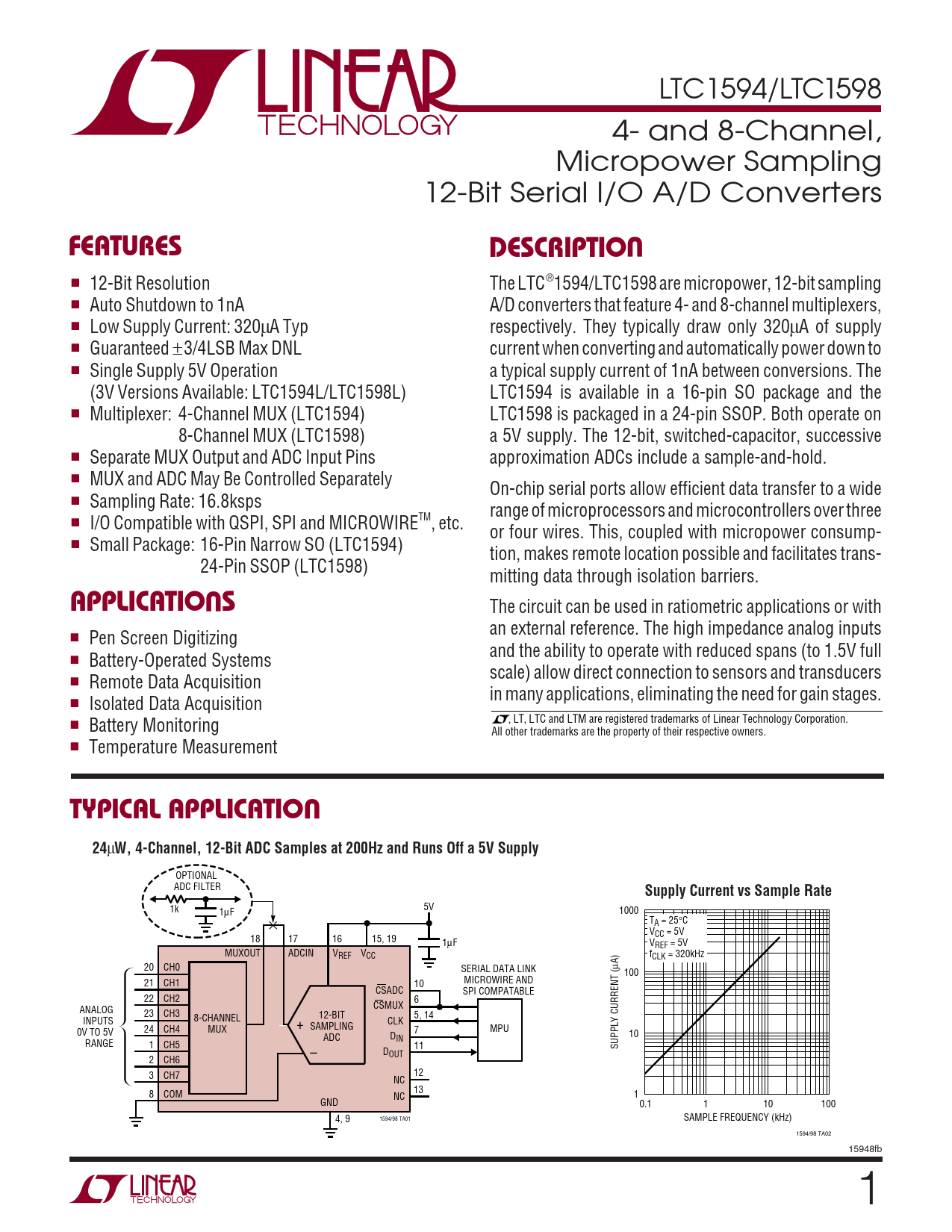

LTC1594/LTC1598 4- and 8-Channel, Micropower Sampling 12-Bit Serial I/O A/D Converters
U FEATURES DESCRIPTIO
■ 12-Bit Resolution The LTC®1594/LTC1598 are micropower, 12-bit sampling ■ Auto Shutdown to 1nA A/D converters that feature 4- and 8-channel multiplexers, ■ Low Supply Current: 320μA Typ respectively. They typically draw only 320μA of supply ■ Guaranteed ±3/4LSB Max DNL current when converting and automatically power down to ■ Single Supply 5V Operation a typical supply current of 1nA between conversions. The (3V Versions Available: LTC1594L/LTC1598L) LTC1594 is available in a 16-pin SO package and the ■ Multiplexer: 4-Channel MUX (LTC1594) LTC1598 is packaged in a 24-pin SSOP. Both operate on 8-Channel MUX (LTC1598) a 5V supply. The 12-bit, switched-capacitor, successive ■ Separate MUX Output and ADC Input Pins approximation ADCs include a sample-and-hold. ■ MUX and ADC May Be Controlled Separately On-chip serial ports allow efficient data transfer to a wide ■ Sampling Rate: 16.8ksps range of microprocessors and microcontrollers over three ■ I/O Compatible with QSPI, SPI and MICROWIRETM, etc. or four wires. This, coupled with micropower consump- ■ Small Package: 16-Pin Narrow SO (LTC1594) tion, makes remote location possible and facilitates trans- 24-Pin SSOP (LTC1598) mitting data through isolation barriers.
U APPLICATIO S
The circuit can be used in ratiometric applications or with an external reference. The high impedance analog inputs ■ Pen Screen Digitizing and the ability to operate with reduced spans (to 1.5V full ■ Battery-Operated Systems scale) allow direct connection to sensors and transducers ■ Remote Data Acquisition in many applications, eliminating the need for gain stages. ■ Isolated Data Acquisition ■ Battery Monitoring , LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. ■ Temperature Measurement
U TYPICAL APPLICATIO 24
μ
W, 4-Channel, 12-Bit ADC Samples at 200Hz and Runs Off a 5V Supply
OPTIONAL ADC FILTER
Supply Current vs Sample Rate
1k 5V 1μF 1000 TA = 25°C V 18 17 16 15, 19 CC = 5V 1μF VREF = 5V MUXOUT ADCIN VREF VCC fCLK = 320kHz 20 CH0 SERIAL DATA LINK μA) 100 21 CH1 MICROWIRE AND 10 CSADC SPI COMPATABLE 22 CH2 6 ANALOG CSMUX 23 CH3 12-BIT 5, 14 INPUTS 8-CHANNEL + CLK SAMPLING 0V TO 5V 24 CH4 MUX 7 MPU ADC D 10 RANGE IN 1 CH5 11 SUPPLY CURRENT ( – DOUT 2 CH6 3 CH7 12 NC 8 COM 13 NC 1 GND 0.1 1 10 100 1594/98 TA01 4, 9 SAMPLE FREQUENCY (kHz) 1594/98 TA02 15948fb 1
