Datasheet LTC1418 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Low Power, 14-Bit, 200ksps ADC with Serial and Parallel I/O |
| Páginas / Página | 30 / 2 — ABSOLUTE MAXIMUM RATINGS. PACKAGE/ORDER INFORMATION. (Note 1, 2). … |
| Formato / tamaño de archivo | PDF / 486 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PACKAGE/ORDER INFORMATION. (Note 1, 2). OBSOLETE PACKAGE. ORDER INFORMATION LEAD FREE FINISH
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC1418

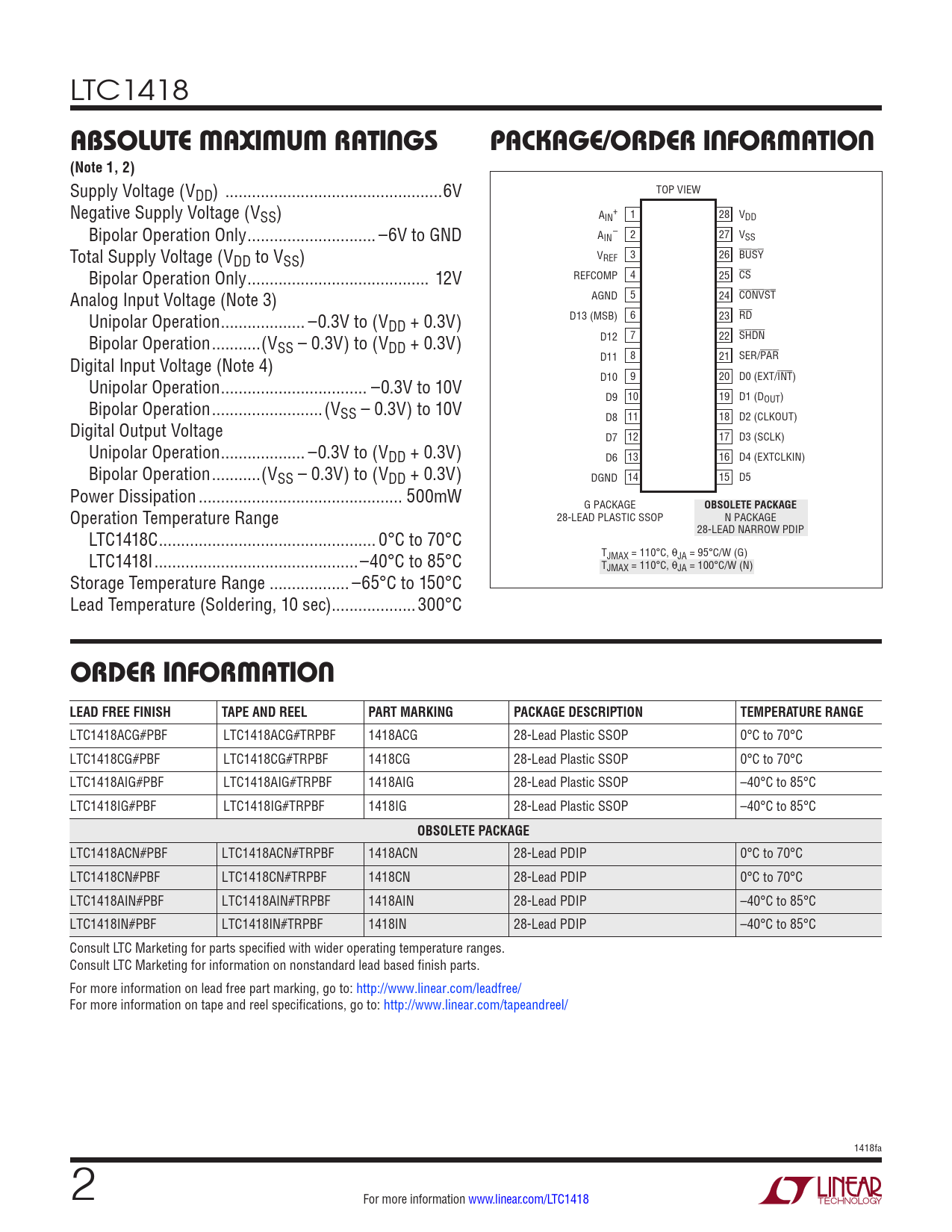

ABSOLUTE MAXIMUM RATINGS PACKAGE/ORDER INFORMATION (Note 1, 2)
Supply Voltage (VDD) ...6V TOP VIEW Negative Supply Voltage (VSS) A + 1 28 IN VDD Bipolar Operation Only ... –6V to GND A – 2 27 IN VSS Total Supply Voltage (VDD to VSS) V 3 26 REF BUSY Bipolar Operation Only ... 12V REFCOMP 4 25 CS Analog Input Voltage (Note 3) AGND 5 24 CONVST Unipolar Operation ... –0.3V to (V D13 (MSB) 6 23 RD DD + 0.3V) Bipolar Operation ...(V D12 7 22 SHDN SS – 0.3V) to (VDD + 0.3V) Digital Input Voltage (Note 4) D11 8 21 SER/PAR Unipolar Operation ... –0.3V to 10V D10 9 20 D0 (EXT/INT) D9 10 19 D1 (D Bipolar Operation ...(V OUT) SS – 0.3V) to 10V D8 11 18 D2 (CLKOUT) Digital Output Voltage D7 12 17 D3 (SCLK) Unipolar Operation ... –0.3V to (VDD + 0.3V) D6 13 16 D4 (EXTCLKIN) Bipolar Operation ...(VSS – 0.3V) to (VDD + 0.3V) DGND 14 15 D5 Power Dissipation .. 500mW G PACKAGE
OBSOLETE PACKAGE
Operation Temperature Range 28-LEAD PLASTIC SSOP N PACKAGE LTC1418C ... 0°C to 70°C 28-LEAD NARROW PDIP LTC1418I ..–40°C to 85°C TJMAX = 110°C, θJA = 95°C/W (G) TJMAX = 110°C, θJA = 100°C/W (N) Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1418ACG#PBF LTC1418ACG#TRPBF 1418ACG 28-Lead Plastic SSOP 0°C to 70°C LTC1418CG#PBF LTC1418CG#TRPBF 1418CG 28-Lead Plastic SSOP 0°C to 70°C LTC1418AIG#PBF LTC1418AIG#TRPBF 1418AIG 28-Lead Plastic SSOP –40°C to 85°C LTC1418IG#PBF LTC1418IG#TRPBF 1418IG 28-Lead Plastic SSOP –40°C to 85°C
OBSOLETE PACKAGE
LTC1418ACN#PBF LTC1418ACN#TRPBF 1418ACN 28-Lead PDIP 0°C to 70°C LTC1418CN#PBF LTC1418CN#TRPBF 1418CN 28-Lead PDIP 0°C to 70°C LTC1418AIN#PBF LTC1418AIN#TRPBF 1418AIN 28-Lead PDIP –40°C to 85°C LTC1418IN#PBF LTC1418IN#TRPBF 1418IN 28-Lead PDIP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1418fa 2 For more information www.linear.com/LTC1418 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Package/Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Typical Performance Characteristics Pin Functions Test Circuit Block Diagram Applications Information Package Description Package Description Revision History Typical Application Related Parts
