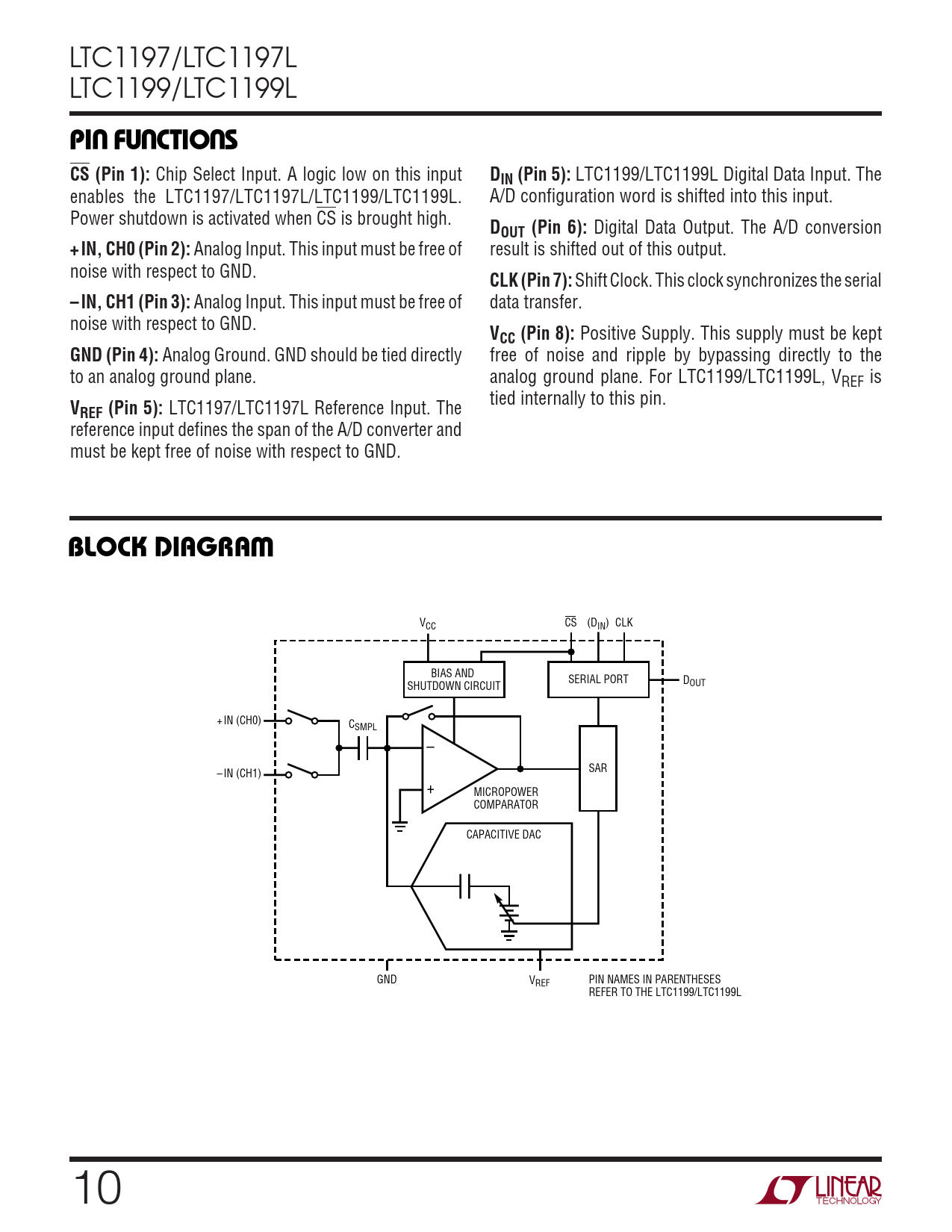

LTC1197/LTC1197L LTC1199/LTC1199L
U U U PI FU CTIO S CS (Pin 1):
Chip Select Input. A logic low on this input
DIN (Pin 5):
LTC1199/LTC1199L Digital Data Input. The enables the LTC1197/LTC1197L/LTC1199/LTC1199L. A/D configuration word is shifted into this input. Power shutdown is activated when CS is brought high.
DOUT (Pin 6):
Digital Data Output. The A/D conversion
+ IN, CH0 (Pin 2):
Analog Input. This input must be free of result is shifted out of this output. noise with respect to GND.
CLK (Pin 7):
Shift Clock. This clock synchronizes the serial
– IN, CH1 (Pin 3):
Analog Input. This input must be free of data transfer. noise with respect to GND.
VCC (Pin 8):
Positive Supply. This supply must be kept
GND (Pin 4):
Analog Ground. GND should be tied directly free of noise and ripple by bypassing directly to the to an analog ground plane. analog ground plane. For LTC1199/LTC1199L, VREF is tied internally to this pin.
VREF (Pin 5):
LTC1197/LTC1197L Reference Input. The reference input defines the span of the A/D converter and must be kept free of noise with respect to GND.
W BLOCK DIAGRA
VCC CS (D CLK IN) BIAS AND SERIAL PORT D SHUTDOWN CIRCUIT OUT + IN (CH0) CSMPL – SAR – IN (CH1) + MICROPOWER COMPARATOR CAPACITIVE DAC GND VREF PIN NAMES IN PARENTHESES REFER TO THE LTC1199/LTC1199L 10
