Datasheet OP470 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Low Noise Quad Op Amp |
| Páginas / Página | 17 / 4 — OP470. (at VS =. 15 V, –55. 125. C for OP470A, unless otherwise noted.). … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 888 Kb |
| Idioma del documento | Inglés |

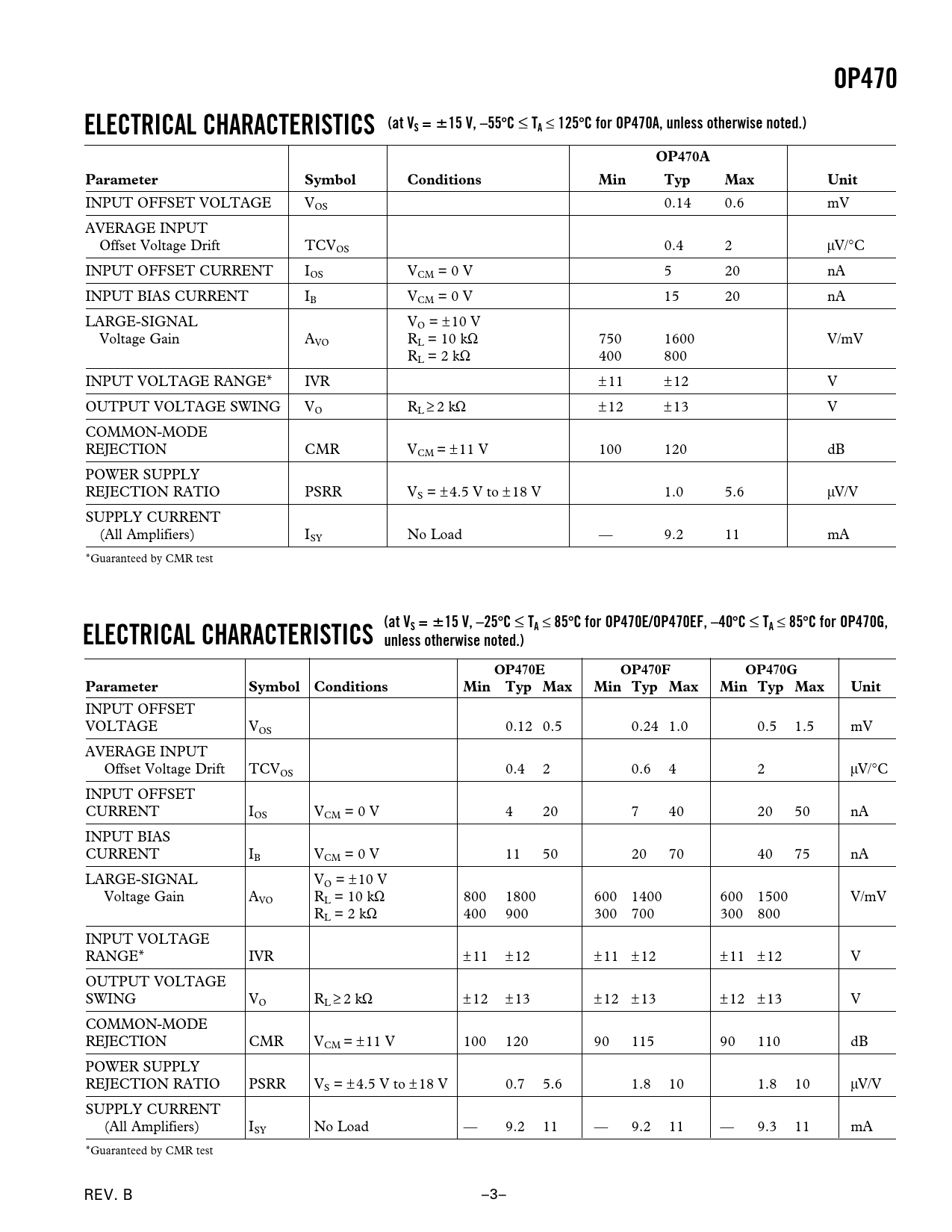

OP470. (at VS =. 15 V, –55. 125. C for OP470A, unless otherwise noted.). ELECTRICAL CHARACTERISTICS. OP470A. Parameter. Symbol
Línea de modelo para esta hoja de datos
OP470
Versión de texto del documento
OP470 (at VS = 15 V, –55 C
£
TA
£
125 C for OP470A, unless otherwise noted.) ELECTRICAL CHARACTERISTICS OP470A Parameter Symbol Conditions Min Typ Max Unit
INPUT OFFSET VOLTAGE VOS 0.14 0.6 mV AVERAGE INPUT Offset Voltage Drift TCVOS 0.4 2 mV/∞C INPUT OFFSET CURRENT IOS VCM = 0 V 5 20 nA INPUT BIAS CURRENT IB VCM = 0 V 15 20 nA LARGE-SIGNAL VO = ±10 V Voltage Gain AVO RL = 10 kW 750 1600 V/mV RL = 2 kW 400 800 INPUT VOLTAGE RANGE* IVR ±11 ±12 V OUTPUT VOLTAGE SWING VO RL ≥ 2 kW ±12 ±13 V COMMON-MODE REJECTION CMR VCM = ±11 V 100 120 dB POWER SUPPLY REJECTION RATIO PSRR VS = ± 4.5 V to ± 18 V 1.0 5.6 mV/V SUPPLY CURRENT (All Amplifiers) ISY No Load — 9.2 11 mA *Guaranteed by CMR test
(at VS = 15 V, –25 C
£
TA
£
85 C for OP470E/OP470EF, –40 C
£
TA
£
85 C for OP470G, ELECTRICAL CHARACTERISTICS unless otherwise noted.) OP470E OP470F OP470G Parameter Symbol Conditions Min Typ Max Min Typ Max Min Typ Max Unit
